The relay module can be used to switch the load directly via the receiver output. The receiver output must be programmed for level control (ON/OFF). (From receiver software version V7.XX)
A transmitter (mc-16 to mc-28 or mx-12 to mx-20/mz-18 and mz-24) can be assigned to the switching channel.
In the mz-32 and mc-32 models (version 2019), digital switches on the touch display can also be programmed as transmitters.
Both ON/OFF and BLINKEND

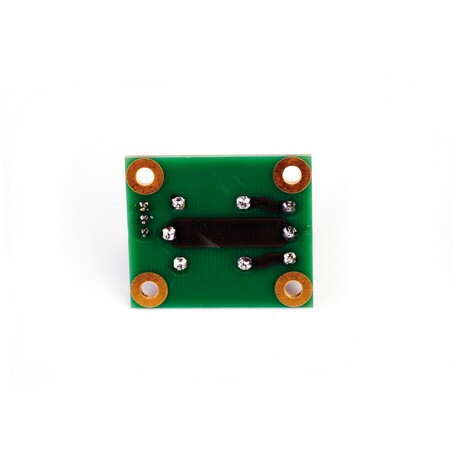

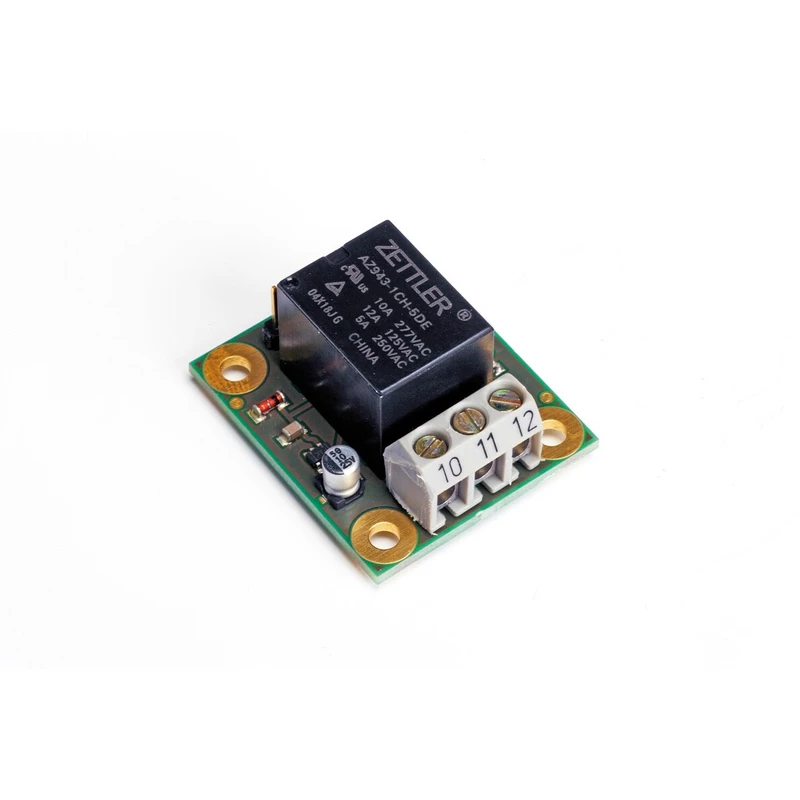

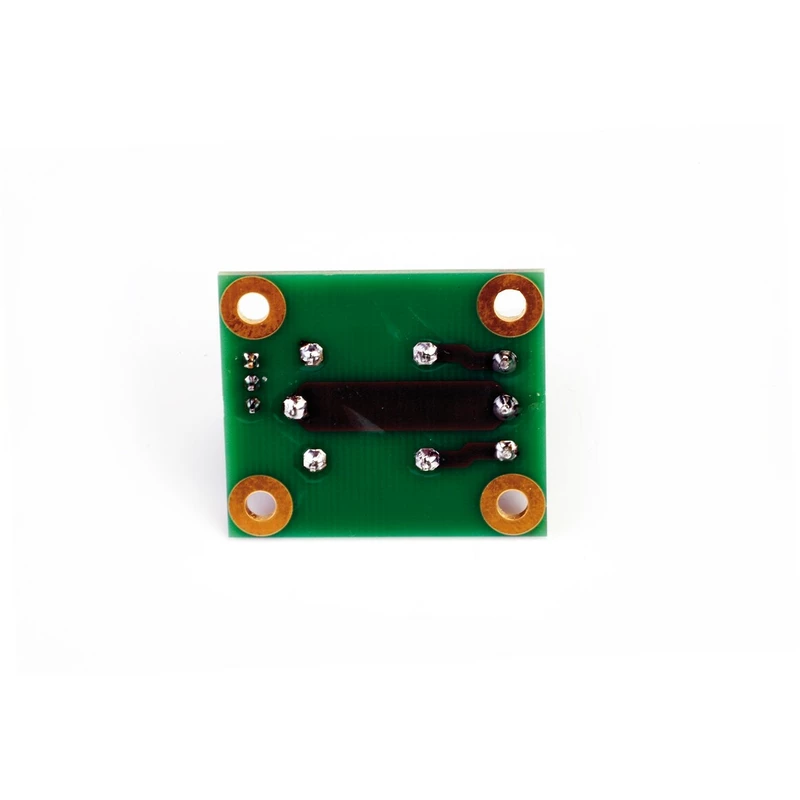

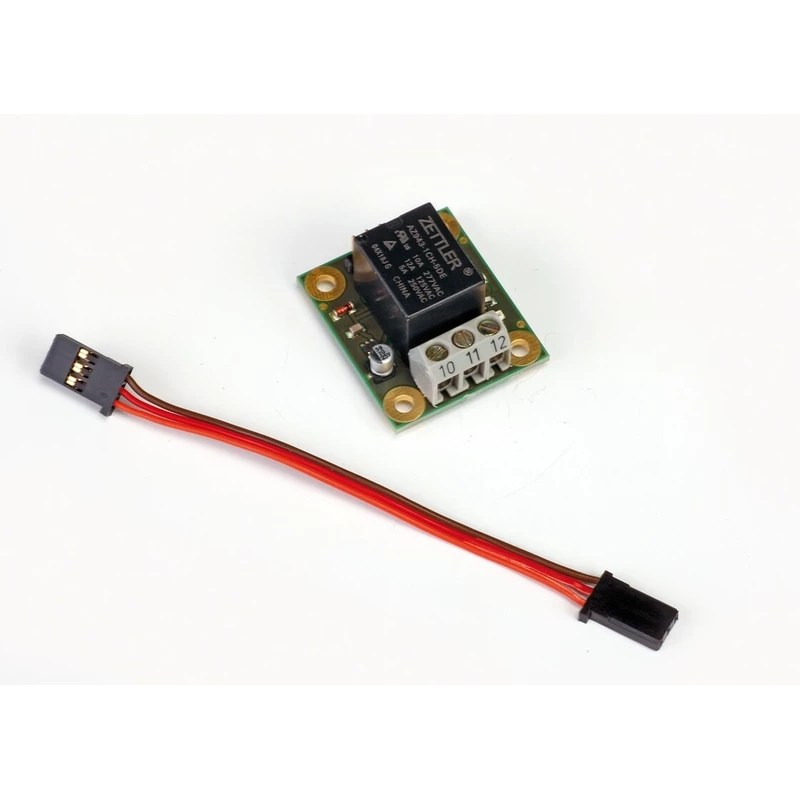

The control LED on the board indicates the switching status. The board can be mounted and screwed into the model using four holes. The included patch cable runs from the switching relay to the receiver output. The device is connected to a three-pole screw terminal. In the middle is the input. Above it is an opening contact, below it is a closing contact. If the LED is off, the opening contact is closed towards the input. If the LED is on, the opening contact is open towards the input. For the closing contact, it is exactly the opposite.
When controlling a motor (reel, seatposts, etc.), the polarity can be changed using two relay boards. In this case, two control channels are required on the receiver and two switches on the transmitter. Changing the polarity using a 3-way switch is not possible when controlling the level, because the channel only switches ON/OFF, i.e. +/-100%.
