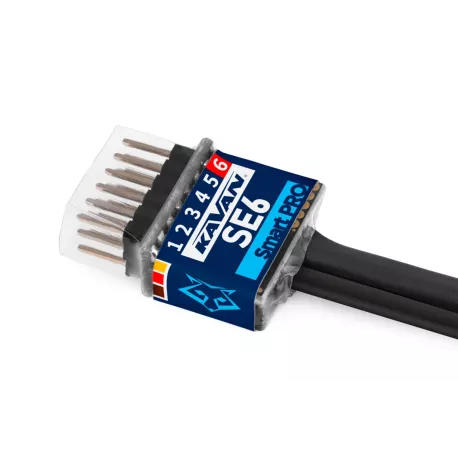

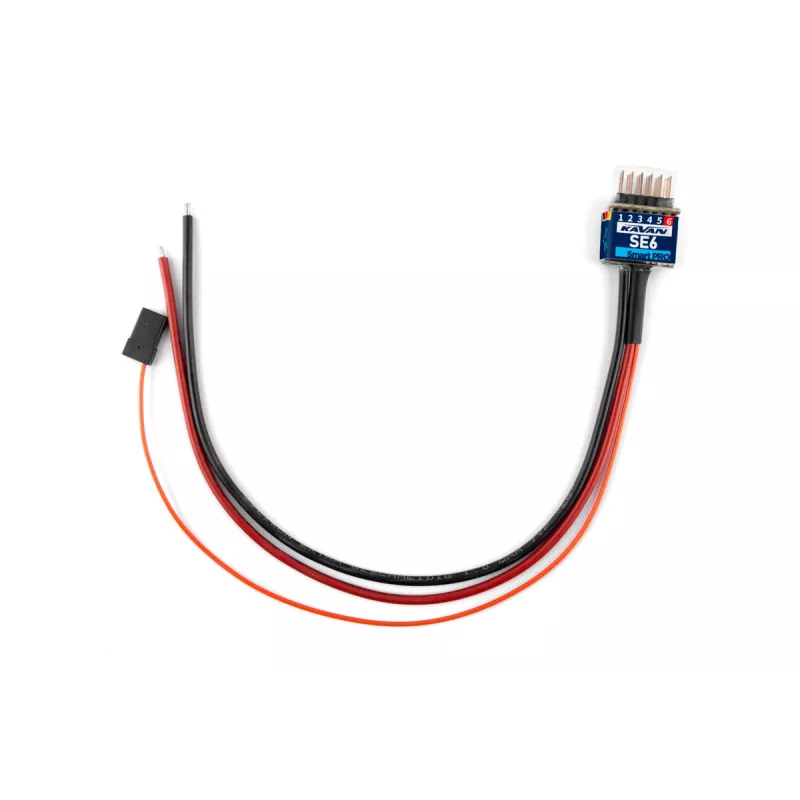

The KAVAN Smart PRO SE6 is a decoder/expander that converts a serial bus input signal to standard servo outputs (PWM). It offers up to six configurable servo outputs with selectable period and fail-safe settings. The SE6 is the perfect choice for models with complex wing or tail mechanics, where multiple servos can be connected to the primary receiver using a single cable. If you run out of channels on your receiver, simply connect the SE6 to the serial line from the receiver and freely assign your own output channels. The SE6 does not have an input connector.
Supported protocols:
Package includes: Servo decoder/expander SE6, instructions.
KAVAN Smart PRO SE6 6ch BUS servo decoder is manufactured in the Czech Republic by MAV Sense sro
Online user manual: wiki.kavanrc.com
| Power supply [V] | 4.8 - 8.4 |
| Current carrying capacity [mA] | 15000 - 0 |
| Length [mm] | 34 |
| Width [mm] | 19 |
| Height [mm] | 8 |
| Weight [g] | 4.5 |
