KAVAN C motors are powerful brushless fourteen-pole electric motors with a rotating casing ("outrunner") with excellent electrical properties, sophisticated construction and excellent production processing. They represent a very good choice for driving your recreational sports models with excellent performance parameters, good efficiency and a favorable price. They are low-speed, high-torque engines that can handle large-diameter propellers and climb without the need for a gearbox.
| Engine identification system: CxxYY-zzzz |
| C - AC motor with rotating casing ("outrunner", "orbit") |
| xx - motor diameter in mm |
| YY - motor length in mm |
| zzzz - number of revolutions per volt (rpm on V), "KV" |
KAVAN C3542-1250 is an AC motor designed to drive models with a flight weight of up to 2200 g and powered by a three-cell or four-cell Li-poly battery. Great for motor acrobatic models and models, such as Classic EP, Acromaster, Stinson EP, Piper Cub EP 1520 mm from Phoenix, fast two-meter motor gliders such as Filip 600 Sport, Multiplex Cularis, thermal gliders 2.5-3 m, etc.

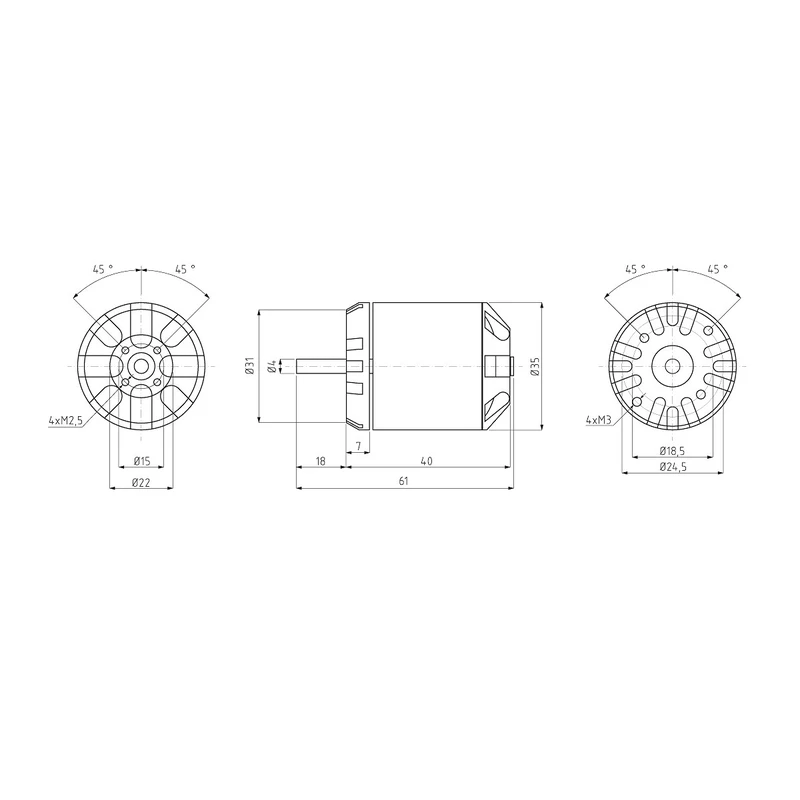

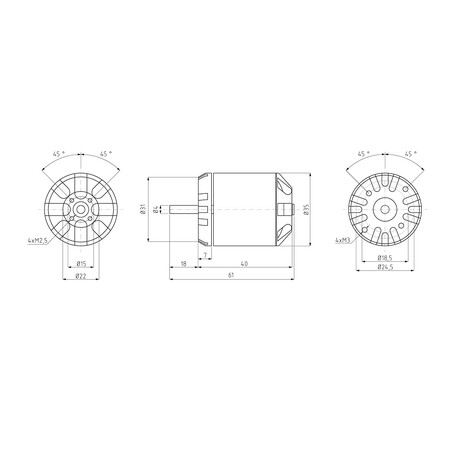

Engine mounting: KAVAN C3542-1250 is designed for front and rear mounting. When front mounting behind the front of the engine, use four M3 bolts that extend into the front of the engine by 4-5 mm. The pairs of holes for the fastening screws at the front of the engine are regularly spaced 180 ° on circles with a diameter of 25 and 19 mm. The engine bulkhead should be made of 4-5 mm plywood. The rear mounting kit (mounting cross, propeller carrier for rear assembly) is supplied with the engine.

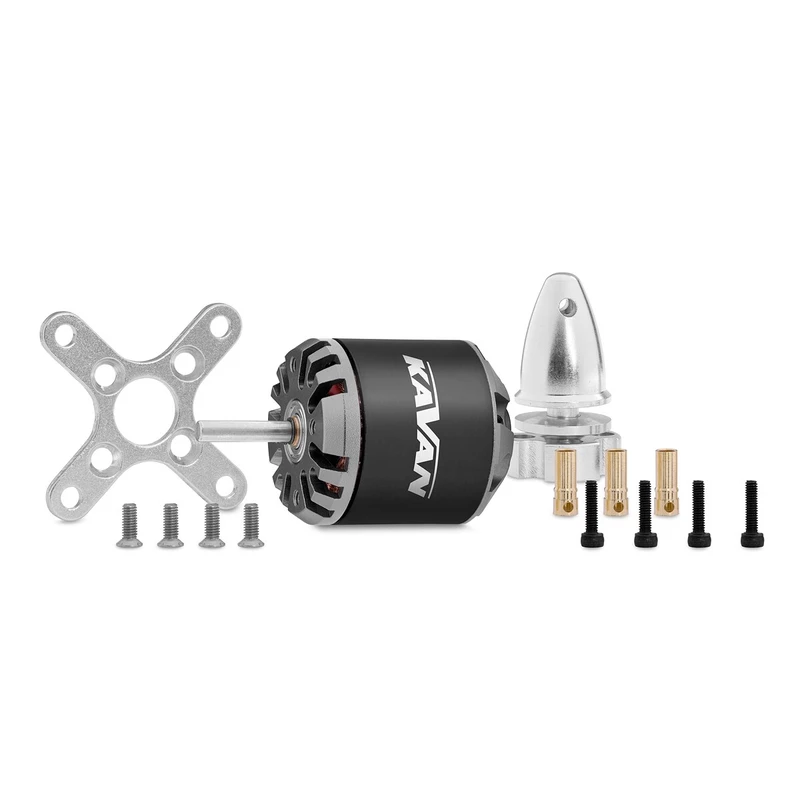

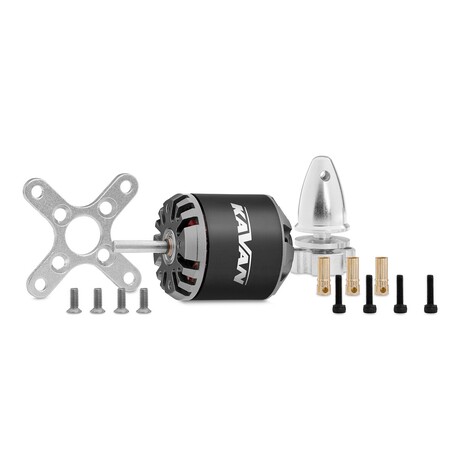

Motor set includes: motor C3542-1250 with cables with soldered 3.5 mm gold-plated connectors, rear mounting kit, instructions. / p>
| Power supply for LiXX cells | 3 - 4 |
| Volt Speed [rpm / V] | 1250 |
| Max. power (30 s / 4S LiPo) [W] | 610 |
| No-load current (3S) [A] | 3.6 |
| Max. peak current (30 s) [A] | 55 |
| Diameter [mm] | 35 |
| Length [mm] | 42 |
| Shaft diameter [mm] | 4 |
| Weight [g] | 140 |
| Number of poles | 14 |
| Timing [°] | 15 - 25 |
| Regulator [A] | 60 - 70 |
| Glider up to weight [g] | 2200 |
| Trainer up to weight [g] | 2100 |
| Acrobat up to weight [g] | 1800 |
| 3D to weight [g] | 1200 |
| Recommended propeller | 3S: 10x5-6 ” |
| 4S: 9x5-6 ” |
