KAVAN Brushless engine C3536-850
KAV30.0248
Kavan
Alternating electric motor with rotating casing for aircraft models: glider 1800g, trainer 1700g, acro 1300g, 3D 1050g, KV850 rpm on V, power supply Lixx 3-4s, shaft 4.0 mm.
Express delivery
Large selection of carriers
Satisfaction guarantee

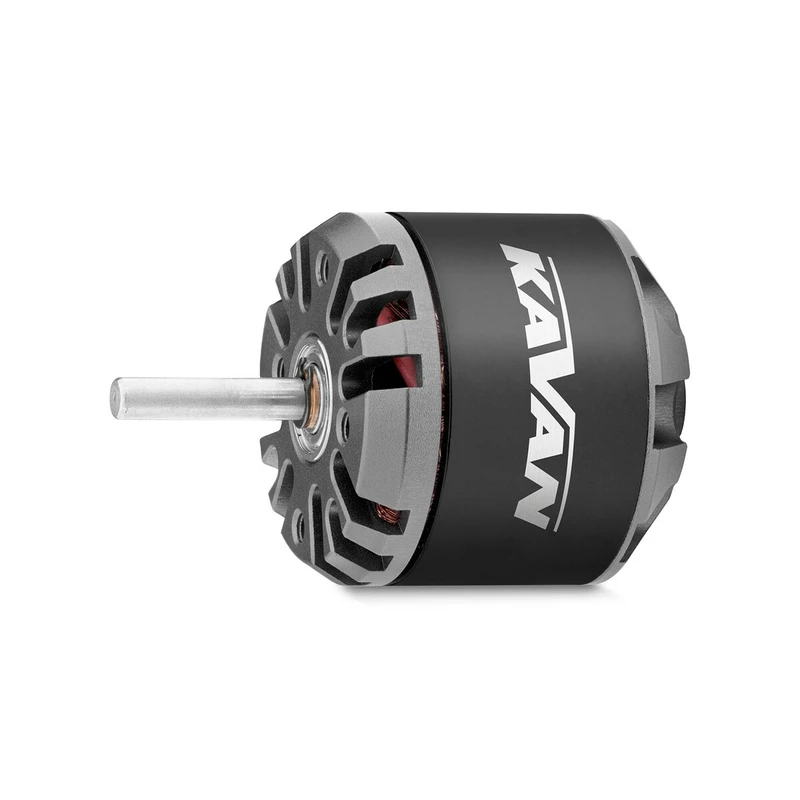

KAVAN C motors are powerful brushless fourteen-pole electric motors with a rotating casing ("outrunner") with excellent electrical properties, sophisticated construction and excellent production processing. They represent a very good choice for driving your recreational sports models with excellent performance parameters, good efficiency and a favorable price. They are low-speed, high-torque engines that can handle large-diameter propellers and climb without the need for a gearbox.
| Engine identification system: CxxYY-zzzz |
| C - AC motor with rotating casing ("outrunner", "orbit") |
| xx - motor diameter in mm |
| YY - motor length in mm |
| zzzz - number of revolutions per volt (rpm on V), "KV" |
KAVAN C3536-850 is an AC motor designed to drive models with a flight weight of up to 1800 g and powered by a three-cell or four-cell Li-poly battery. Great for models such as Multiplex Fun Cub, Solius, Heron, light thermal gliders up to 2500 mm, 3D acrobats - models that are suitable for large-diameter propellers with low speeds.

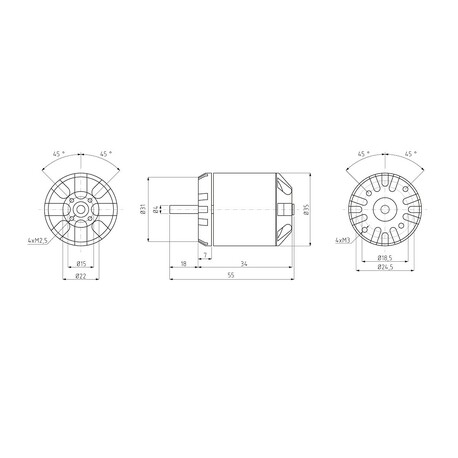

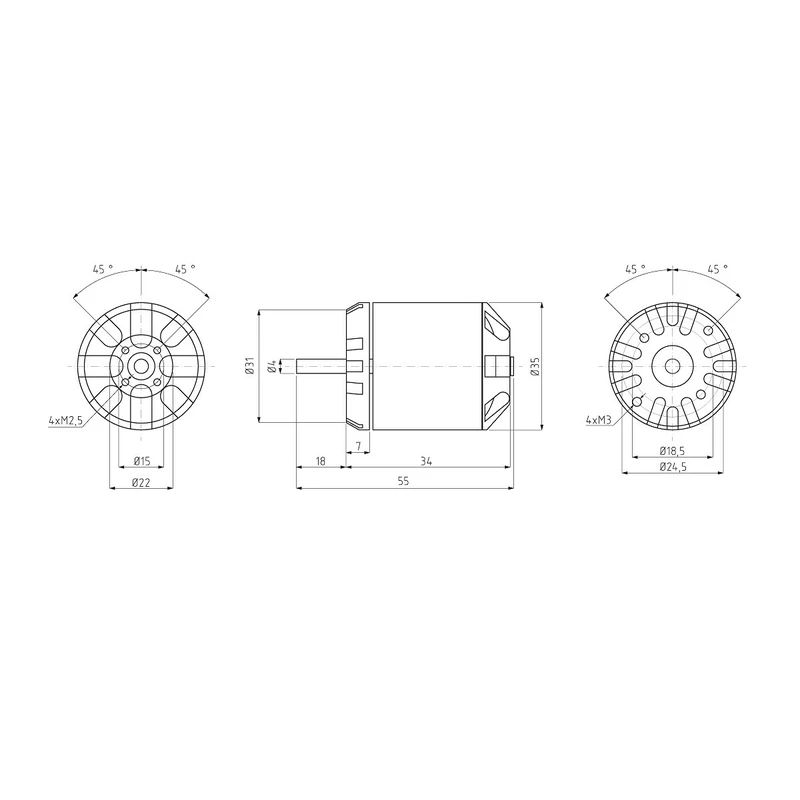

Engine mounting: KAVAN C3536-850 is designed for front and rear mounting. When front mounting behind the front of the engine, use four M3 bolts that extend into the front of the engine by 4-5 mm. The pairs of holes for the fastening screws at the front of the engine are regularly spaced 180 ° on circles with a diameter of 25 and 19 mm. The engine bulkhead should be made of 4 mm plywood. The rear mounting kit (mounting cross, propeller carrier for rear assembly) is supplied with the engine.

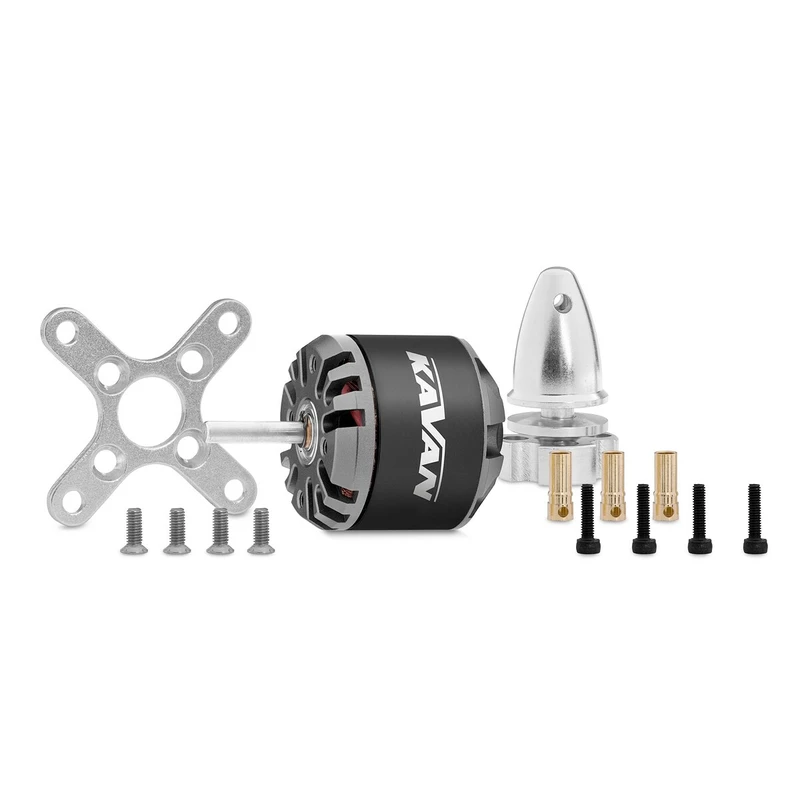

Engine set includes: C3536-850 motor with soldered 3.5 mm gold-plated connectors, rear mounting kit, instructions.
| Power supply for LiXX cells | 3 - 4 |
| Volt Speed [rpm/ min / V] | 850 |
| Max. power (30 s / 4S LiPo) [W] | 310 |
| No-load current (3S) [A] | 1.1 |
| Max. peak current (30 s) [A] | 28 |
| Diameter [mm] | 35 |
| Length [mm] | 36 |
| Shaft diameter [mm] | 4 |
| Weight [g] | 110 |
| Number of poles | 14 |
| Timing [°] | 15 - 25 |
| Regulator [A] | 35 - 45 |
| Glider up to weight [g] | 1800 |
| Trainer up to weight [g] | 1700 |
| Acrobat up to weight [g] | 1300 |
| 3D to weight [g] | 1050 |
| Recommended propeller | 3S: 13x6-7 ” |
| 4S: 11x5-6 ” |
Combo set of AC motor with rotating casing with 40A controller for aircraft models: glider 1800g, trainer 1700g, acro 1300g, 3D 1050g, KV850 rpm on V, Lixx 3-4s power supply, shaft 4.0mm.
