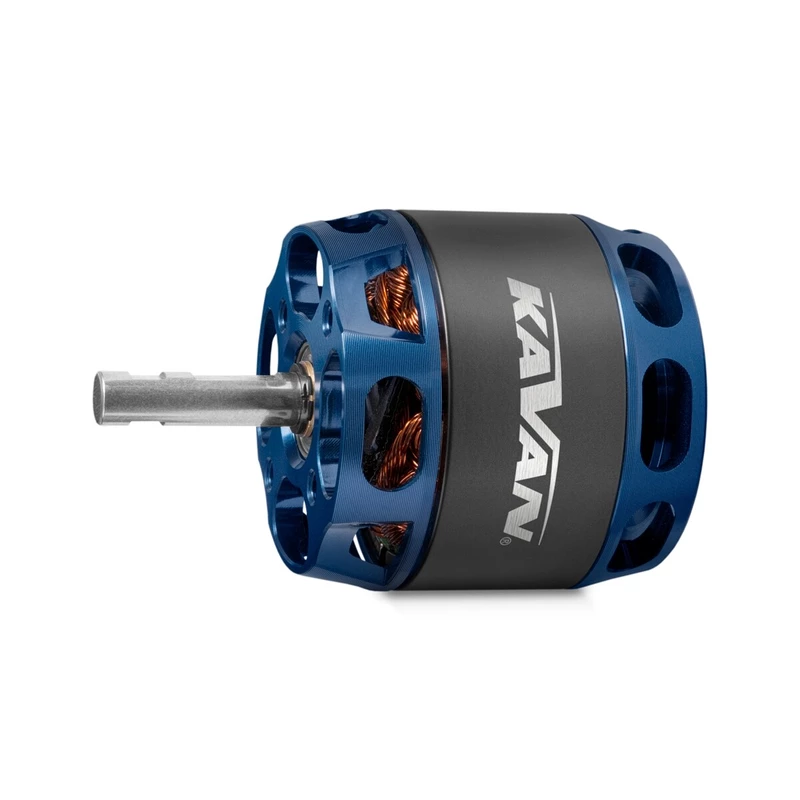

KAVAN Brushless Motor PRO 3536-850

KAVAN PRO motors are high-performance brushless fourteen-pole electric motors with a rotating casing ("outrunner") with excellent electrical properties, sophisticated construction and top-quality manufacturing. Shafts made of hardened steel and high-quality bearings ensure a long service life, quality materials used for the manufacture of the stator and rotor also guarantee excellent performance parameters with high efficiency. They are low-speed, high-torque engines that handle large-diameter propellers and climbs without the need for a gearbox.

CAVAN FOR 3536-850

KAVAN PRO 3536-850 is an AC motor designed to drive models with a flight weight of up to 1800 g with power from a three-cell to four-cell LiPo battery. Perfect for models like the MULTIPLEX® Fun Cub, light thermal gliders up to 2500mm like the Solius and Heron, 3D acrobats - models that suit a large diameter low speed propeller.

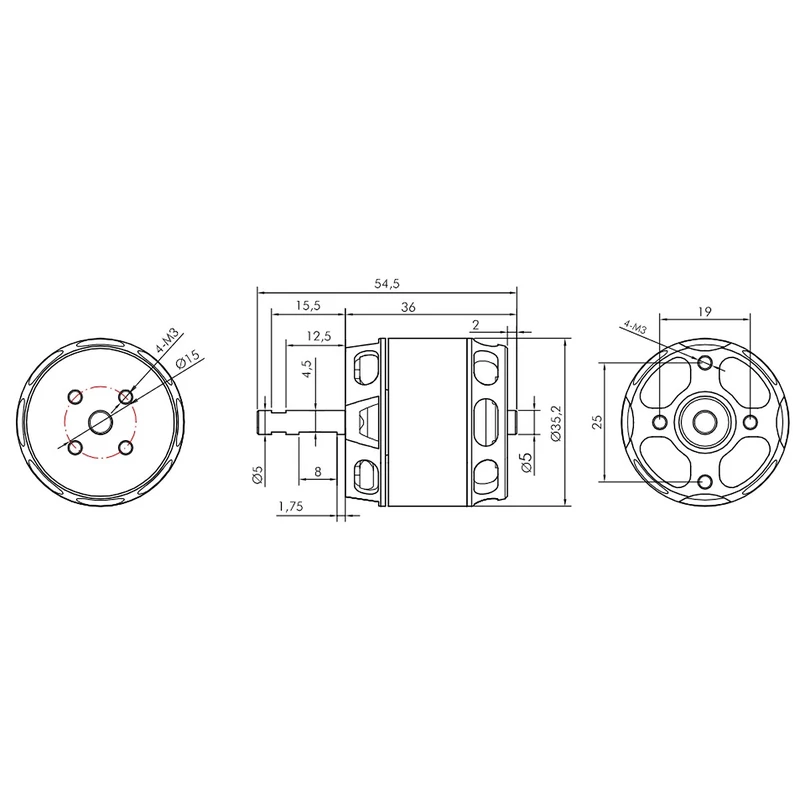

Engine Mounting: The KAVAN PRO 3536-850 is designed for both front and rear mounting. For front mounting behind the motor face, use four M3 screws that extend 3.5-4mm into the motor face. The engine bulkhead should be 4mm aircraft grade plywood. The rear mounting kit (mounting cross, rear mounting propeller carrier) is supplied with the engine.

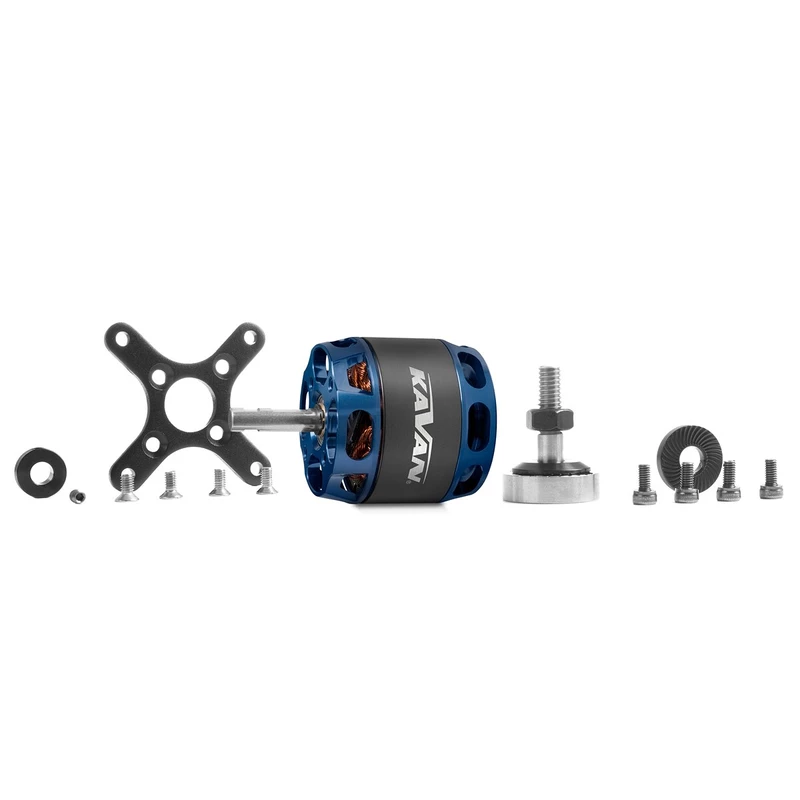

Motor kit includes: KAVAN PRO 3536-850 AC motor with cables with soldered 3.5mm gold-plated connectors, rear mounting kit. You can download the full engine manual here: AC motors KAVAN PRO - User manual

Note: Alternative designation according to stator dimensions 2814-850.
