Futaba 6PV, R404SBS receiver

Six-channel computerized steering wheel RC kit Futaba using the F-4G 2.4GHz transmission system with super fast response for competition and advanced recreational car and boat models. The transmitter can also be switched to T-FHSS transmission modes with telemetry, or S-FHSS without telemetry, and thus use the full range of T-FHSS and S-FHSS receivers for RC cars and boats. With the R404SBS F-4G receiver included in the kit, you have 4 PWM channels for classic servos (with individually adjustable mode for Futaba UR/SR servos , digital or analog servos), channels 5/6 on the S.BUS2 serial output for S.BUS2 servos and the ability to transmit telemetry from sensors connected to the S.BUS2 socket. It also allows the connection of the FS-RM005 transmitter module for controlling Kyosho Mini-Z Evo models.

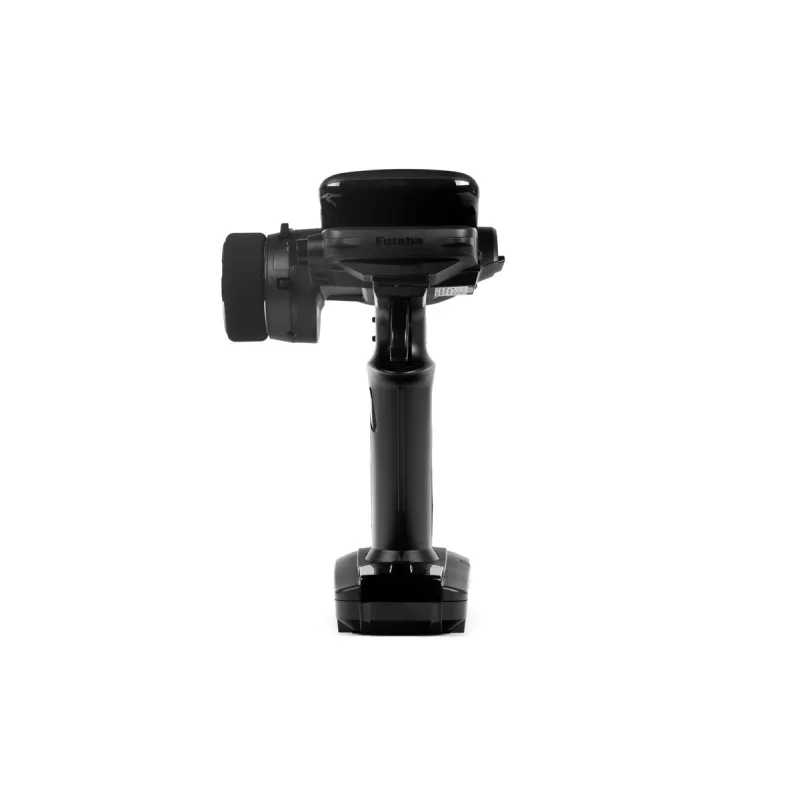

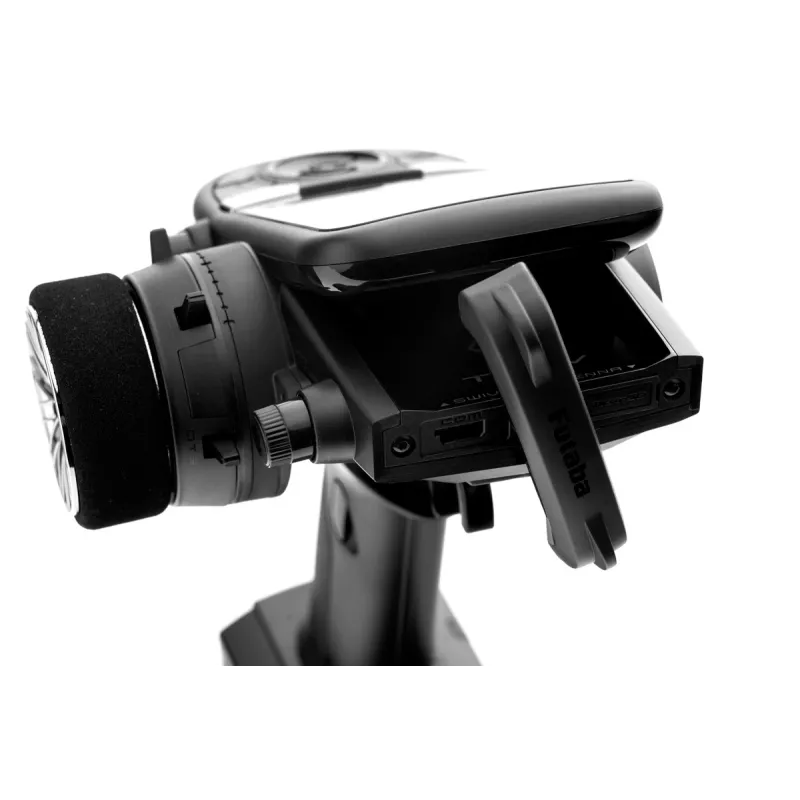

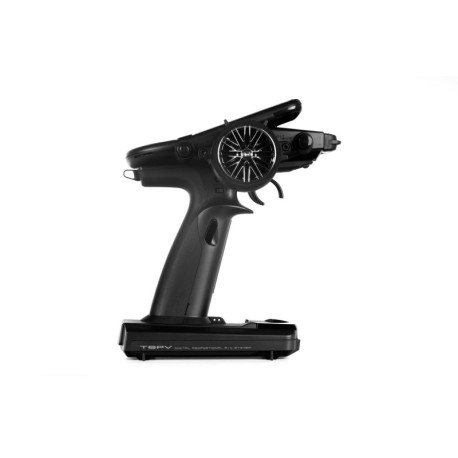

The T6PV transmitter in a classic steering wheel design with a handle that fits perfectly in your hand is equipped with a steering wheel control, a throttle trigger, three push-button switches, one rotary control combined with a push-button switch and six digital trims (4 around the steering wheel, 2 on the handle). The steering wheel and throttle trigger have a wide range of mechanical adjustment options for perfect adaptation to your hands and driving style. Programming is done using a joystick, four buttons and a backlit color LCD display with a diagonal of 3.2" , ensuring easy orientation in the intuitive menu. The T6PV has a memory for 40 models, infinitely expandable using a microSD card and a wide range of advanced programming functions for common and special car models - e.g. independent steering and drive (with 2 regulators) of the front and rear wheels for crawlers, dual-circuit brakes for large 1:5 models, gyro for drifting, ABS, traction control, mix for tanks, etc.

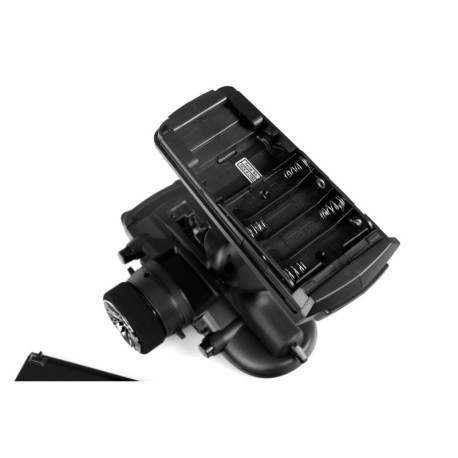

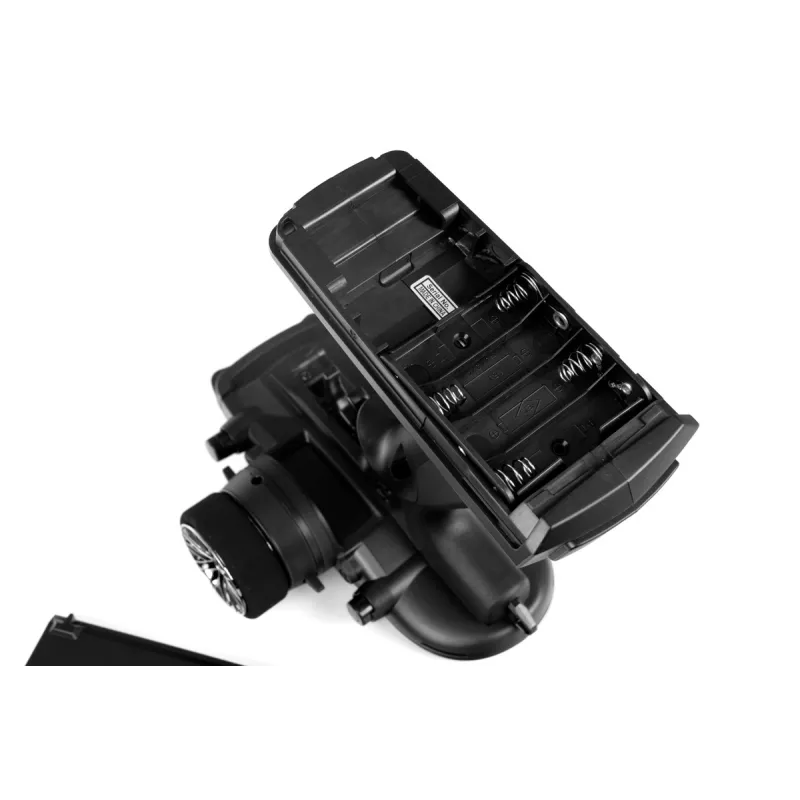

To operate the transmitter, you will need 4 AA alkaline batteries or NiMH batteries stored in the holder supplied with the transmitter, or a 5-cell NiMH or 2S LiPo or LiFe battery pack.

Ultra Response Mode

Ultra Response (UR) mode achieves a further improvement in response of approximately 30% compared to conventional SR mode. Operation in UR mode is possible in combination with compatible servos.

F-4G transmission system

Futaba F-4G 2.4GHz is a new transmission system with super fast response enabling the transmission of telemetry and up to 6 channels. On channels 1-4 it is possible (depending on the settings on the transmitter, each channel can work in a different mode) to transmit a narrowband signal for Futaba UR/SR servos, for classic digital servos, or for analog servos. Channels 5/6 are transmitted as a serial signal for S.BUS2 servos.

T-FHSS transmission system

This transmission system allows the transmission of telemetry data from sensors connected to the S.BUS2 socket on the receiver. ATTENTION: The transmitter is not compatible with T-FHSS Air receivers for flying models.

S-FHSS transmission system

The S-FHSS transmission system allows you to control compatible Futaba receivers, including aviation receivers, or, for example, the FUT5102690 USB simulator module.

Transmission system for Kyosho Mini-Z EVO

This transmission system allows you to pair the transmitter with the RA-42 receiver for the popular Kyosho Mini-Z EVO cars.

Transmission system for Kyosho Mini-Z EVO2

This transmission system allows you to pair the transmitter with the RA-51 and RA-53 receiver with telemetry and the ability to adjust steering and throttle parameters for the Kyosho MR-04 chassis.

Transmission system for Kyosho Mini-Z FHSS

After connecting the Kyosho MINI-Z FS-RM005 RF module to the T6PV, this transmission system allows you to control the Kyosho Mini-Z EVO2 chassis and adjust the parameters of the steering, throttle, gyroscope, etc.

FUNCTION

• Transmission system F-4G with telemetry, T-FHSS-2.4GH with telemetry, S-FHSS (without telemetry), Mini-Z EVO (without telemetry), Mini-Z EVO2 with telemetry and MiniZ FHSS (requires FS-RM005 transmitter module) directly for Mini-Z EVO.
• 6 proportional channels in the F-4G transmission system / 6 proportional channels in the S-FHSS Normal transmission mode / 4 proportional channels in the T-FHSS, S-FHSS (High Speed), Mini-Z EVO, Mini-Z EVO2 and Mini-Z FHSS transmission systems.
• Steering wheel control with adjustable neutralization and eccentric displacement with the help of an adapter (supplied with the kit)
• 2 interchangeable steering wheels of different diameters, interchangeable adapter for adjusting the steering wheel's range of motion (32° or 34°)
• Throttle control trigger with adjustable neutralization range of motion for brake/reverse function
• 3 button switches (assignable)
• 1 rotary knob/push button switch (assignable)
• 6 digital trims (assignable)
• MicroSD card slot
• Communication port for wired programming of servos (Futaba) and controllers (Futaba/Acuvance)

Program functions

• Program menu in English, Japanese, German, Dutch, French, Spanish, Czech and Italian
• Memory for 40 models with the ability to copy, reset and set a 15-character model name
• Memory expansion with microSD card
• Transmission system selection: F-4G, T-FHSS, S-FHSS, Mini-Z EVO, Mini-Z EVO2, Mini-Z FHSS (must connect FS-RM005 module)
• Setting the deflection size for all channels
• Servo deflection limit (limitation of the max. range of deflections when using mixers)
• Reversing the sense of deflections for all channels
• Subtrims for all channels
• Steering and throttle response curve settings: Exponential deflection curve, or a polyline curve with straight sections for left/right steering and forward/reverse throttle
• Adjustable steering and throttle response for easy “dull” of overly sharp response by adjusting a single parameter
• Steering and throttle servo speed
• Double steering deflections
• Jump acceleration
• Servo monitor (for quick control of servo movement, especially in mixed channels)
• ABS
• Safe idling
• Throttle/Brake Control Modes
• Traction control
• Start (protects against wheel spin on uneven surfaces when starting)
• Engine shutdown
• Drag racing (using the so-called trans-brake for a quick start from a standstill)
• Assigning controls for individual channels
• Fail-safe emergency deflections for all channels
• S.BUS servo settings
• Remote control of Futaba/Acuvance speed controller program functions (requires S.BUS adapter SBM-1/OP-15127)
• Wireless tuning of advanced gyro for drift cars GYD550
• Trim function assignment
• Assigning switch functions
• Mix for steering with 2 servos
• Mix for front/rear brakes with 2 servos
• Gyro control mix
• 4WS mix for independent steering of front and rear axles for crawlers
• Mix for drive system with 2 speed controllers
• CPS mix for controlling LED lights
• Mix for tanks – for controlling the movement of tracked vehicles
• 5 freely programmable mixes with selectable waveforms - linear with offset, exponential, or polyline curve with linear sections.
• Mix for winch control together with throttle
• 4 timepieces (stopwatch, timer, lap time with 80 lap memory).
• Telemetry display
• Telemetry sensor settings
• Recording telemetry data to a microSD card

Compatible receivers

• Futaba R204GF-E S-FHSS/FHSS-2.4GHz (4-channel, for electric models only)
• Futaba R2104GF S-FHSS/FHSS-2.4GHz (4-channel, power supply 4.8-6.0 V, not for HV servos)
• Futaba R304SB T-FHSS-2.4GHz with telemetry on S.BUS2 (4-channel)
• Futaba R304SB-E T-FHSS-2.4GHz with telemetry on S.BUS2 (4-channel, only for electric models)
• Futaba R334SBS T-FHSS SR/T-FHSS 2.4GHz with telemetry on S.BUS2 (4-channel)
• Futaba R334SBS-E T-FHSS SR/T-FHSS 2.4GHz with telemetry on S.BUS2 (4-channel, only for electric models)

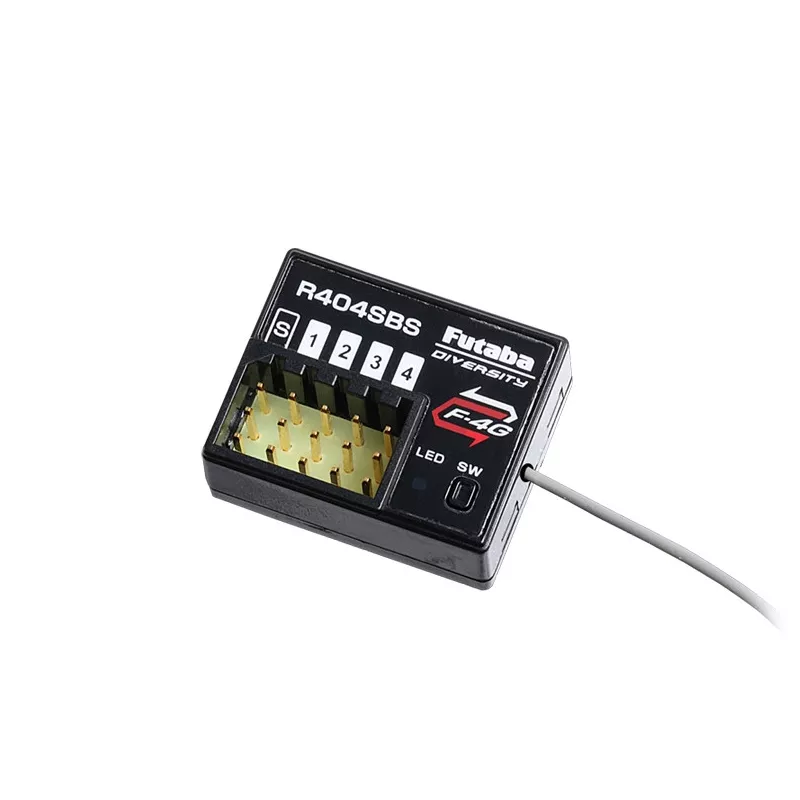

• Futaba R404SBS F-4G 2.4GHz with telemetry on S.BUS2 bus (10-channel)
• Futaba R404SBS-E F-4G 2.4GHz with telemetry on S.BUS2 (10-channel; channels 5-10 on S.BUS2, only for electric models)
• Futaba R2006GS S-FHSS in Normal mode (6-channel)
• Futaba R2008SB S-FHSS in Normal mode (8 channels, 6 channels used)
• RA-42 in Mini-Z mode (4 channels)
• RA-51 in Mini-Z mode (4 channels)
• RA-53 in Mini-Z mode (4 channels)

Compatible telemetry sensors

• Temperature sensor (SBS-01T)
• Temperature sensor (SBS-01TE)
• Tachometer with magnetic sensor (SBS-01RM)
• Tachometer for AC motors (SBS-01RB)
• Voltage sensor (SBS-01V)
• Current sensor (SBS-01C)
• MC/Acuvance - engine speed, controller temperature, engine temperature (for selected engines), drive battery voltage (requires S.BUS adapter SBM-1/OP-15127)

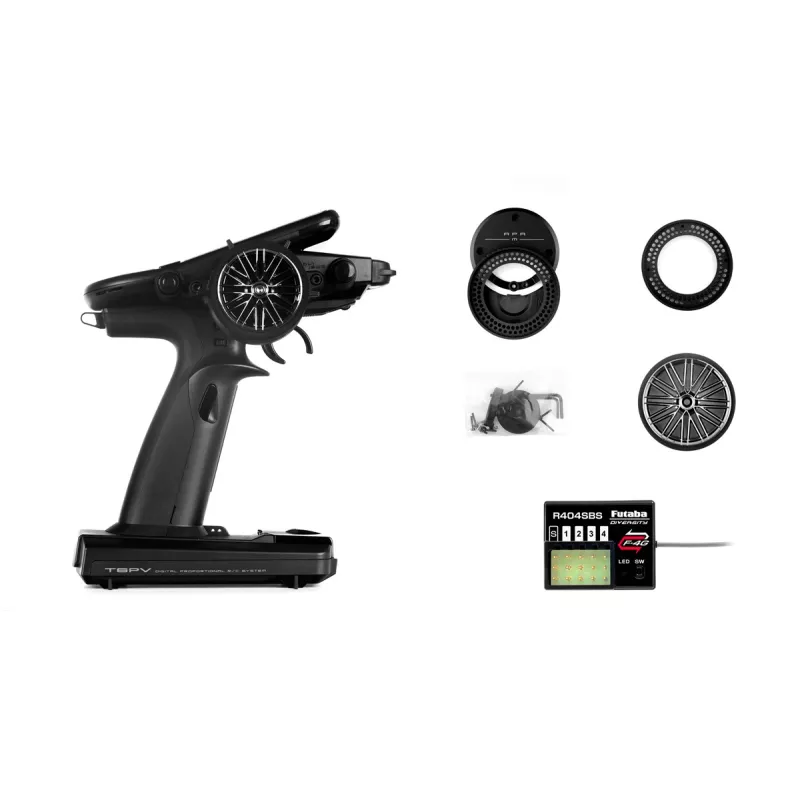

RC KIT INCLUDES

• Futaba T6PV 2.4GHz transmitter
• R404SBS receiver
• APA eccentric steering wheel adapter (medium)
• Steering wheel angle insert 5°
• Large steering wheel 54 mm
• Steering wheel range adapter 32°
• 2 different brake levers (one of which is mounted on the transmitter)
• 3 Allen keys
• Operating instructions
