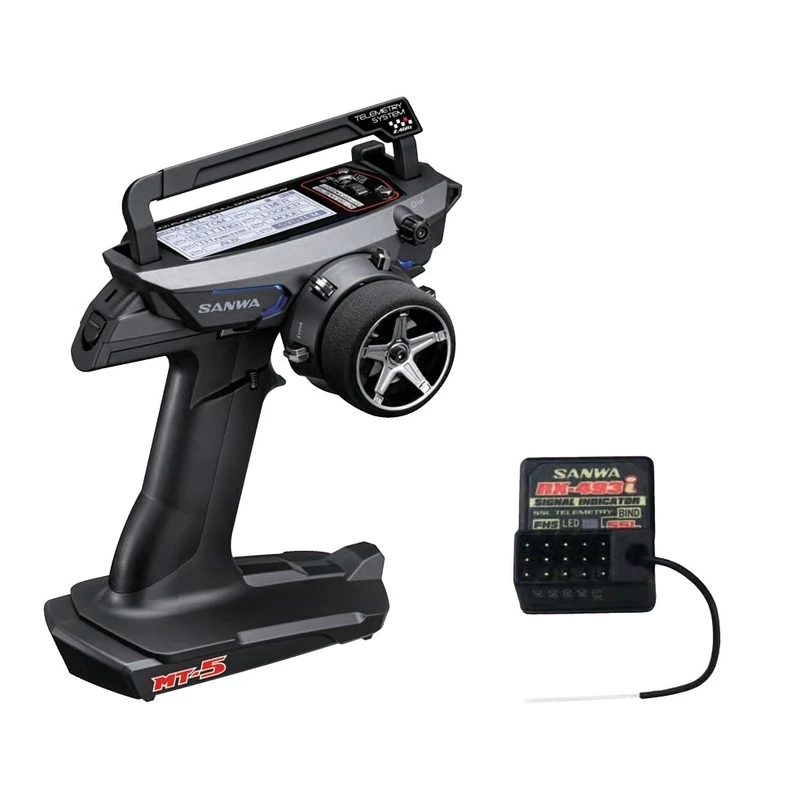

MT5, 2.4GHz including telemetry with RX-493i receiver (successor to MT-44)

The Sanwa MT-5 is here, the successor to the legendary MT-44.

This new SANWA MT-5 kit belongs to the middle class and is ideal for racers and advanced pilots who are looking for a remote control with many great features that are needed when setting up RC cars (and not just races) and have not yet matured to purchase the SANWA flagship M17 .

The MT-5 is a redesigned model of the popular MT-44 with a large white backlit display and high resolution. The folding top handle can be extended for easier carrying. (there is an integrated antenna in the handle)

The transmitter's telemetry features offer a wide range of familiar features with a new way to display signal strength.
One of the exceptional features of the MT-5 transmitter is the indicator function , which measures the signal reception status using the RX-493i receiver. This function can be used, for example, for the correct placement of the receiver in the model.
Of course, there is support for microSD cards to expand the memory.
The MT-5 continues to use low voltage technology, where three batteries or "AAA" rechargeable cells are sufficient as the power source. It is also possible to power the set with a 1S LiPo set. Depending on the capacity, this will extend the operation by many hours and further reduce the weight of the transmitter compared to conventional flashlights.
This reduction in the total weight of the transmitter will be appreciated by pilots: for example: in endurance races, long final rides for 45 or 60 minutes or rides with an expedition car in nature.
The MT-5 supports Sanwa SHR and SSR modulation and is only compatible with FH5 receivers.

Function:

• High resolution liquid crystal display
• Display size equivalent to M12S
• Gas control and position optimization
• Transmitter using low voltage
• Works with three "AAA" cells (supports 1S LiPo)
• USB charging support
• Very light transmitter: 382g
• Quick setup function
• Racing mode
• Custom menu
• Supports micro SD cards for memory expansion
• Telemetry switch
• Ambient temperature display function
• LOG data to CSV output
• Supports CODE 10
• Supports multiple languages

• Built-in antenna in the handle
• Variable Menu Controller
• Dual Rate
• Anti-lock function for brake
• Servo speed options
• Servo Reverse
• Curve (Exponential / Adjustable Rate Control)
• AUX 1 (Select 3 channel type, same function as MT-44)
• AUX 2 (Select 4 channel type, same function as MT-44)
• Failsafe function (signal loss / or low battery voltage)
• Timer (read / interval / countdown)
• 20 models in memory (up to 250 models when using a micro SD card)
• Model name (up to 12 characters)
• Model (select-option / new / copy)
• Trim type (Center / Parallel)
• Throttle setting (70: 30/50: 50)
• RF MODE setting (FH5)
• Answer mode setting (NOR / SHR / SSR) e.g. for SANWA, SRT and other servos.
• AUX TYPE setting
• CODE AUX (with name change function)
• AUX step (steps 1 to 100)
• AUX point (2 to 6 points)
• 4WS mixes (front / rear / normal (directional) / reverse)
• MOA setting (front-wheel drive / all-wheel drive / rear-wheel drive) * Variable drive axle ratio
• AUX mixing (ST mix, TH mix)
• Buzzer (scale and volume change)
• Transmitter battery alarm
• LCD contrast adjustment
• Adjust the volume
• Mechanical adjustment of the steering wheel angle but also its rigidity
• Possibility to change the size of the handle but also its stiffness

• Compatible with FH5 only (cannot be paired with FH2, FH3 or FH4)
• Compatible with SUR, SSR, SHR, NOR response modes
• SSL CODE5 / CODE10 function
• INDICATOR FUNCTIONS can display the signal strength of the receiver and the delivery rate of packets (packets in two-way communication between transmitter and receiver)
• One of the exceptional features of the MT-5 transmitter is the indicator function, which measures the signal reception status using the RX-493i receiver. This function can be used, for example, for the correct placement of the receiver in the model.

The set contains

• MT-5 transmitter
• Receiver RX-493i (FHSS 5), dimensions: 26x23x14mm and weight 6.2g, Water Proof IPX4
• Box for three AAA NiMh or alkaline batteries
• small accessories
