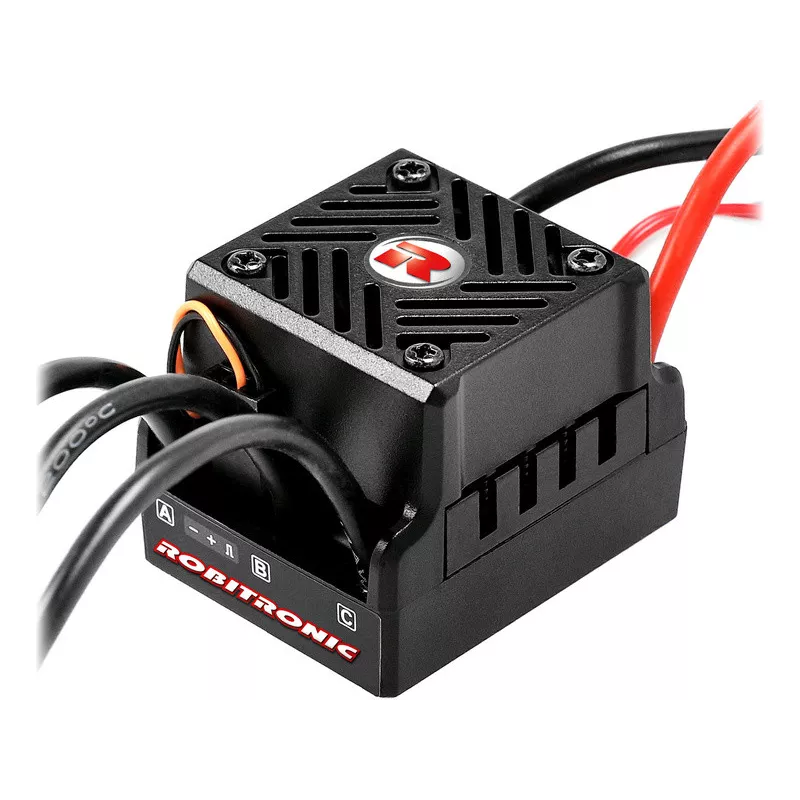

Robitronic AC regulator Razer G2 60A

Characteristics

Robitronic Razer G2 60A electronic AC controller, for Onroad and Offroad RC cars in 1:10 scale. Powered by a 2-3S LiPo or 6-9 NiMH battery. Waterproof* design. Integrated cooler with fan. A wide range of settings with the SET button or via the programming card.

Key features

•

• Electronic controller for AC, sensorless motors

• Precise throttle action with linear acceleration

• Integrated switched BEC - 6V, for powering other components


• Electronic protections: protection against battery under-discharge, thermal protection, protection in case of signal loss

• Easily programmable via the SET button or via the programming card


* Refer to the user manual for information on the water resistance specification. You can find tips and tricks for operating in wet conditions in the blog.

Connections : Battery connector - Deans, motor connector - 4mm sockets.

Adjustable controller functions

The regulator can be easily calibrated and adjusted using the SET button on the regulator. You make settings using the programming tree in the manual. For quick and clear settings, we recommend the programming card - R01269. You plug the programming card into the fan connector.

Powerful cooler

The regulator with state-of-the-art Mosfet transistors and switched BEC source is cooled by a massive aluminum cooler with distinctive ribbing. The passive radiator is also complemented by a powerful fan that supplies air, which ensures a safe ride in all conditions.

Waterproof* switch

A soft rubber cover prevents the ingress of water, dust and dirt to the exposed contacts of the switch and the programming button. So you don't have to worry about the correct function of the switch even after driving in demanding conditions.

Power cables

The controller is equipped with soft and flexible 14AWG power cables that allow a maximum continuous load of up to 45A. For easy and safe connection, the controller is equipped with a Deans connector.

Engine limit

•

• 2S: motor 3652/3660, kV = 6000

• 3S: motor 3652/3660, kV = 3500
