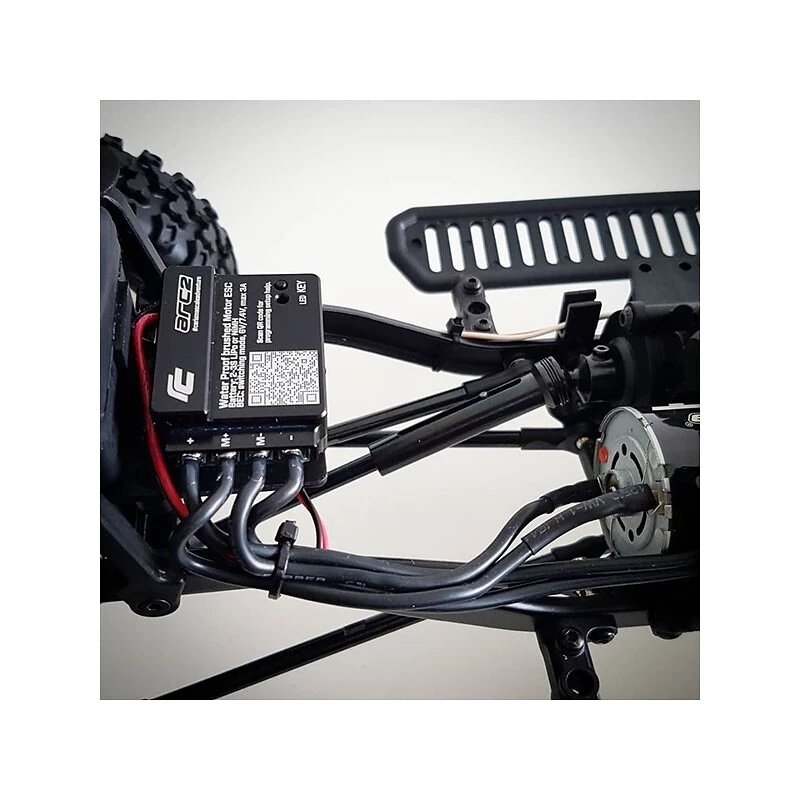

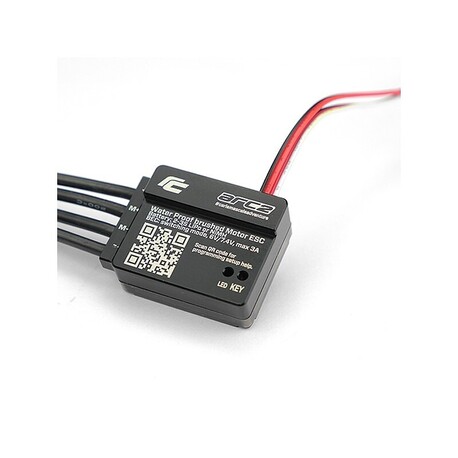

RC-2 controller including programming card

Unique features of ARC-2:

Dedicated Descent Control: (Mode 4 on the Controller) The Controlled Smooth Descent feature mimics the electronic systems mounted on most modern 4x4 Cars in real life. It balances the braking force with the throttle speed, which allows the chassis to perform a controlled descent even on the steepest slopes with minimal throttle and the weight of the set. It could be called Gravity Assist , because the chassis is slowly falling under full control. In use, the Descent Control Force decreases as the gas increases and increases as the gas decreases. This feature is also especially useful when climbing a slope. At zero throttle, the ARC-1 holds the kit in the full brake position and acts as a parking brake. This then gives the driver time to plan the next move and choose the perfect direction of travel. As the throttle increases and the chassis rises, the braking effect decreases. NOTE: In Crawler mode, the Descent Control feature is enabled by default. But the Controller still has instant reverse, an important feature in Rock Crawling that helps stop the landing gear from tipping over on a very steep climb.

Intelligent brake:
(Controller Modes 1 and 3) For models without a crawler, the Controller will first switch to braking mode instead of reversing the engine immediately when moving quickly from forward to reverse or reverse to forward. This is to protect the drive lines in certain vehicles from undue shock and stress. NOTE: The controller will remain in braking mode unless the throttle returns to the NEUTRAL position for a short time. The smart brake is only activated in forward / reverse mode and beginner mode. Not active in browse mode / p>

QR code "ON / ON" Regulator:
To simplify setup, there is a QR Code sticker on the Controller that allows any smartphone or tablet owner (with camera) to use the QR Code Scanner application to scan a QR code and then transfer it to the official product page on the CARISMA website. All the latest information, programming tables and manuals can then be viewed or downloaded for use.

Main product specifications:

• CNC aluminum housing with matt black anodized housing for maximum heat dissipation
• Switching mode BEC: Output voltage: 6V / 7.4V (programmable), maximum output current: 3A
• Waterproof and dustproof, suitable for all weathers for road and off-road chassis
• Battery compatibility: 2 or 3S LiPo (7.4 V - 11.1 V) or 5-9 NiMH cells (7.2 V - 10.8 V)
• 21 fully programmable parameter items, easy setting via LED program card
• Downhill brake on for precise motion control and downhill
• Adjustable PWM frequency: 1K / 2K / 4K / 8K / 16K / 32K
• Low voltage protection (LVC) for LiPo cells
• Anti-lock brake (ABS) for road vehicles
• Overheating / thermal protection
• Fully programmable brake brake
• Signal loss protection
• Low speed / standstill protection
• High voltage protection
• PWM frequency (programmable): 1KHz, 2KHz, 4KHz, 8KHz, 16KHz or 32KHz.

• Size: 41 mm (L) x 33 mm (W) x 22 mm (H)
• Motor connector: 4mm for DC motor, battery connector: XT-60

• Maximum instantaneous current: 750 A.
• Maximum continuous current: 60A
• Resistance: 0.001 ohm

• Max. Instantaneous current: 500 A.
• Maximum continuous current: 40A
• Resistance: 0.0015 ohm
