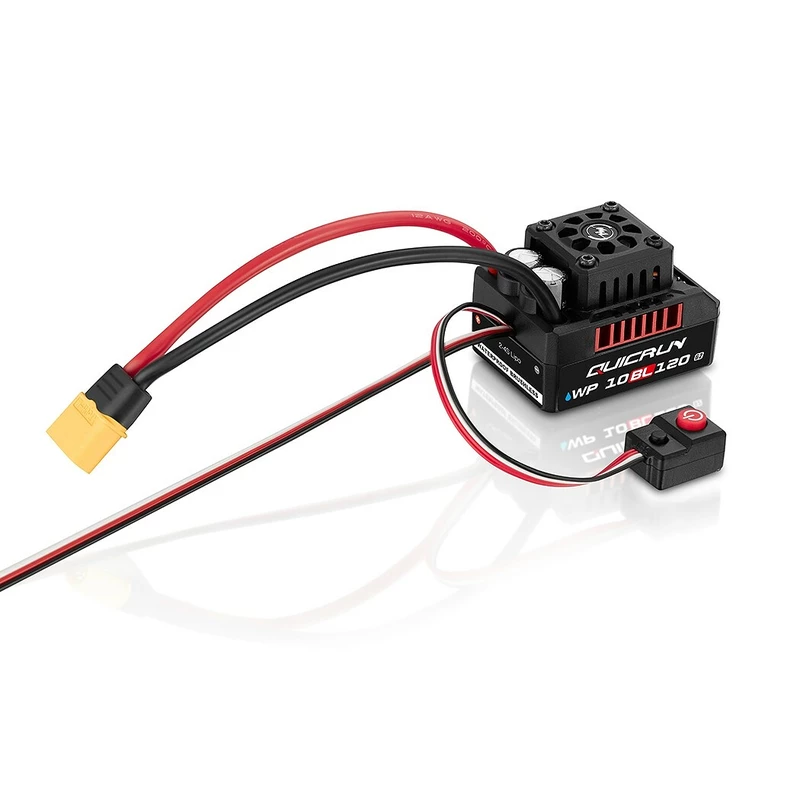

QuicRun WP 10BL120 G2 sensorless waterproof controller 120A

HW30107200
HOBBYWING car
QuicRun Series 120A Electronic ESC for Sensorless Motors; completely waterproof and dustproof with built-in powerful switched BEC circuit 6V-7.4V/5A designed for short course trucks and 1:10 monster trucks. 2-4S LiPo power supply, ideal for no
More info
In stock - main warehouse: > 10 pcs
Dates of delivery
Recommended retail price
66.60 €
Your price with VAT
()
55.05 €
Price without VAT
55.05 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee



    The QUICRUN WP 10BL120 G2 120A controller offers everything you need to fully utilize the potential of your off-road RC car 1:10 with sensorless AC motor - short course truck or monster truck. It offers a wide range of 10 programmable parameters to perfectly match the engine, chassis and track. So, if you're serious about riding your bloated "tenth" with an AC motor, Hobbywing's QUICRUN WP 10BL120 G2 Waterproof Controller is for you!

    Function

    • Specially developed for 1:10 off-road RC cars: short course trucks and monster trucks with sensorless AC motors powered by 2-4S LiPo
    • For size 3660 motors without sensors
    • Compact dimensions, low weight, patented cooling system with high efficiency
    • Waterproof and dustproof construction
    • Ideal in combination with Hobbywing QUICRUN 3660SL G2 and 3552SL G2 engines
    • 10 programmable parameters
    • Powerful switched BEC stabilizer up to 5 A with selectable voltage of 6.0 or 7.4 V
    • Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
    • Possibility of programming with the help of an LED programming box

    Programmable parameters

    • General: Driving mode, Number of LiPo cells, Voltage protection, BEC voltage,
    • Throttle Control: Start, Max. power reverse, Throttle neutral range
    • Brake control: Resistance brake intensity, Max. braking effect
    • Timing: Timing (0-26.25°)

    The controller set includes: QUICRUN WP 10BL120 G2 controller with cables, user manual.

    Use Car
    Type Alternate
    Continuous current [A] 120
    Max. peak current [A] 760
    Li-Po [Art.] 2 - 4
    BEC voltage [V] 6 - 7.4
    BEC current (max.) [A] 5
    Length [mm] 52.8
    Width [mm] 39.8
    Height [mm] 38.2
    Weight [g] 119
    Regulation Two-way
    Input for sensors No
    Programmable Yes
    Water resistance Water resistant
