High reliability and durability
Built from the most durable and high-quality components along with "uncut" firmware, the EZRUN MAX5 is capable of delivering unrivaled performance even for the most demanding hardcore racing. It is also sufficiently resistant to damage due to current overload or physical strain or even human error.
Great flexibility and versatility
The controller has a strong and stable performance, so the vehicle can handle without fail everything the driver requires, from an aggressive start with wheelie, jump, steep climb, or constant high speed on a flat long surface. It always provides superior performance or the driver can set the proper parameters for trouble-free operation and soft start.
Suitable for all weather conditions

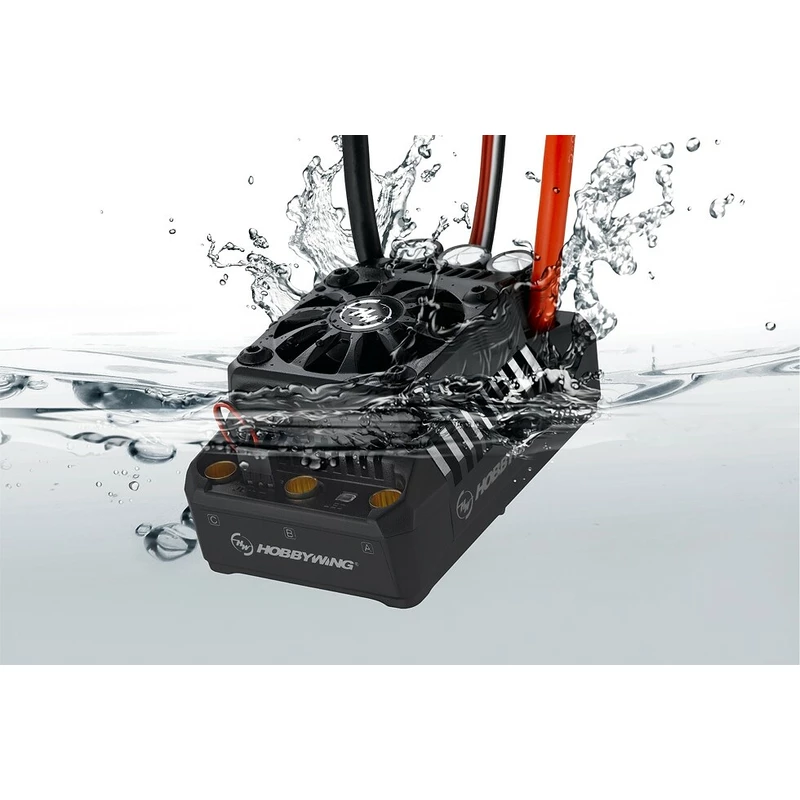

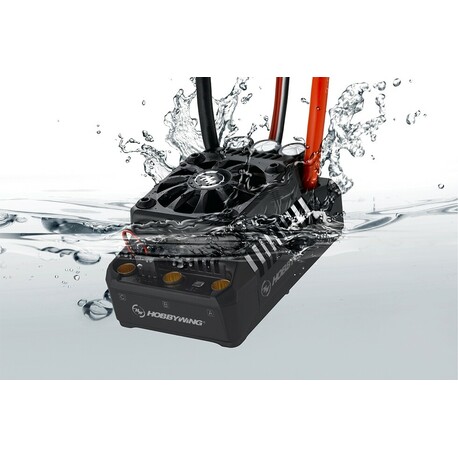

The excellent waterproof and dust-proof MAX5 design allows it to be used in any weather, whether the track is covered with dust, gravel, snow or mud.
High Voltage Built-in BEC
EZRUN MAX5 is the world's first HV accelerator with built-in BEC with output current up to 25A and switchable output voltage 6V-7.4V. BEC High Voltage is designed to process today's high voltage servos on demand of large-scale vehicles.
External electronic switch
An electronic switch with a lifetime of more than 50,000 on / off cycles is completely waterproof, dust-proof and impact-proof. Completely redesigned solves problems such as "sticking" or rusting contact points due to dust and moisture, or spontaneous shutdown due to forced compression, as is the case with conventional mechanical switches.
Regular firmware updates
You can upgrade the MAX5 with the Hobbywing USB LINK software, the LCD multifunction box or computer."
Hobbywing updates ESC firmware on a regular basis to complement modernized features that are newly available.
Maintenance-free
The installed cooling fan is essentially maintenance-free. It is designed to withstand shocks caused by high and frequent jumps or landing on hard surfaces, eliminating ESC damage caused by overheating.
Built-in Anti-Spark System
The MAX5 is designed with an internal anti-spark circuit that protects not only the battery connectors from sparks and damage, but also helps prevent physical injuries such as burning fingers when connecting higher voltage (5S / 6S / 7S / 8S) batteries to the controller.
Wide range of uses
EZRUN MAX 5 offers the best tuning solution for many popular 1 / 5th RC cars such as HPI Baja buggy, Losi 5ive-T Nitro-Electric truck and Desert Buggy XL Nitro-Electric. It is also suitable for other brands in the 1 / 5th scale, such as road cars, trugs, SCTs and buggy.
| Use | Car |
| Type | alternate |
| Continuous current [A] | 200 |
| Max. peak current [A] | 1300 |
| NiMH [Article] | 9 - 24 |
| Li-Pol [Article] | 3-8 |
| BEC voltage [V] | 6 - 7.4 |
| BEC current [A] | 6 |
| Length [mm] | 93.4 |
| Width [mm] | 58.1 |
| Height [mm] | 47.8 |
| Weight [g] | 342 |
| Regulation | bidirectional |
| Brake | Yes |
| Input for sensors | No |
| Programmable | Yes |
