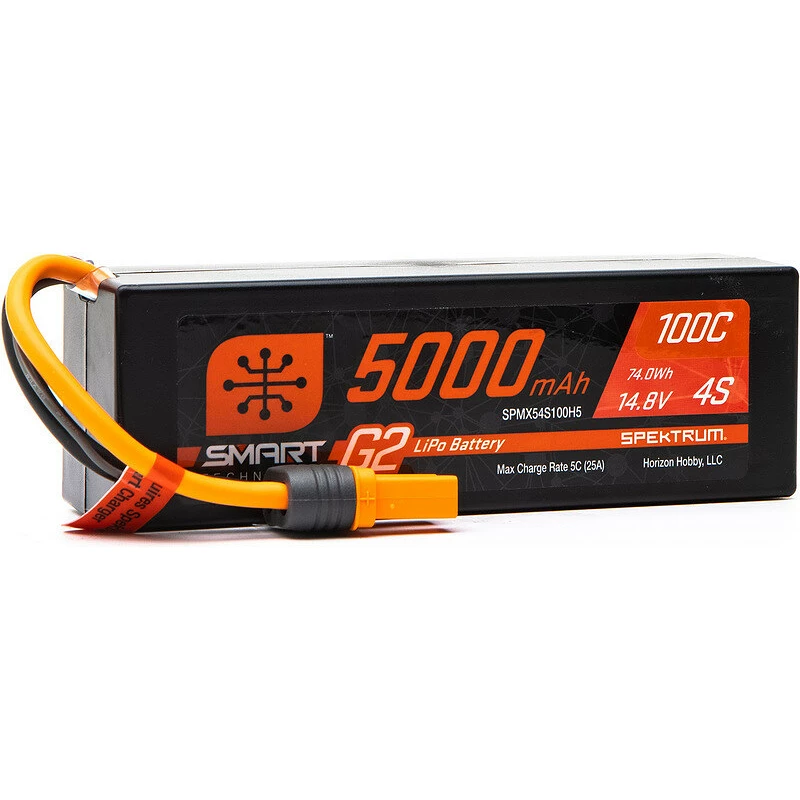

Spectrum Smart G2 LiPo 14.8V 5000mAh 100C HC IC5

Characteristics

LiPo battery Spectrum Smart G2 LiPol 14.8V 5000mAh 100C HC IC5 is a new generation of batteries without a balancer connector, with an IC5 data cable. A Spektrum-Smart G2 charger is required. The integrated microchip stores the unique parameters of each battery, Smart technology for easy charging.

Spectrum Smart version G2 launches a new generation of LiPol batteries for aircraft and car models. The basic concept is a battery without a classic balancer connector, with only one connector of the IC3 / IC5 series, while the comparison of individual cell voltages is in charge of SMART G2 battery and charger electronics (or older smart charger with G2 update) and single-core data cable. IC. The cooperating electronics of the battery and charger can provide the user with information that is important for assessing the quality of the battery, ie the status of individual cells and storing the history of a particular battery in the charger. Using a faster automatic discharge of up to 1.5 A for safe storage voltage will save you time.

Users have a number of advantages when using Spektrum ™ Smart G2 LiPol batteries. Thanks to Smart technology and new "generation 2" functions, these LiPol battery packs are even easier and safer to use with your Smart charger.

Smart G2 batteries are factory-programmed to automatically adjust the voltage to a safe storage voltage of 3.9V per cell after 72 hours of inactivity. This will give your batteries longer life, better performance throughout the battery life. You can cancel the Auto Storage setting using the Smart Charger. G2 batteries also offer a higher discharge rate for Storage, which is three times faster than previous G1 Smart batteries / p>

LiPol packages with Smart G2 soft case also contain inner metal side plates. These plates improve heat dissipation and provide greater protection for the cells from being punctured during a rough landing or impact.

As with other Smart batteries, you do not need to set your own Spektrum ™ Smart G2 battery charging preferences unless you want to change the parameters. When the Smart G2 LiPo battery is connected to the Spektrum ™ Smart charger, its unique charging parameters and health information are read into the charger from the integrated memory microchip. You can use the charger to view and set preferences, such as power, so all you need to charge your battery is connect to your SMART charger. The rest is taken care of by SMART technology.

Spektrum ™ Smart G2 LiPo batteries store a wide range of basic information, including:

• Battery brands
• Battery type
• Battery capacity
• Battery rating C
• Tension of individual cells
• Battery temperatures
• Charging / discharging cycles

LiPol Spektrum ™ Smart G2 batteries store an error log, including the number of cases of overheating, excessive discharge and overcharging. This data can help determine suitability for the application. The innovative Spectrum-Smart G2 LiPo batteries are so easy to use that they almost take care of themselves. With Smart G2 technology, it's easy to achieve top performance, reliability and battery life!

Note: G2 batteries require the use of a Spectrum ™ SMART G2 charger or an older SMART charger with G2 update.

Battery features Spectrum ™ Smart G2

• Charging and balancing via one IC3® or IC5® connector and data cable
• Integrated microchip stores The integrated microchip stores the unique parameters of each battery
• IC3® and IC5® connectors are compatible with EC3 ™ and EC5 ™ connectors
• Thicker inner aluminum side plates protect the cells and improve heat dissipation
• discharge up to 1.5 A for safe storage voltage
• Spektrum ™ G2 smart charger required (or Smart charger with G2 update)

Data available

The integrated microchip allows each Smart G2 battery to store important information such as battery type, cell status and number, capacity, number of charge cycles, number of discharges, C rating, battery temperature and internal resistance. In addition, each battery saves a log of non-standard events, such as overcharging, overcharging, and overheating.

Automatic Smart Storage setup

The Spektrum ™ Smart G2 batteries take care of themselves practically, they are factory-programmed to automatically adjust the cell voltage to a safe storage voltage of 3.9 V after 72 hours of inactivity. The result is longer battery life, better performance throughout the battery life. The user can change the settings using the charger and turn off the Automatic Storage.

Simple and fast

Preset charging, discharging and storage parameters are automatically transferred from the Spektrum ™ Smart G2 battery to your Smart charger, so charging is as easy as connecting to the battery. The charging speed of each set can also be customized by the user, allowing you to take full advantage of faster charging sets. The integrated battery microchip remembers the last set charging speed, so the next time you connect, these settings will be loaded automatically. / p>

IC3® and IC5® connectors

The Spektrum ™ IC3® and IC5® smart connectors have been designed to provide a stronger connection, higher heat resistance and easy installation. IC connectors are also backward compatible with EC connectors, so you can use Smart batteries with older systems. Smart G2 batteries can only be charged with Smart chargers.
