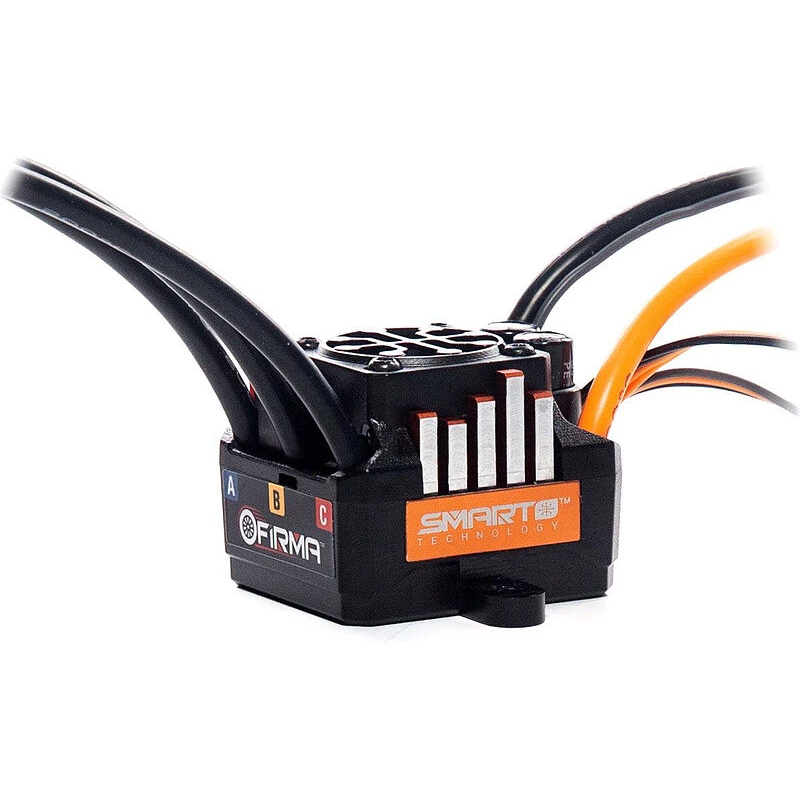

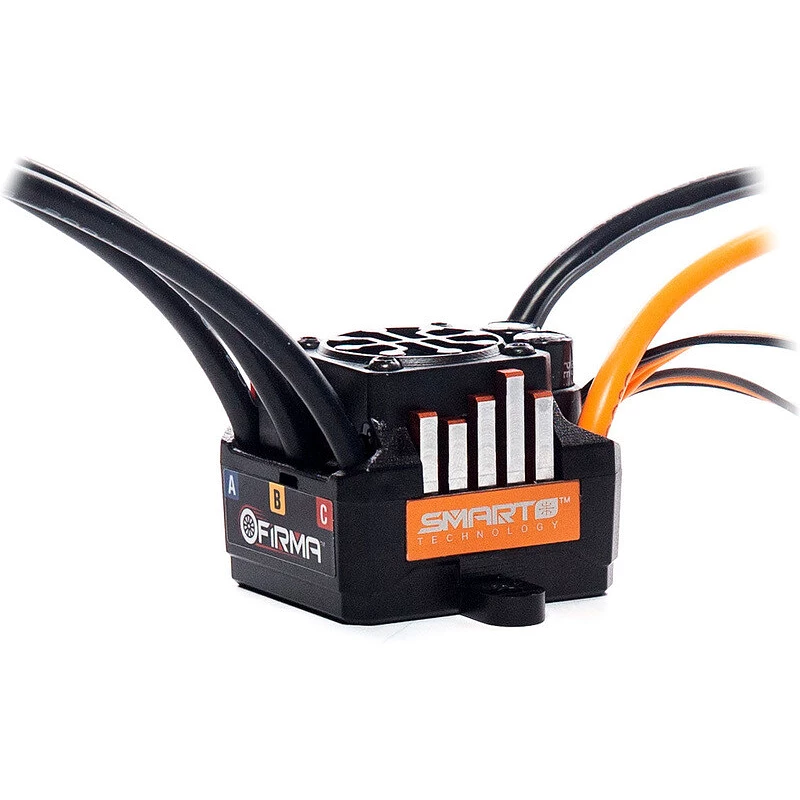

Spektrum AC regulator Smart Firma 85A 2-3S

Package contents

The package includes the Firma 85A Smart controller, Spektrum Smart stickers and instructions for use in English, German, French, Italian and Czech.

Characteristics

Smart innovation continues, the range of controllers Spectrum Smart controller The 85A 2S LiPol company offers a perfect overview of the status of your drive unit, speed, temperature, battery voltage and capacity are available to you via real-time telemetry. And without additional sensors!

Thanks to Smart technology, it offers a perfect overview of the status of your drive unit, and you have access to current, temperature, total battery voltage, voltage of individual battery cells, battery temperature, remaining capacity and motor speed via real-time telemetry. And without additional sensors! Smart technology ensures that all the electronics in your aircraft model work together seamlessly for maximum efficiency and performance. It offers information on the status of each component of the system, increases your confidence in its capabilities and makes the entire drive system easy to use. The Smart system consists of a compatible Spektrum transmitter, a Smart receiver, a Smart controller, or a Smart battery.

The controller is controlled by a modern 32-bit ARM Cortex M4 microcontroller. The controller reads information about the type, temperature and voltage of the battery cells directly from the Smart battery via the data cable. So you no longer need any sensors or modules, everything simply goes together. The information will be displayed on the transmitter display (it is necessary to have a 2nd generation Spectrum transmitter with current firmware (Spectrum DX5C, DX5R, DX5 Pro, DX6R).

Data transmission via one wire

An amazing innovation is the very simple connections, which is a key issue, especially for RC car models. Data transfer from the Smart battery to the controller is via one data wire, which is part of the IC3 connector. Data is transmitted to the receiver via the SRXL2 protocol. Spektrum Firma controllers are, of course, backward compatible with a classic PWM signal, so you can also operate the controller on a classic PWM output, but without telemetry data transmission.

Waterproof construction *

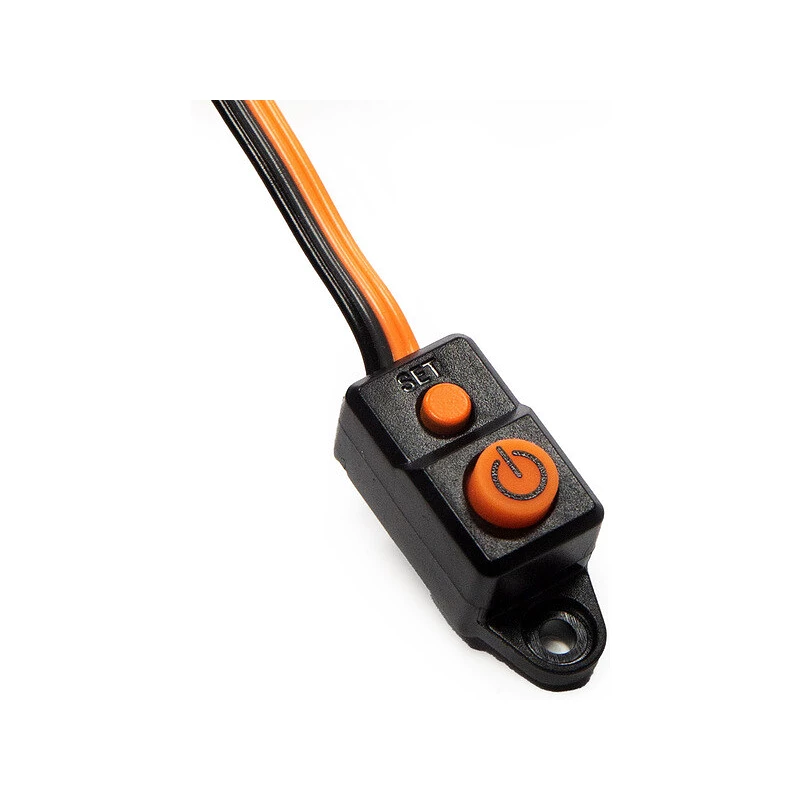

Electronics of regulators Spectrum The company for RC car models is completely encapsulated in a special potting compound, which prevents the entry of moisture or dirt into the electronics. The controller is switched on and set with the buttons under the rubber cover.

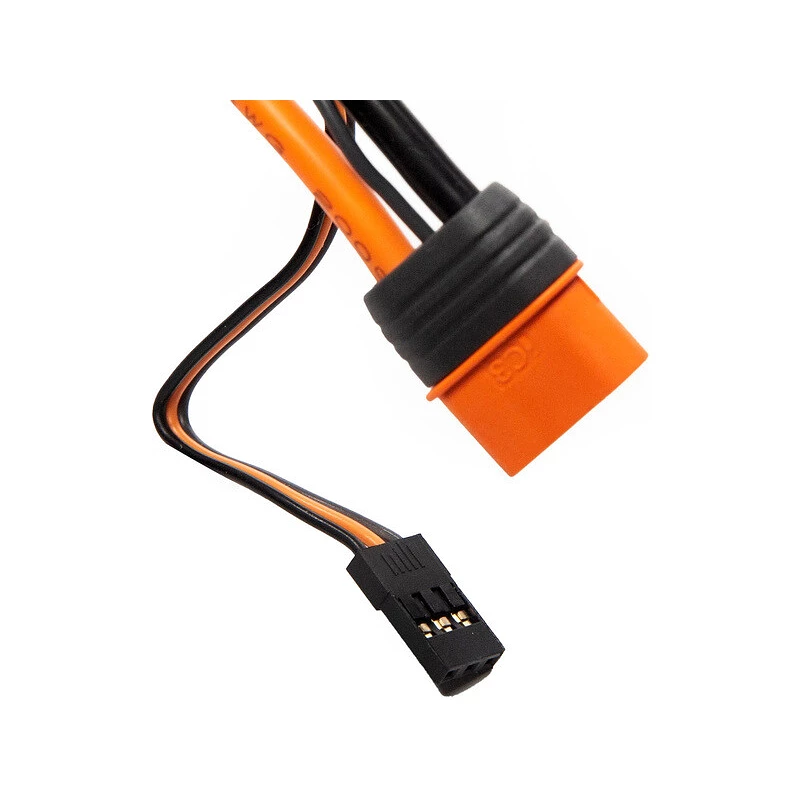

IC3 / EC3 connector compatibility

Spectrum Smart controller The 85A company is equipped with battery connectors of the IC3 series. When used with a Spektrum Smart battery equipped with an IC3 connector, the controller can receive and transmit battery telemetry data. The EC3 connectors are backward compatible with the IC3 connectors, but you will lose the ability to read data from the battery.

Smart battery information

When using the controller with the Spektrum Smart battery, the controller automatically reads all data from the battery. The display of the Spectrum transmitter will show you useful information, such as the number of cycles, the remaining battery capacity, the voltage of individual cells.

More programming options

Using the Smart programming box, you can easily change the controller settings to better suit your requirements. An easy-to-use Smart Link application for computers is also available. The application allows you to update the firmware and other detailed settings. The controller is connected to the computer via a programming box.

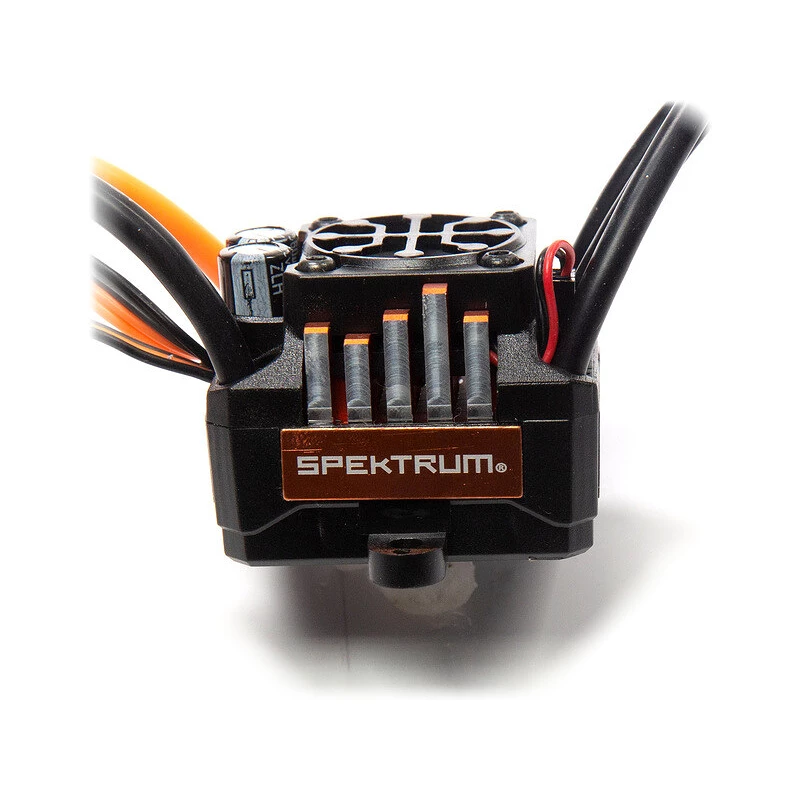

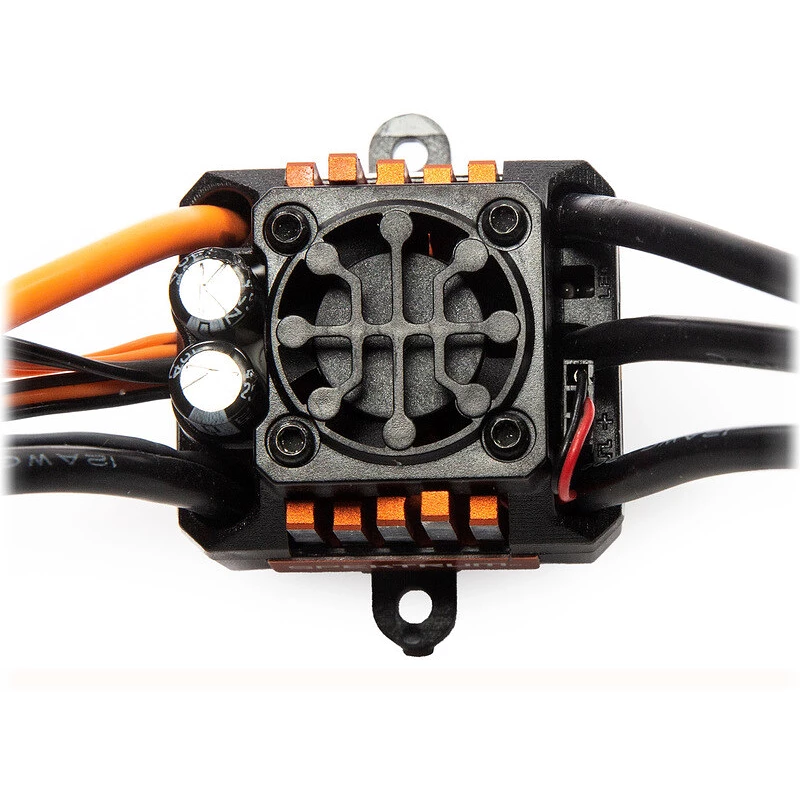

Sophisticated design with optimized cooling

The Company's controllers are equipped with a large heat sink on the upper side, which dissipates heat from the power components. Thanks to the compact dimensions, the placement of the controller in the model is very easy.

Adjustable parameters of the controller

The controller can be programmed in the following ways:

• With the SET button on the controller
• Programming card (order no. SPMXCA200)
• Smart Link application for PC. The controller is also connected to the computer via the SPMXCA200 programming card)

Regulator features for RC car models Spektrum Smart Firma 85A

• Suitable for RC cars 1:10 2WD and 4WD and LiPol batteries 2S
• Smart telemetry in a comprehensive package
• The controller contains a fast and powerful 32-bit ARM M4 processor
• The controller is waterproof
• More programming options thanks to the Smart programming box
• Overcurrent protection
• Automatic disconnection of LiPol at low voltage
• Thermal protection
• Failsafe protection
• Compact, easy to install
• Robust plastic housing with mounting tongues
• Aluminum heatsink with fan for high efficiency
• Adjustable high-performance BEC
• The firmware can be updated using the Smart ESC programming box
• Highly durable IC3 connectors compatible with EC3 connectors

* For information on water resistance specifications, refer to the operating instructions. Tips and tricks for operating in a wet environment can be found in the blog.
