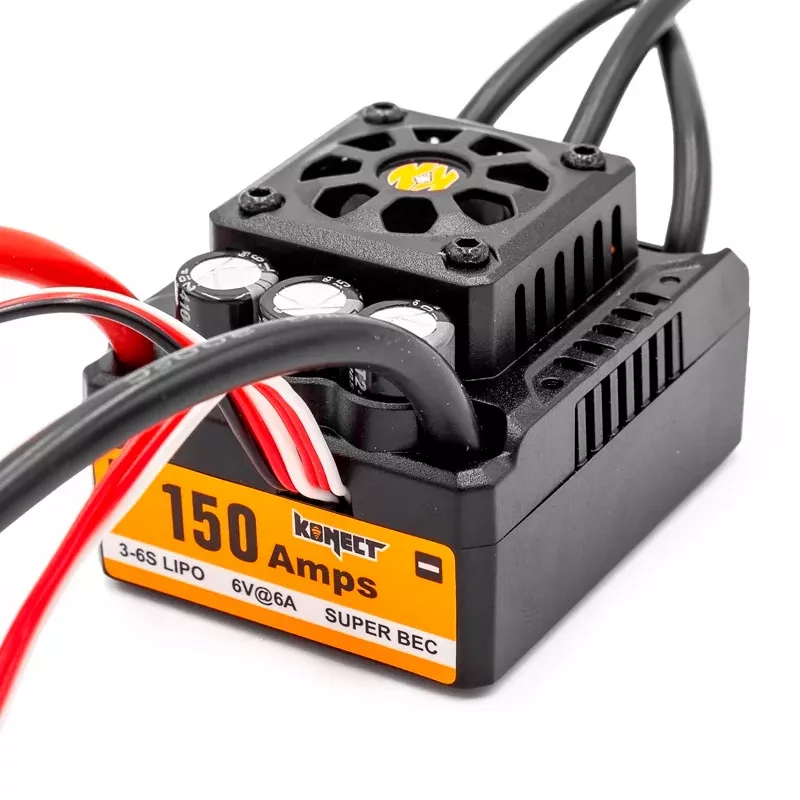

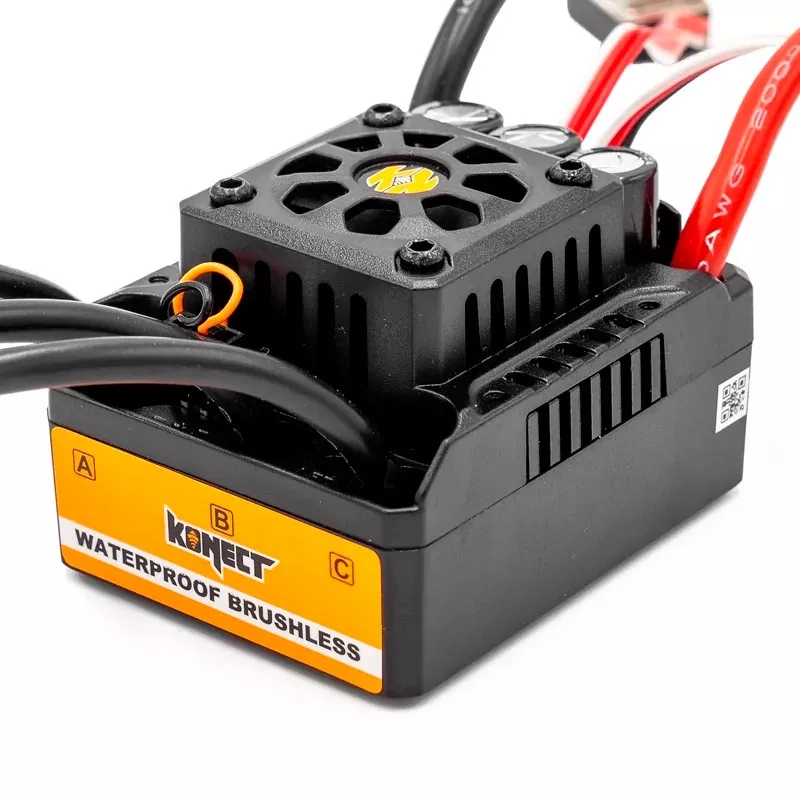

KONECT waterproof AC 150A regulator - G2

Brushless controller for 1/8 on-road & off-road chassis Rally, Buggy, Truggy, Short Course, Monster Truck

Konect & HobbyWing are your reliable partner when it comes to maximizing the performance of your RC CHASSIS.

The controller with 150A continuous load is waterproof and has a switched BEC that provides 6V with a power supply of 6A. This means that even Hi-Volt servos with high torque and high current can be operated without problems.

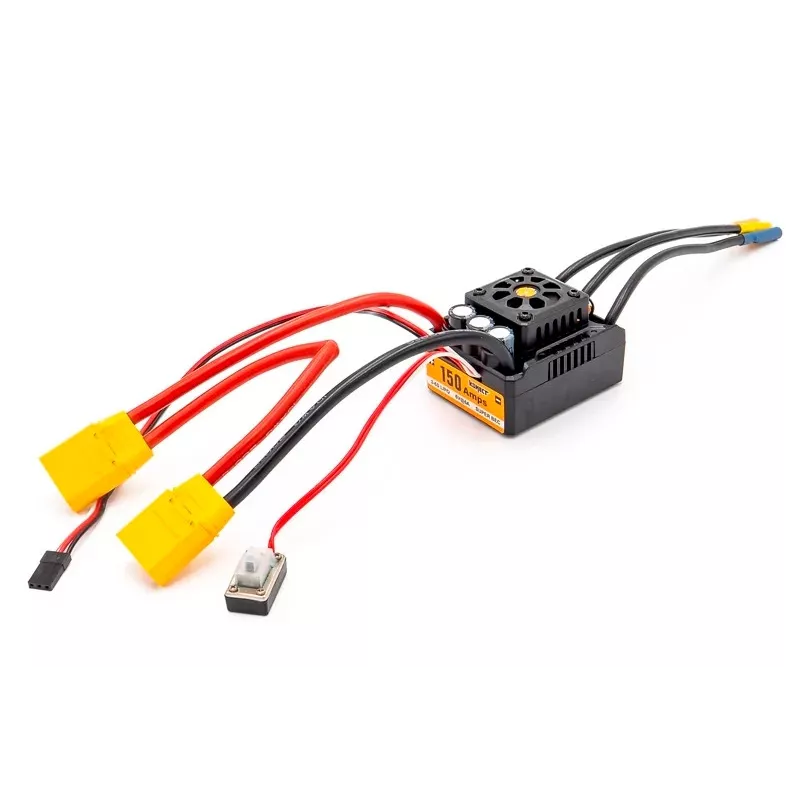

Equipped with two XT90 connectors, two batteries can be connected to the brushless controller without additional adapters. Also for the Motor, high-quality 4mm/G4 gold connectors are already prepared and can be connected immediately. This means that the system is immediately ready for use without additional soldering work, i.e. Plug & Play.

The Konect 150A WP controller can be easily programmed using a separate programming connection and a programming card (optional) without having to disconnect the existing connection in the vehicle beforehand. This way, the numerous functions of the AC controller can be adapted to your own needs in no time and without any major complications. Alternatively, it can of course also be programmed using the built-in settings button on the switch.
Last but not least, the controller also has a number of safety systems to protect electronics, such as the LiPo battery, RC kit, control and servos, from damage due to, for example, reverse polarity, overheating, short circuit or undervoltage.

Features:

This electronic brushless speed controller is ideal for 1/8 scale vehicles when going off-road or other events. No matter if it is a Buggy, Short Course, Stadium Truck or Truggy with the Konect 150A WP controller (manufactured by market leader HobbyWing) you will have maximum driving fun, Mega power and zero problems.

• Waterproof and dustproof controller
• Powerful 6V BEC with 6A
• Dual port for connecting a fan or programming card
• On/off switch including separate setting button
• 8 options for adjusting the brake force in neutral/Drag brake from 0 to 100%
• The maximum braking force can be set in 5 different modes from 25% to 100% or turned off completely.
• 9 adjustable acceleration/punch curves from soft to aggressive acceleration
• Reverse gear can be deactivated
• In LiPo mode, the lower voltage limit can be set from 2.6 V/cell to 3.4 V/cell. This can also be completely disabled if desired.
• Completely ready to connect for battery and motor (Plug & Play) no soldering required

Technical data of the controller:

• Continuous current: 150A
• Input voltage: 3-6S LiPo batteries
• BEC output power: 6V/6A
• Engine limits: 4S LiPo/6 cells NiMH = up to 3000Kv, 6S LiPo/9cell. = up to 2400 square meters
• Type: Sensorless system
• Battery side: 2x XT90 to connect two LiPo
• Controller/Motor: 4mm/G4 gold connectors
• Receiver: JR/Graupner connector
• Dimensions approx.: 60 x 48 x 40.4 mm with fan
• Weight: approx. 210 g

Suitable for models

• 1/8 Buggy
• 1/8 Short Course
• 1/8 Truggy
• 1/8 Monsters
• 1/8 On-Road and Rally
