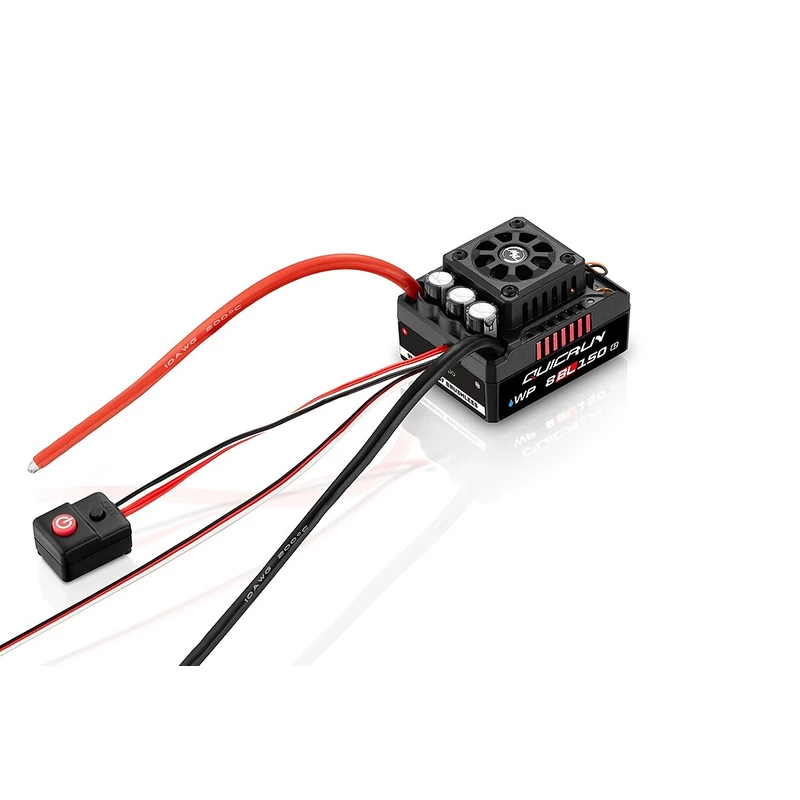

QuicRun Waterproof 8BL150 G2 sensorless controller

The QUICRUN WP 8BL150 G2 120A controller offers everything you need to fully utilize the potential of your off-road RC car 1:8 with an AC motor without sensors ("sensorless") - truck or monster truck. It offers a wide range of 10 programmable parameters to perfectly match the engine, chassis and track. So, if you're serious about riding your bloated "tenth" with an AC motor, Hobbywing's QUICRUN WP 8BL150 G2 Waterproof Controller is for you!

Function

• Specially developed for 1:8 off-road RC cars: trucks, monster trucks with sensorless AC motors powered by 3-6S LiPo
• For motors: 4S LiPo power supply: motors with KV?3000 / 6S LiPo power supply: 4274 size motors with KV?2400
• Compact dimensions, low weight, patented cooling system with high efficiency
• Waterproof and dustproof construction
• Ideal in combination with Hobbywing 4274SL and 4268SL motors
• 10 programmable parameters
• Powerful switched BEC stabilizer up to 6 A with selectable voltage of 6.0 or 7.4 V
• Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
• Possibility of programming with the help of LED programming box or LCD programming box G2

Programmable parameters

• General: Driving Mode, Number of LiPo Cells, Voltage Protection, BEC Voltage,
• Throttle Control: Start, Max. power reverse, Throttle neutral range
• Brake control: Resistance brake intensity, Max. braking effect
• Timing: Timing (0-26.25°)

The controller set includes: QUICRUN WP 8BL150 G2 controller with cables, user manual.
