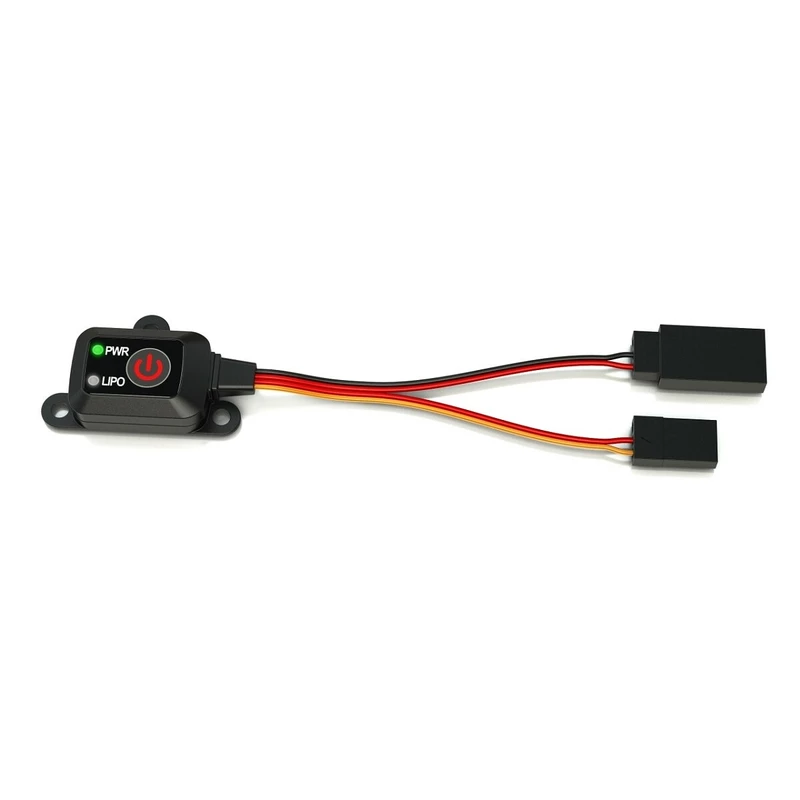

Electronic Power Switch

Button-operated electronic switch 4-12 V max. 10 A with LED voltage allows to replace the traditional mechanical switch for powering on-board electronics of your model. Thus removing the potential problems with the reliability of the mechanical contact switch, especially in such challenging environments, such as RC cars.

The switch is enclosed in a plastic housing, supplied with two removable rear lids - one has three mounting feet for attachment to mount the transponder ( "chip" for counting laps); a second lid without using the feet for attachment to a model using double-sided tape. The power socket is universal, allowing the connection of a battery servokonektory Futaba (with the protrusion on the side) and Hitec / JR (excluding protrusions). The output is servokonektor Hitec / JR.

Power Switch has two operating modes:

• NiCd / NiMH batteries - a four-state indication (<20%, 20-59%, 60-79%, 80-100%), three-color LED
• LiPo batteries (2S) - a four-state indication (<20%, 20-59%, 60-79%, 80-100%), three-color LED and protection against deep discharge (6.2 V).

Set switches include: switch PowerSwitch with cables fitted with the rear cover with flaps, rear lid without feet, 4 self-tapping screws, instructions.

NB .: These are the dimensions of the body switches to the rear lid without feet.
