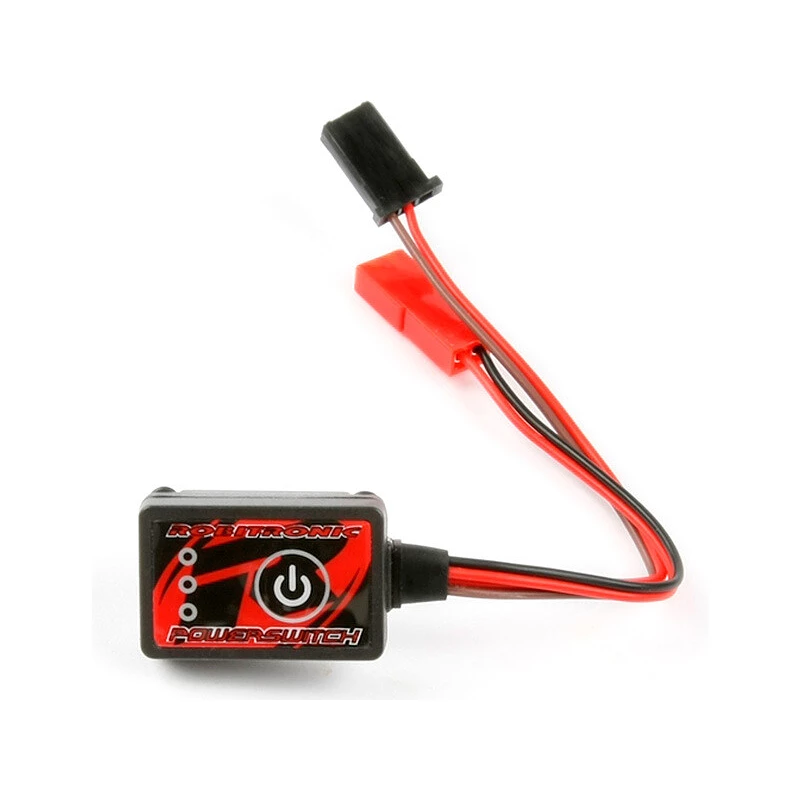

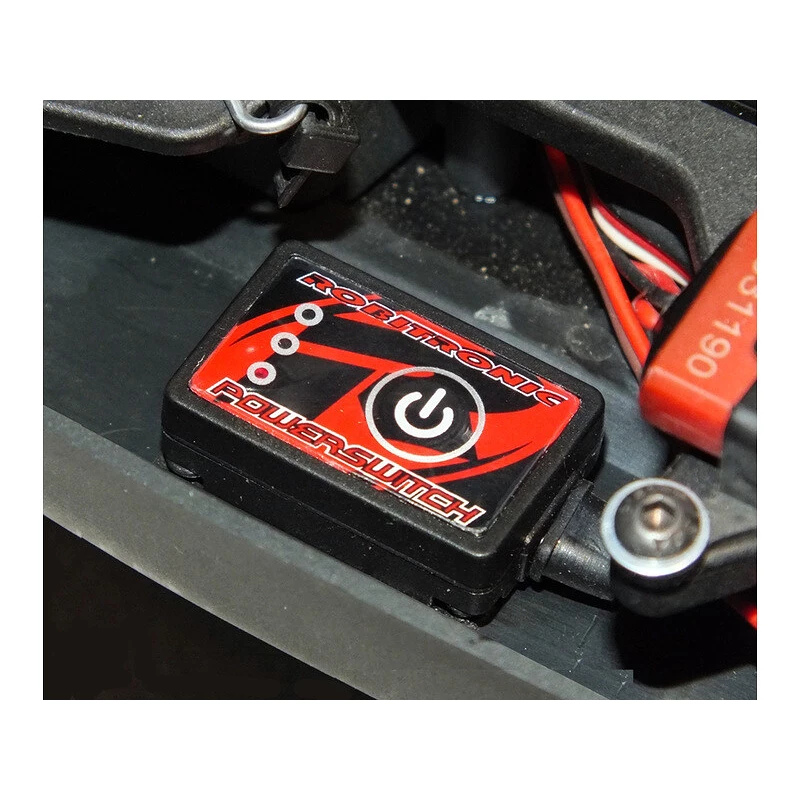

Robitronic electronic switch with battery indicator

Characteristics

The electronic switch was developed as a replacement for the mechanical power switch of the receiver in internal combustion vehicles. The switch is used to turn the receiver power on and off in the vehicle. In addition, it informs you about battery charge levels or power errors. This is a clean switch, ie the voltage of the connected battery is transmitted directly to the output when switched on. So if you use a LiPo battery with 7.4V, for example, you need to make sure that your receiver and servos are compatible with higher voltages!

Thanks to the latest MosFET technology, the switch is extremely durable despite its small size. They can also be used in large models with up to 3 servos. If you leave the battery connected, the switch in standby mode consumes very little power . For example: A fully charged 1600mAh battery would not discharge until approximately 950 days.

Properties

• Robust and reliable electronic switch for powering the receiver of vehicles with internal combustion engines
• Completely sealed for protection against dust and water
• Programmable for 2S LiPo, 2S LiFe and 5-cell NiMH batteries
• Accurate charge status display with 3 LEDs
• Fault detection, loose contact / bad battery
• Very low internal resistance for minimal losses
• Extremely low power consumption when switched off
• Very high current carrying capacity
