iSDT charger X16

The high-performance two-channel charger ISDT X16 2x1100W is an intelligent charger with mains power supply and very simple and clear operation. The X16 allows you to charge and discharge lithium batteries (LiPo, LiHV, LiFe, ULiHV) with up to 16 cells, and is also equipped with built-in 16-channel balancers, which ensure their safe charging. The charger is equipped with a color LCD display and programming buttons, which will provide you with the possibility of comfortable and very clear setting of parameters, control and monitoring of the charging / discharging process.

In addition to the really high power for charging up to 16S batteries and intuitive operation, it is worth mentioning:

• program for new types of "high-voltage" lithium batteries LiHV with terminal voltage for charging up to 4.35 V and ULiHV with terminal voltage 4.45 V
• powerful balancer with current up to 1.5 A
• possibility of parallel operation of both channels for charging one battery with power up to 1800 W
• adjustable end voltage for charging and discharging for lithium batteries (allows more gentle charging, which pilots like, or, conversely, brutal overcharging, which is enjoyed by "toy cars")
• Bluetooth module for wireless setting and control of the charger on a smartphone in the isdGO application

Overview of basic functions and parameters

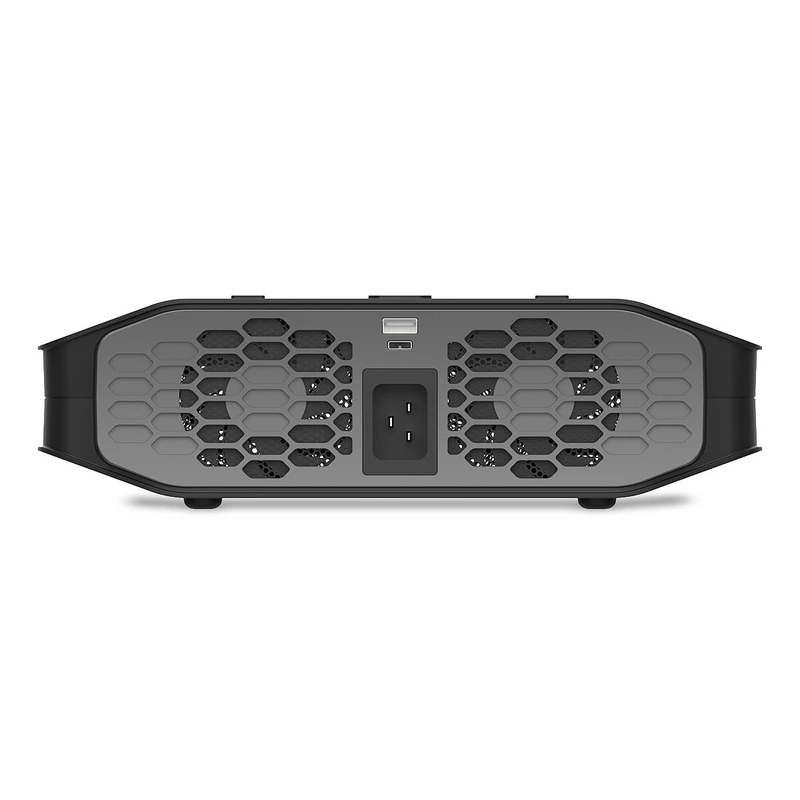

• Mains supply 100-240 V / 50-60 Hz
• For charging and discharging 2 - 16 Li-poly / Li-Fe / LiHV / ULiHV cells
• Adjustable charging current (1.0 A - 20.0 A) in each channel
• Adjustable discharge current 0.5 A - 3.0 A
• Max. charging power 2x 1100 W, 1x 1800W in parallel operation
• Max. power for discharging 2x 50 W
• Lithium batteries are charged using the "constant current / constant voltage" method
• Adjustable charging and discharging voltage for lithium batteries
• Three modes for lithium batteries - charging, discharging and storage charging / discharging; all with or without a balancer / li>
• Easy firmware update via USB-C port
• USB 2.0 output 5 V / 2 A for powering / charging smartphones, etc.
• Backlit color LCD display with simple and clear menu and display of parameters during charging / discharging

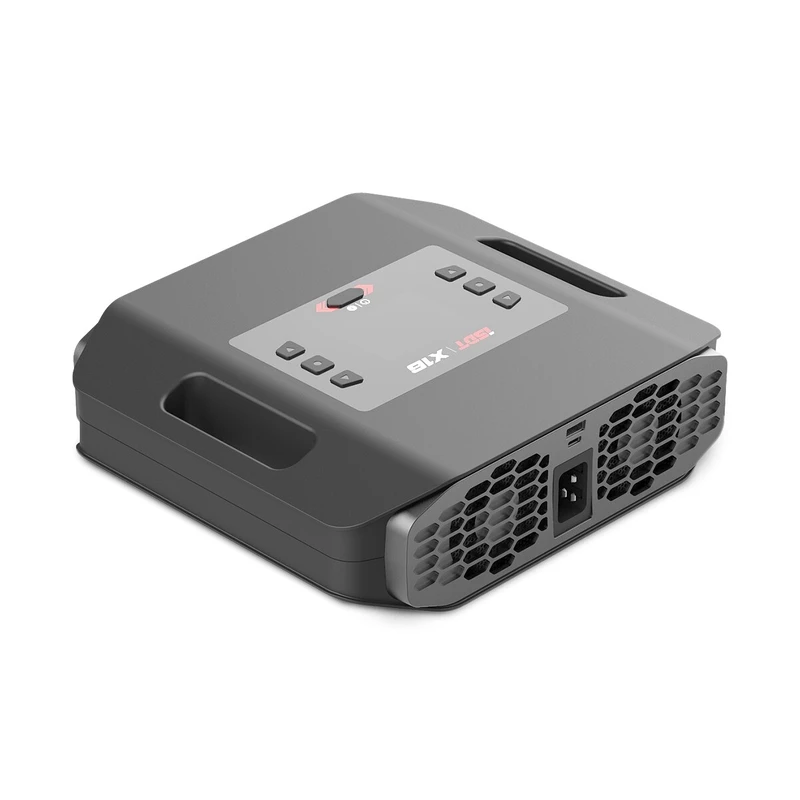

• Programming buttons for easy and clear setting and control of the charger
• A number of warning messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or its condition, incorrect polarity at the output, etc.
• Forced cooling fan.
• Compact plastic cabinet with practical handles

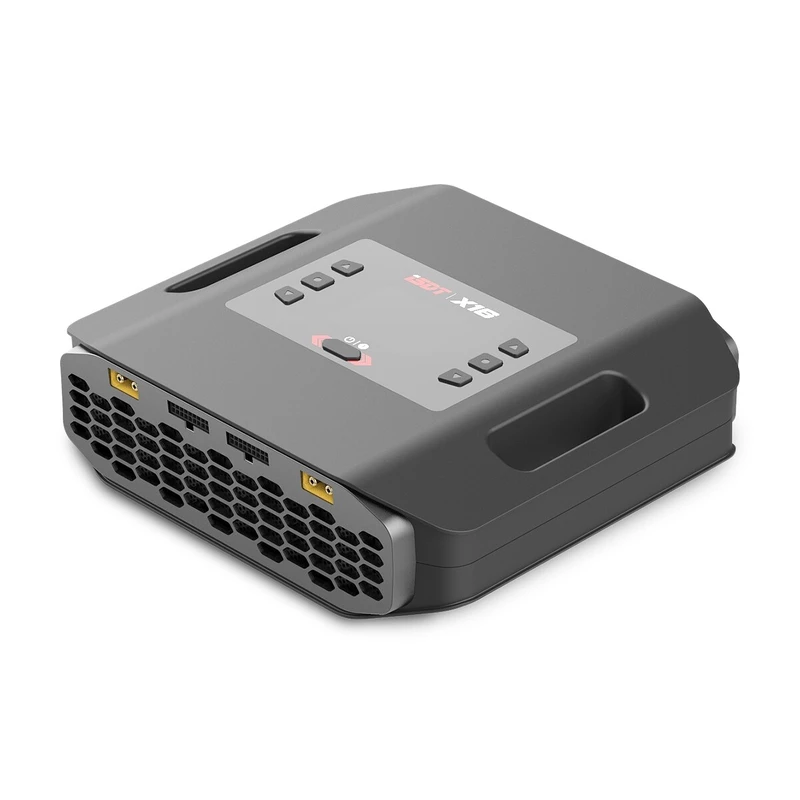

The charger is equipped with XT90 output sockets and 18-pin balancer sockets in both channels. Two cables with 18-pin connectors are supplied with the charger for connecting the service connectors.

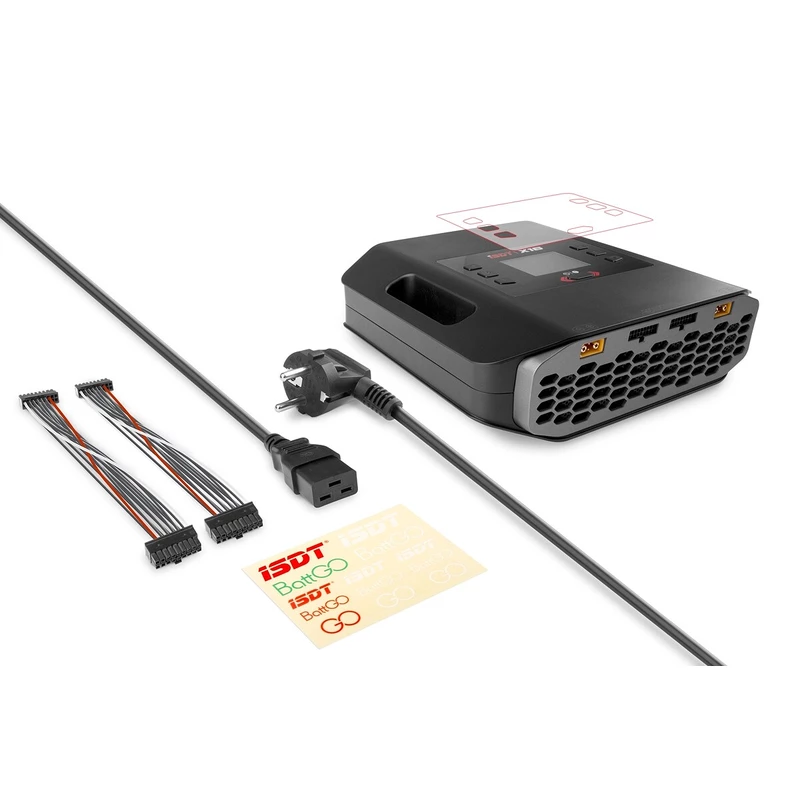

The charger set includes: ISDT X16 charger, mains cable, 2 cables with 18-pin connectors, display protector, instructions.
