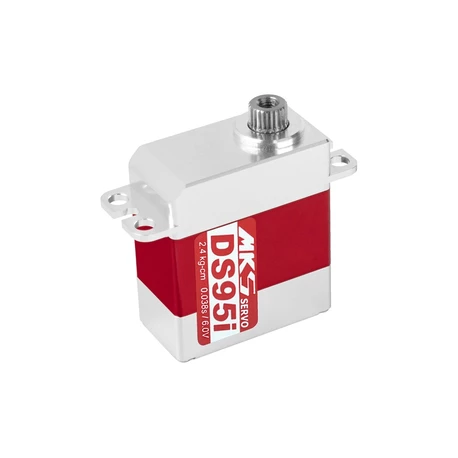

Ultra-fast narrowband (760µs) metal-geared digital microservo with output shaft mounted on two ball bearings. Ideal for 380-420 size mini helicopter trim rotors, compatible with most 760µs gyros and flybarless units. For perfect cooling even under heavy load, the servo is housed in an aluminum box. The servo is not programmable.
Supply voltage 4.8-6.0 V (nominal).
| Servo size | Micro |
| Servo type | Digital |
| Programmable | No |
| Thrust at 4.8 V [kg•cm] | 1.92 |
| Thrust at 6.0 V [kg•cm] | 2.4 |
| Speed at 4.8 V [s/60°] | 0.047 |
| Speed at 6.0 V [s/60°] | 0.038 |
| Control pulse width in neutral [µs] | 760 |
| Repetition frequency [Hz] | 560 |
| Deadband [ms] | 0.0005 |
| Servo transmissions | Metal |
| Ball bearings | 2× |
| High voltage | No |
| Power supply [V] | 4.8 - 7 |
| Length [mm] | 23 |
| Width [mm] | 12 |
| Height [mm] | 27.25 |
| Weight [g] | 21.21 |
| Intended for | Airplanes, Helicopters |
