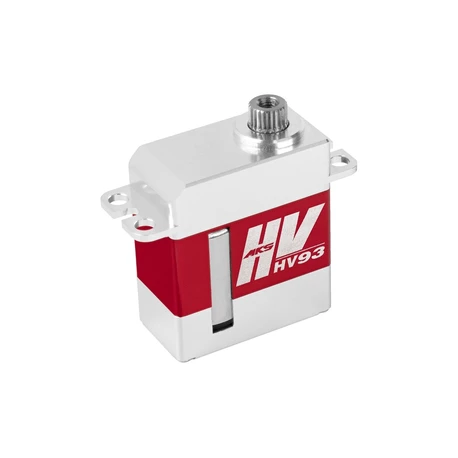

HV93 (0.05s/60°, 3.2kg.cm)

Strong and ultra-fast programmable digital micro servo with metal gears with output shaft mounted on two ball bearings. Ideal for cycling mini helicopters size 380-420. For perfect cooling even under heavy load, the servo is housed in an aluminum box.

Supply voltage 6.0-7.4 V (nominal).

With the help of the USB programmer/interface for DSP-1 servos and the operating PC program, you can program a whole range of servo parameters:
STANDARD FUNCTIONS
Dead Band: The width of the dead band indicates the amount of change in the width of the control signal pulses at which the position of the output shaft/servo lever has not yet changed. MKS default setting = 1 µs or 1.1 µs
Lock: Setting the behavior of the servo if it does not receive a control signal - Maintains the position corresponding to the last received signal / The motor is free, the servo does not maintain any position.
Max. Duty (Max. engagement): The degree of engagement of the motor will be limited by this value - it limits the max. output of the servo motor.
Pulse Lower (Min. pulse width): The lower limit of the control pulse width and the corresponding servo deviation size will be limited by this value.
Neutral: Adjusts the width of the control pulses in the neutral/center position of the servo.
Pulse Upper (Max. pulse width): The upper limit of the control pulse width and the corresponding servo deviation size will be limited by this value.
Boost: Engine power when starting from rest. The larger the value, the more force the motor starts.
