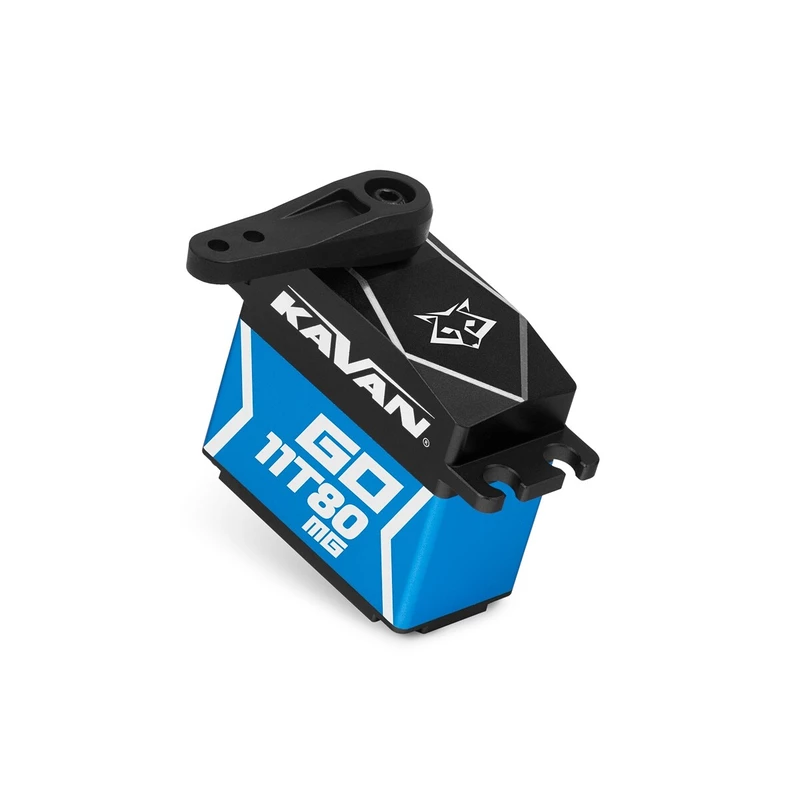

Strong and extremely fast narrowband digital standard 79g servo with AC (brushless) motor with titanium/steel gears and output shaft mounted on three ball bearings for use as a rotor balance servo in 500-800 RC helicopters. For perfect cooling even under heavy load, the servo is housed in an aluminum box.
Narrowband servo - neutral 760 µs, repetition rate up to 666 Hz - only for use with compatible gyro systems/flybarless control units as a trim (tail) rotor servo; cannot be connected directly to the output of a common receiver (neutral 1520 µs). Make sure to set the correct type (narrow band) servo on your gyro/control unit.
The servo is not programmable.
Extended supply voltage 4.8-7.4 V (nominal).
25 Tooth/5.92mm Hex Output Shaft.
| Servo size | Standard |
| Servo type | Digital |
| Programmable | No |
| Thrust at 4.8 V [kg/cm] | 12 |
| Thrust at 6.0 V [kg/cm] | 14 |
| Thrust at 7.4 V [kg/cm] | 15.5 |
| Thrust at 8.4 V [kg/cm] | 18.5 |
| Speed at 4.8 V [s/60°] | 0.045 |
| Speed at 6.0 V [s/60°] | 0.039 |
| Speed at 7.4 V [s/60°] | 0.34 |
| Speed at 8.4 V [s/60°] | 0.03 |
| Servo transmissions | Metal, Titanium |
| Ball bearings | 3x |
| High voltage | Yes |
| Power supply [V] | 4.8 - 8.4 |
| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 37.5 |
| Weight [g] | 79 |
| Intended for | Helicopters |
