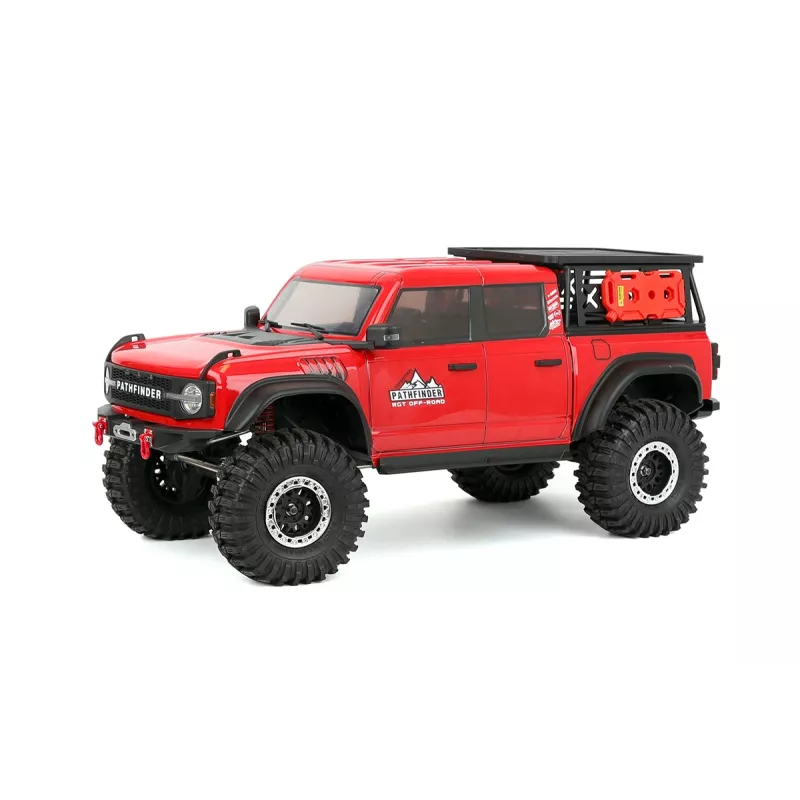

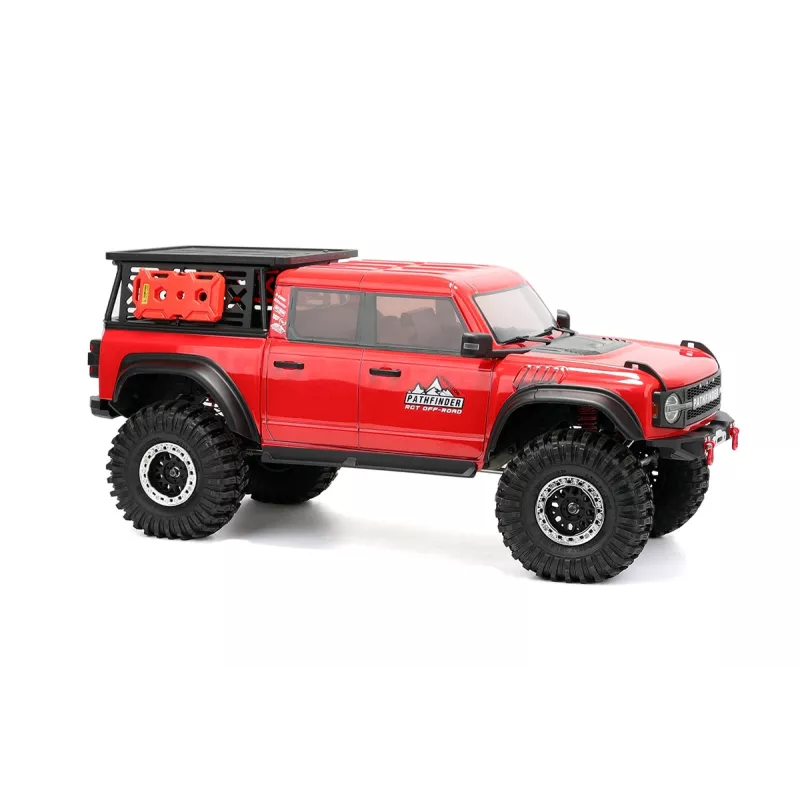

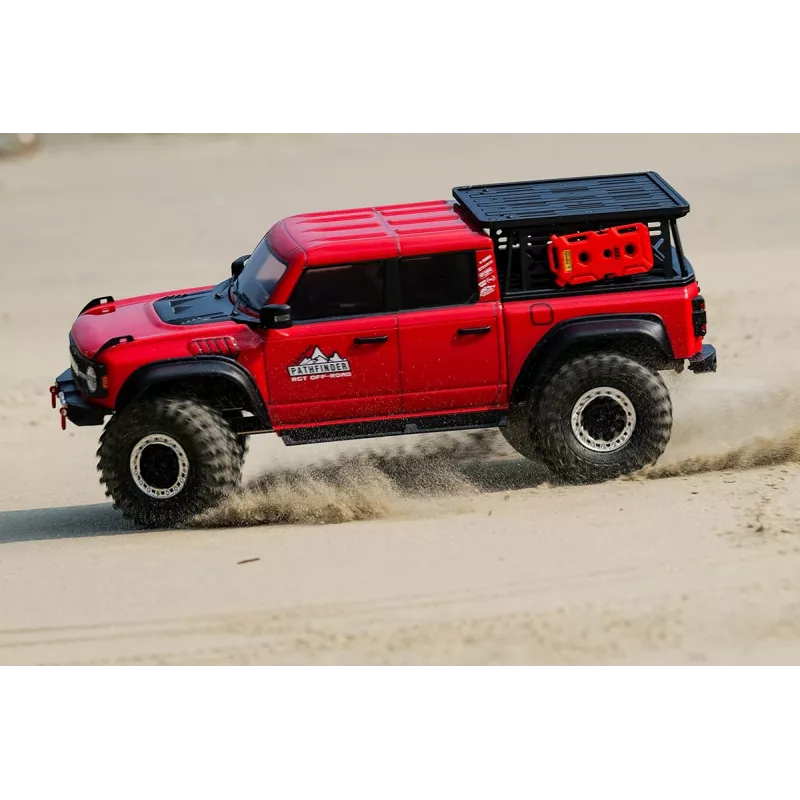

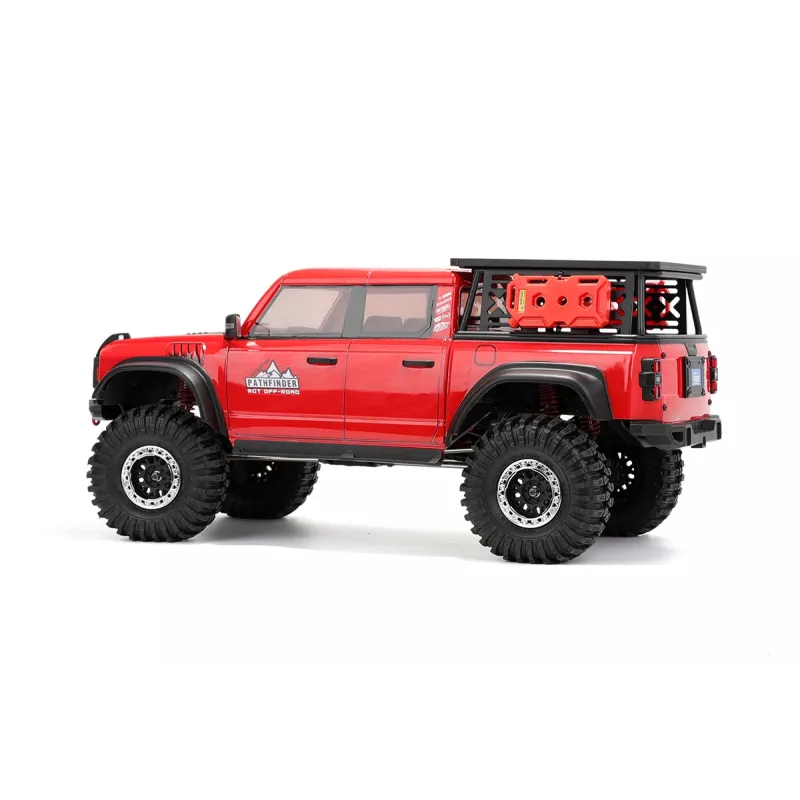

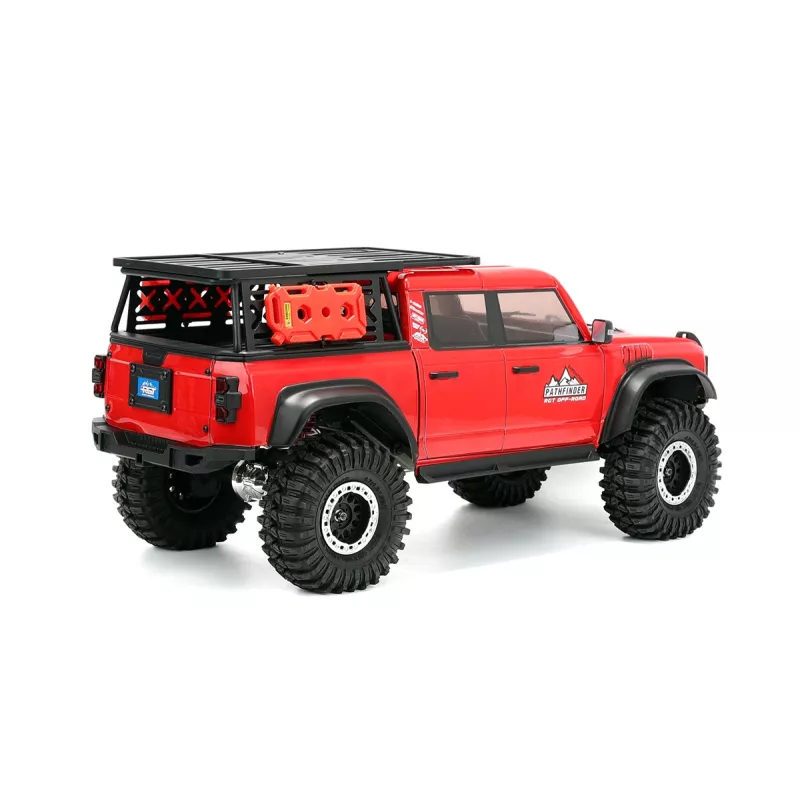

PATHFINDER 1/10 set 2.4GHz, Red

RGT PATHFINDER

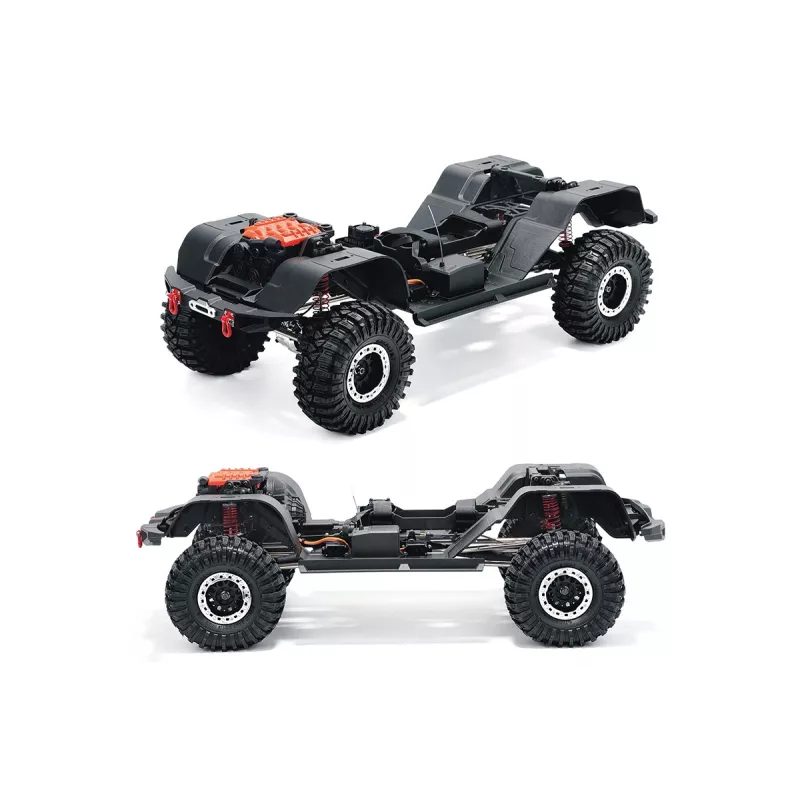

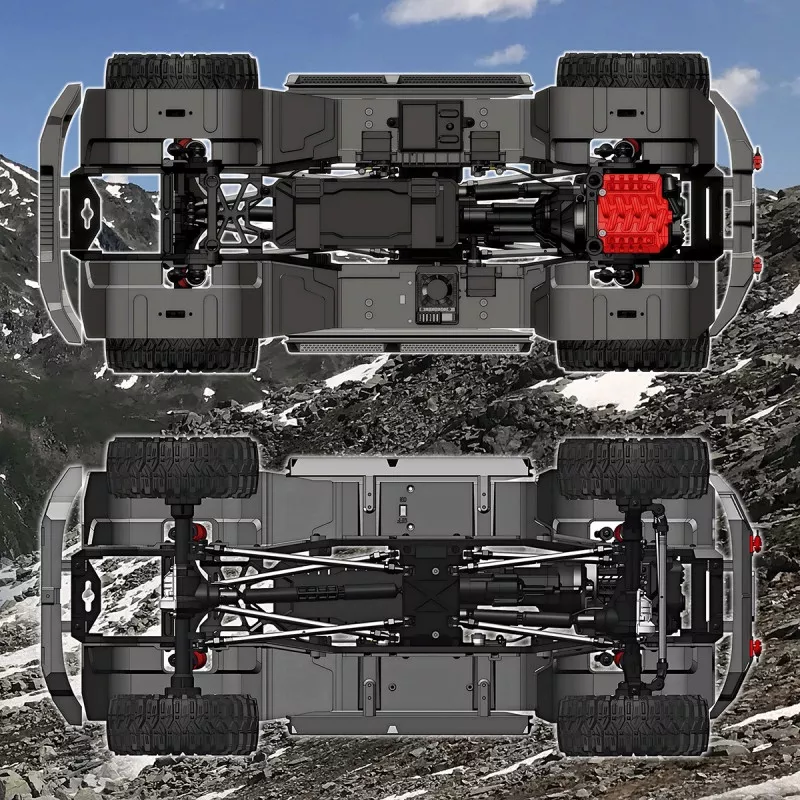

The Pathfinder is a brand new 1/10th scale expedition model based on the LC76 chassis platform (RESCUER model) and aims to build a rock crawler with a long wheelbase. The 355 mm long wheelbase gives the vehicle a smoother and more stable driving experience.
The Pathfinder is equipped with a front and rear integrated portal axle structure, a front and rear differential lock function and a two-speed reverse gear.

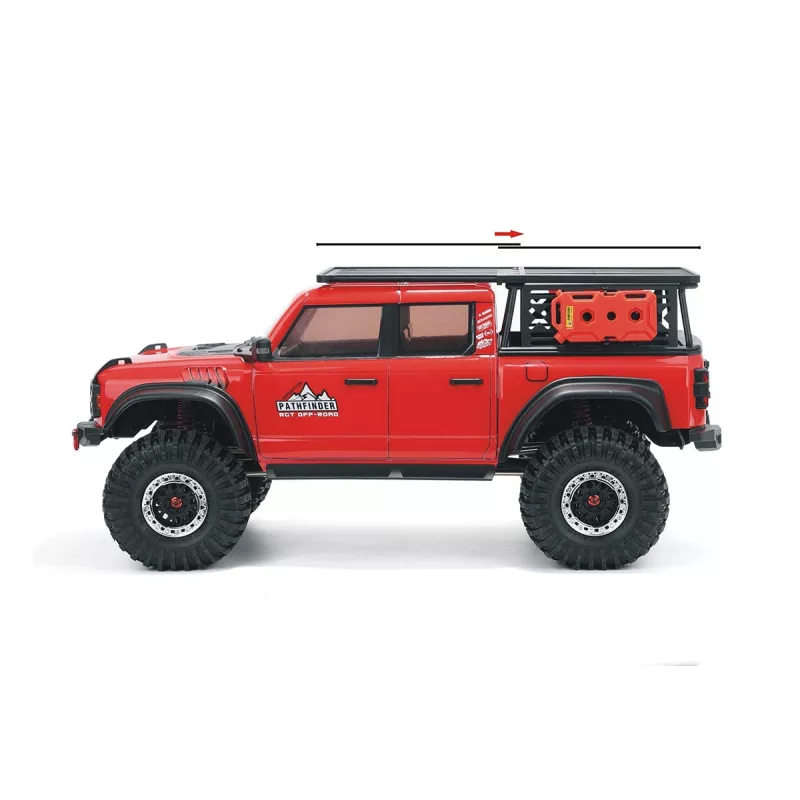

The body has been given a pickup appearance, which makes the overall center of gravity lower and provides a greater approach angle of the vehicle. It comes with a 1.5 mm thick polycarbonate body incl. interior. It is equipped with a multifunctional nylon luggage rack that can be freely combined with various outdoor model equipment.
Taking into account the needs of drivers who want to handle a heavy load, the Pathfinder is equipped with a high-performance 80A speed controller, which is standardly used for 1/8 cars, a 7.4V BEC output, and an RC550 motor.
The Pathfiner comes with a multi-mode LED light system and a 6-channel 2.4GHz remote control. It has 4 powerful servos with metal gears, including a 30kg steering servo.

Features:

• Front mounted motor and 2-speed gearbox with reverse rotation.
• Portal axles with reduction gears and 42 degree steering angle.
• Independently controlled front and rear differential locks.
• Fully equipped with ball bearings, durable metal gears and friction clutch.
• Adjustable oil filled metal "piggyback" shock absorbers with dual springs.
• 1.5mm lexan body with transparent windows, accessories, hidden pillars and dedicated LED light module with magnetic connector.
• Realistic 1.9 inch wheels.
• Powerful 20T RC550 DC motor, 80A HobbyWing controller and 30Kg strong waterproof servo with metal gears.
• 2.4GHz 6-channel radio with buttons for controlling the gearbox servos, 2 servos for controlling the differential locks and an LED light module.

The package set includes:

• Assembled model ready to drive
• 2.4GHz RC steering wheel set
• Model accessories

Required accessories: 4xAA batteries for the transmitter, 7.4V LiPo or 11.1V LiPo drive battery and a suitable charger.

** Spare parts that are not in our offer can be ordered from the manufacturer upon request. You can find a complete list of them in the manual.

Scale	1:10
Wheelbase [mm]	355
Width [mm]	248
Height [mm]	250
Length [mm]	566
Weight [kg] [kg]	3.68
Transmitter batteries	4×AA
Frequency [GHz]	2.4
Servo gears	Metal
Li-Po [cell]	2
Li-Po [cell]	3
