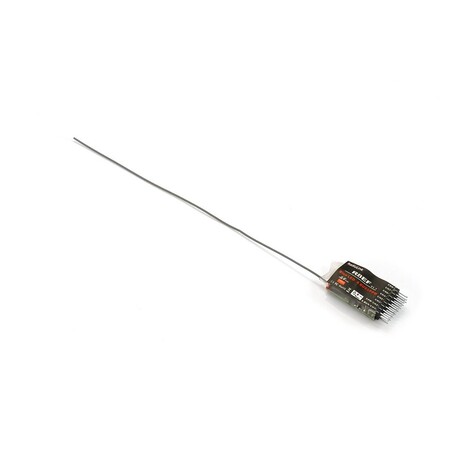

R8EF receiver
1RL0046
RadioLink
Eight-channel 2.4GHz FHSS receiver for Radiolink T8FB transmitters. PWM operating mode: 8 individual servo channel outputs. S-BUS operating mode: S-BUS serial output + PPM + 6x PWM channels (total 8 channels). Dimensions 41.5x21.5x11.5mm, 7g.
Express delivery
Large selection of carriers
Satisfaction guarantee
Radiolink R8EF 2.4GHz is an 8-channel frequency hopper FHSS compatible with Radiolink T8FB transmitters. It offers two operating modes - with standard PWM signal servo outputs (8 channels) or with S-BUS + PPM serial outputs (8 channels).
The receiver is suitable for slow-flyers and park-flyers, race drones and other smaller models (manufacturer's range is 500 m on the ground and 1000 m in the air).
The use of FHSS transmission technology delivers high interference immunity and fail-safe capability in case of power failure or strong interference.
Operating modes
- With individual PWM signal outputs serv: red LED indicates PWM signal output, 8 channels in total.
- With SBUS serial output: The blue / purple LED signals the SBUS + PPM signal output, a total of 8 channels. SBUS, PPM and PWM signals are available simultaneously. CH1 output of S-BUS signal, CH2 output of PPM signal, CH3 to CH8 output of PWM signal.
The pairing with the transmitter is done with the help of a pairing button on the receiver, the operating states are indicated by an LED.
The receiver is equipped with contact strips for standard UNI connectors (= JR / Graupner, Hitec, Futaba); the outlets are oriented in the direction of the longitudinal axis of the receiver.
The receiver set includes: R8EF receiver, instructions.
| Modulation / Encoding | 2.4GHz FHSS |
| Number of Channels (PWM) - (S-BUS + PPM) | 8 |
| Serial output | PPM, S-BUS |
| Function | Fail-safe |
| Power supply | 4.8V, 6V, 7.2V, 7.4V |
| Unserved [mA] | 30 |
| Length [mm] | 48.5 |
| Width [mm] | 21 |
| Height [mm] | 11 |
| Weight [g] | 7 |
- Napájení
- 4,8 V,6 V,7,2 V,7.4V,12 V,9,6 V,3,6 V,3,7 V,6,4 V,6,6 V
- Funkce
- Fail-safe
- Délka [mm]
- 48.5
- Hmotnost [g]
- 7
- Šířka [mm]
- 21
- Výška [mm]
- 11
- Modulace/Kódování
- 2.4GHz FHSS
- Sériový výstup
- PPM,S-BUS
- Odběr bez serv [mA]
- 30
- Počet kanálů (PWM) - (S-BUS+PPM)
- 8
