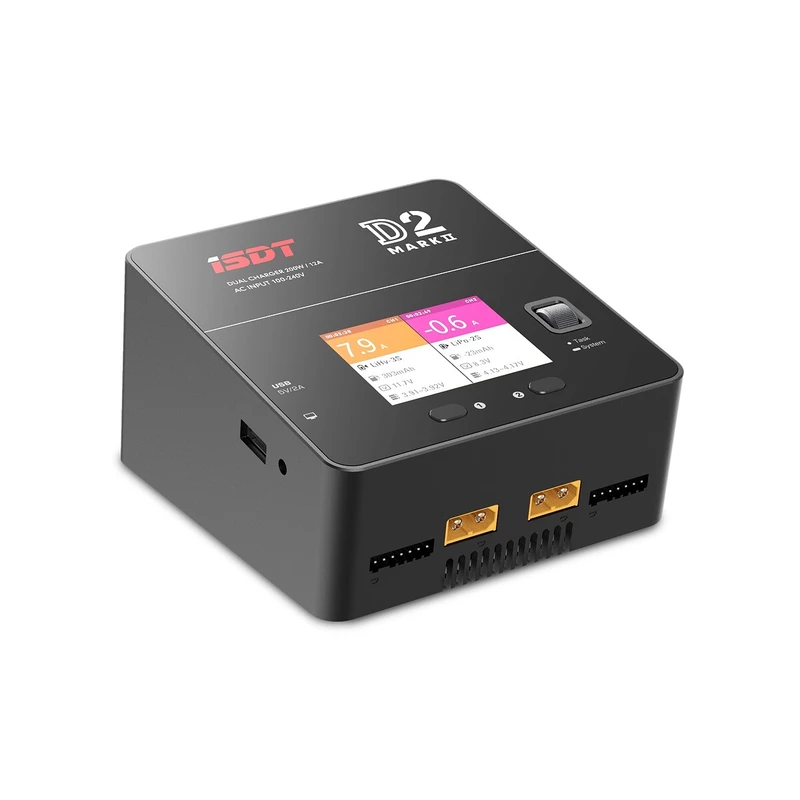

The small two-channel charger ISDT D2 Mark II 2x200W is an intelligent high-performance charger with mains power and very simple and clear operation. D2 Mark II allows you to charge and discharge common types of cells (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), in addition, it is equipped with built-in six-channel balancers, which ensure safe charging of lithium batteries. The charger is equipped with a color LCD display, programming buttons and a wheel, which will provide you with the possibility of comfortable and very clear setting of parameters, control and monitoring of the charging process.
In addition to the compact "bigger palm" design and intuitive operation, it is worth mentioning:
- program for new types of "high-voltage" lithium batteries LiHV with terminal voltage for charging up to 4.35 V and ULiHV with terminal voltage 4.45 V
- possibility of synchronous operation of both channels for charging two identical accumulators or parallel charging of one accumulator with power up to 300 W
- adjustable charging end voltage for lithium batteries (allows for more gentle charging, which pilots like, or, conversely, brutal recharging, which is enjoyed by "toy cars")
- adjustable terminal voltage for charging for lead-acid batteries (2.00-2.40 V; allows charging of all types of lead-acid batteries)
Overview of basic functions and parameters
- Mains supply 100-240 V / 50-60 Hz
- For charging and discharging 1 - 16 NiCd / NiMH cells, 1 - 6 Li-ion / Li-poly / Li-Fe / LiHV / ULiHV cells or 2- 24 V lead-acid batteries
- Adjustable charging current (0.2 A - 12.0 A) in each channel (max. 200 W)
- Max. power for charging 1x 300W in parallel charging mode
- Adjustable discharge current 0.1 A - 1.5 A in each channel
- Max. power for discharging 2x 15 W
- End of charging using delta-peak automation for NiCd and NiMH batteries
- Lithium and Pb batteries are charged using the "constant current / constant voltage" method
- Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
- Adjustable charging end voltage for lithium batteries
- Three modes for lithium batteries - charging, discharging and storage charging / discharging; all with or without a balancer. In addition, a disposal discharge mode for safe discharge of a discarded battery before it is handed over for recycling
- Channel CH1 can operate as a stabilized source with an adjustable voltage of 2-24 V and a current of 1.0-5.0 A
- Easy firmware update via update port and ISDT scLinker USB interface (sold separately)
- Backlit color LCD display with simple and clear menu and display of parameters during charging
- Programming buttons and wheel for easy and clear setting and control of the charger
- A number of warning messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or its condition, incorrect polarity at the output, etc.
- Forced cooling fan.
- Compact plastic case, small dimensions
The charger is equipped with XT60 output sockets and universal sockets for JST-XH service connectors in both channels, enabling direct connection of battery power cables and JST-XH service connectors of 2-6S sets - if you use sets with XT60 and JST-XH connectors, you can do without charging cables and adapters. You can use standard Sky RC or RC System adapters to connect the service connectors of other systems.

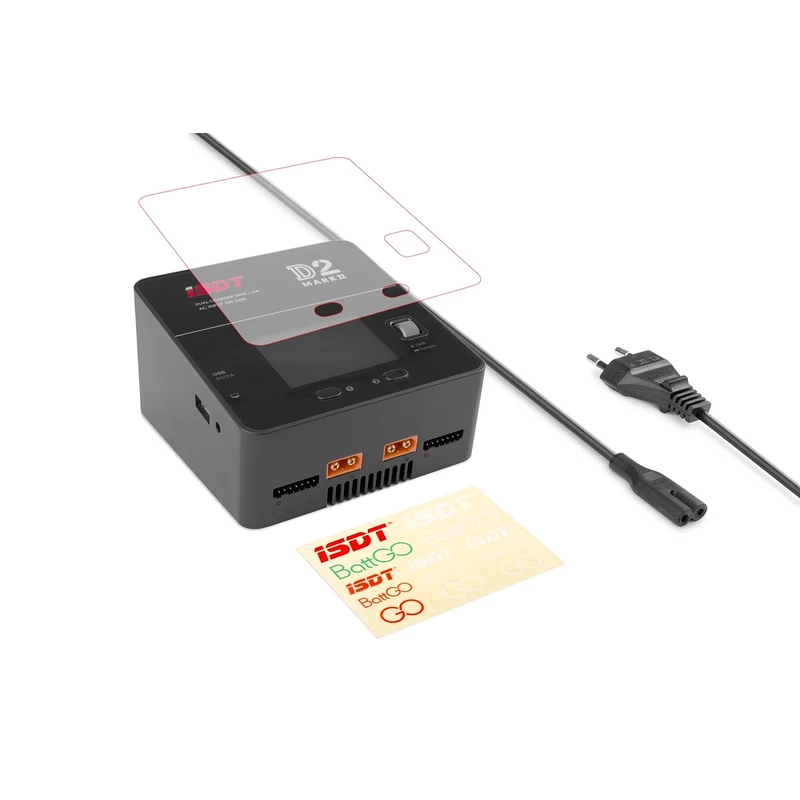

The charger set includes: ISDT D2 Mark II charger, mains cable, screen protector, instructions.
| Input voltage (mains - AC) [V] | 100 - 240 |
| Charging current [A] | 0.2 - 12 |
| Charging power [W] | 200 |
| Discharge current [A] | 0.1 - 105 |
| Discharge power [W] | 15 |
| Number of channels | 2 |
| NiCd [art] | 1 - 16 |
| NiMH [art] | 1 - 16 |
| Li-Pol [Art] | 1 - 6 |
| Li-Ion [Art] | 1 - 6 |
| Li-Fe [art] | 1 - 6 |
| Li-HV [art] | 1 - 6 |
| Pb [article] | 1 - 12 |
| Balancer | Yes |
| Balancer current [A] | 1.5 |
| Length [mm] | 120 |
| Width [mm] | 108 |
| Height [mm] | 70 |
| Weight [g] | 558 |
