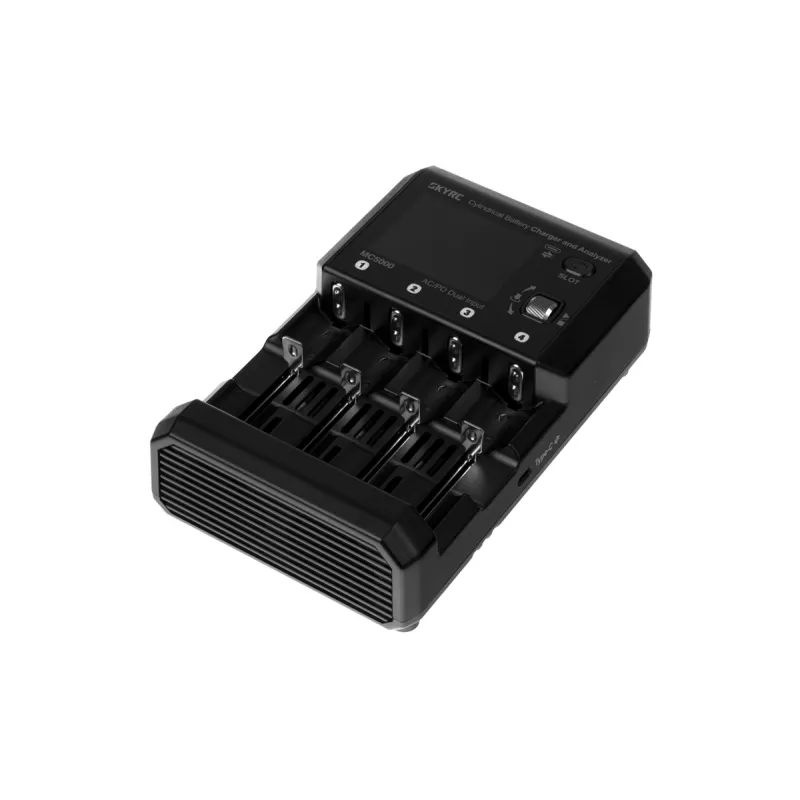

SKY RC MC5000 Cylindrical Battery Charger and Analyzer

A multifunctional four-channel charger/discharger with mains power supply providing complete and truly comfortable care for your cylindrical battery packs of all common types (NiMH, NiMH – Eneloop, NiCd, NiZn, Li-ion, Li-ion HV, LiFePO4, NiZn, RAM, LTO, Na-ion). The charger's intelligent programs take care of your batteries from initial low-current formation, through regular (fast) charging or discharging, cyclic charging/discharging, maintenance charging, storage charging/discharging to capacity testing and reviving long-term operated cells or, conversely, long-term stored cells.

The M53000 allows you to simultaneously - and independently - charge or discharge up to four different cylindrical battery packs. There is also a synchronous mode for charging cells of the same type - just enter the charging parameters for one channel and the others will work with the same settings.

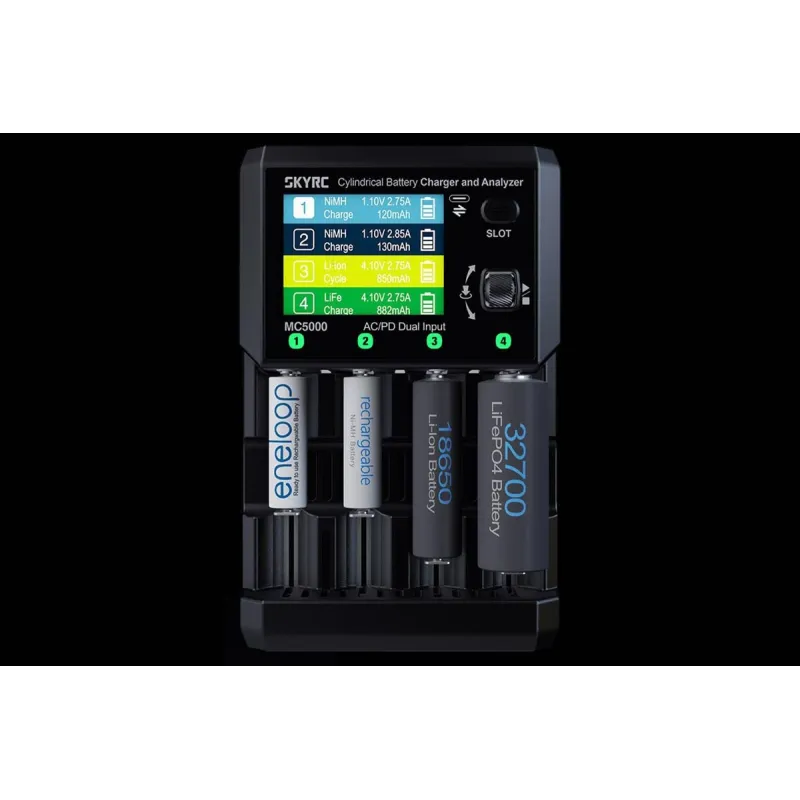

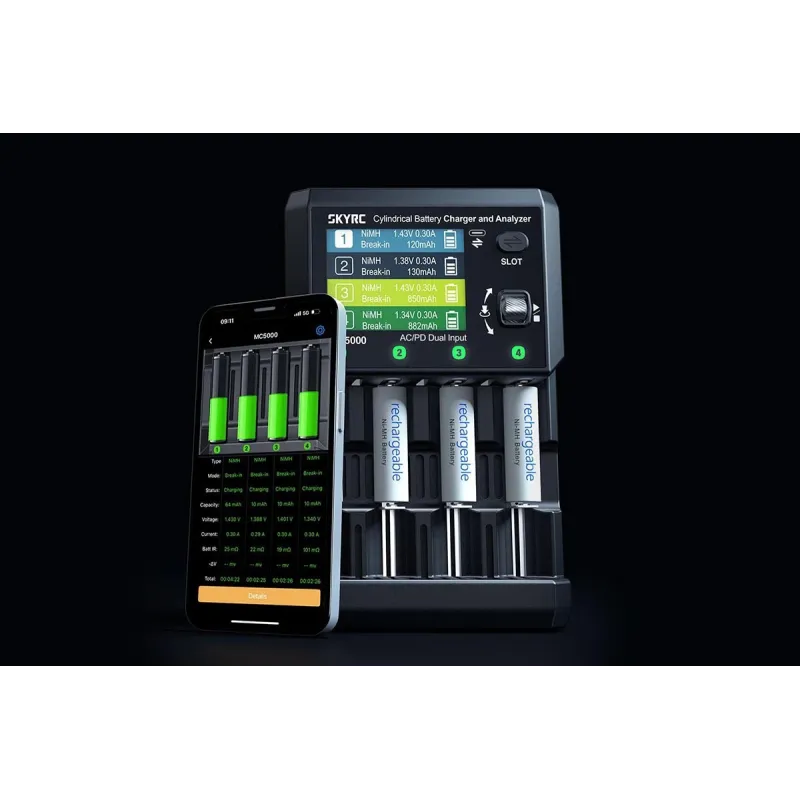

The parameters of the ongoing process (charging/discharging current, charged/discharged charge, battery voltage) are continuously displayed for all channels on the LCD display. A graphic display of the charging/discharging curve is also available. The built-in Bluetooth module allows you to set up and monitor the charging process in the SkyCharger mobile application (iOS and Android) as well as update the charger firmware.

Operating the charger and using your batteries will be made easier by a detailed manual describing the principles of proper charging and battery operation.

Basic functions

• Input supply voltage 100-240 V/50-60 Hz mains power supply
• For charging and discharging up to four cells in a cylindrical case (NiMH, NiMH - Eneloop, NiCd, NiZn, Li-ion, Li-ion HV, LiFePO4, NiZn, RAM, LTO, Na-ion) with a capacity of 100-10 000 mAh
• Can be used for batteries of sizes: up to four AAAA, AAA, AA, Sub-C, C, 10340, 10350, 10440, 10500, 12340, 12500, 12650, 13450, 13500, 13650, 14350, 14430, 14500, 14650, 16340, RCR123, 16500, 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22500, 22650, 25500, 26500, 26650, 26700, up to two D cells together with up to 2 other cells, up to two 32600, 32650, 32700 cells together with up to 2 cells smaller than C
• Adjustable charging current 0.05 A - 5.00 A
• Adjustable discharging current 0.05 A - 2.00 A
• Max. charging power 80 W
• Max. discharge power 20 W
• Operating modes: Charge, Discharge, Storage, Cycle, Refresh, Break-in
• Termination of charging using automatic delta-peak for NiMH and NiCd, charging using the constant current/constant voltage method for other types
• Adjustable end voltages and currents for charging and discharging
• Adjustable delta-peak detection sensitivity 3-12 mV for NiMH/NiCd
• Repeated cyclic operation of charging/discharging or discharging/charging (1 to 3 cycles) for NiMH/NiCd
• Termination of charging or discharging when the set time is exceeded (30-1440 min)
• Battery formation (charging and discharging with small current)
• Maintenance charging 50-300 mA
• Parameter setting and menu navigation using buttons on the charger or in the mobile application on a smartphone (iOS or Android operating system) via Bluetooth

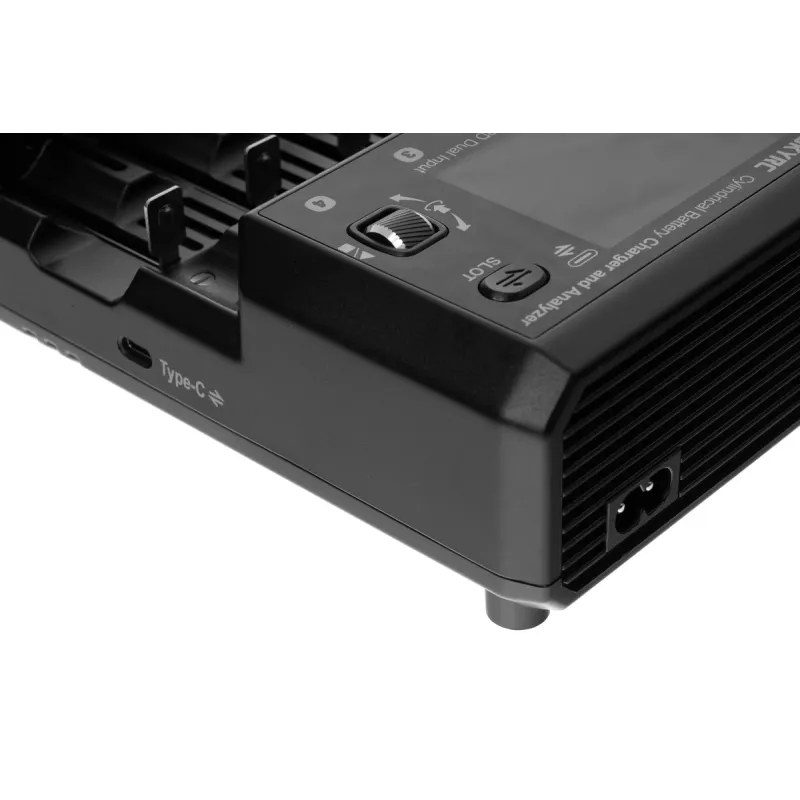

• USB-C power socket with PD3.0 protocol support max. 65 W for powering/charging smartphones, tablets, digital cameras, etc.
• Backlit LCD display 320x240 pixels with a simple and clear menu and displaying parameters during charging
• Forced cooling by a fan with intelligent control
• Compact solid plastic case

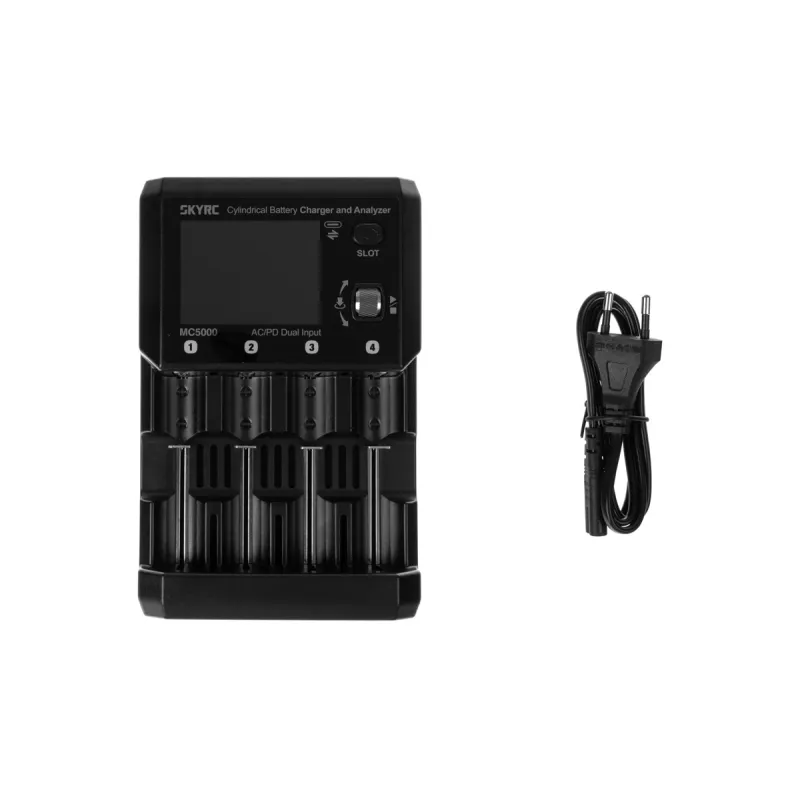

The charger set includes: MC5000, power cable (EU), instructions.
