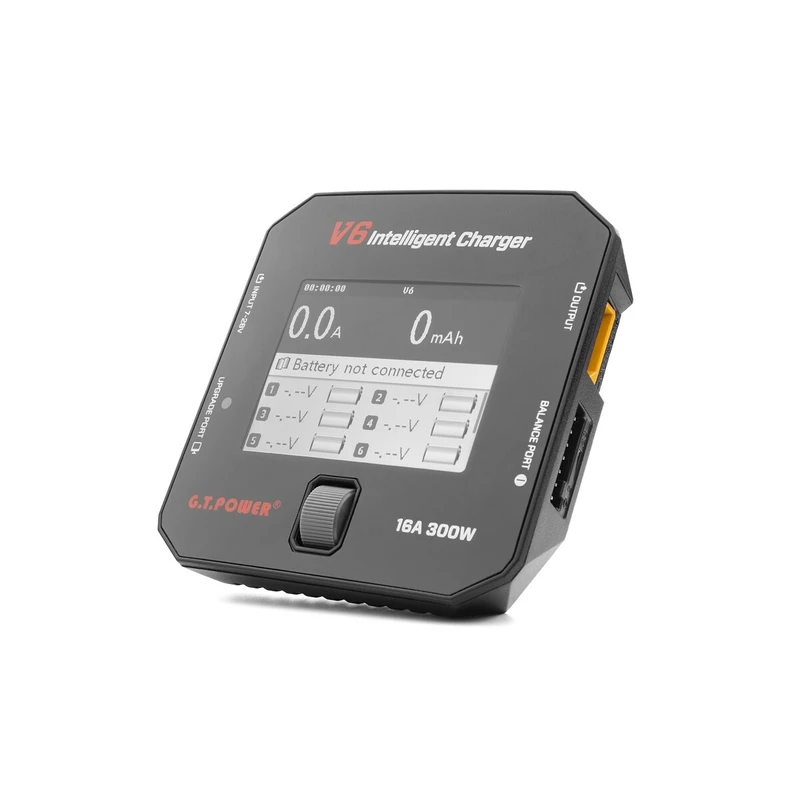

The GT POWER V6 300W charger has been designed to offer an intelligent handheld charger with great power and very simple and clear operation. The V6 allows you to charge and discharge common cell types (NiCd, NiMH, LiPo, LiHV, Li-ion, LiFe, Pb) and is equipped with a built-in six-channel balancer that ensures very safe and comfortable charging of lithium batteries.
In addition to an extremely compact palm-sized design and intuitive operation with a single swivel castor / button, it is worth mentioning:
- adjustable end-to-line voltage for charging and discharging for lithium batteries (allows for more fuel-efficient charging, or brutal overcharging for the "toy")
- adjustable terminal voltage for charging and discharging for lead-acid batteries - the V6 is one of the few current model chargers to safely charge gas-tight gel batteries and normal batteries
- measurement of total voltage and voltage of individual cells (for lithium accumulators)
- measurement of internal resistance of individual cells during charging (for lithium batteries)
- micro USB port for firmware update
Overview of basic functions and parameters
Input supply voltage 7 - 28 V dc For charging and discharging 1 - 16 NiCd / NiMH cells, 1-6 Li-ion / LiPo / LiFe / LiHV cells or 2- 24V lead-acid batteries Adjustable charging current (0.1 A - 16.0 A) Adjustable discharge current (0.1 A - 3.0 A) Max. power for charging 300 W, discharge 5 W Charging termination with the delta-peak for NiCd and NiMH accumulators Lithium and Pb accumulators are charged using the "Constant Current / Constant Voltage" Adjustable sensitivity of delta-peak detection for NiCd and NiMH accumulators Adjustable terminal voltage for charging and discharging for lithium and lead-acid accumulators Four charging modes for lithium batteries - fast charging, normal charging, charging with balance and storage charging / discharging Total voltage measurement of the kit and individual cells (for lithium batteries) Measurement of total internal resistance of individual cells during charging (for lithium batteries) Micro USB port for charger firmware upgrade Color-backlit LCD display with easy and clear menu and parameter display during charging / discharging A number of warning text messages - incorrect input voltage, poor wiring, unsuitable battery or its status, wrong output polarity, etc. - contribute to safe operation, etc. <" / li> Reverse polarity protection and short circuit protection. Charger power and charger sockets for XT60 connectors. Compact plastic cabinet, small size Built-in ventilator for forced coolingIf you also connect the charging lithium kit via the service connector, you can track the voltage on each cell throughout charging or discharging, and the built-in balancer balances the voltage on the individual cells. The charger is equipped with a JST-XH service connector, and you can attach additional sets of adapters by using customized adapters.
Note: When charging lead-acid accumulators, the charger allows to set the terminal voltage in the range of 2.00-2.40 V / cell - this is why it is suitable for charging gas-tight gel accumulators that can not be charged more than 2.30 V / cell, as for charging conventional lead-acid batteries (battery) and gel rechargeable batteries with reversible valve.

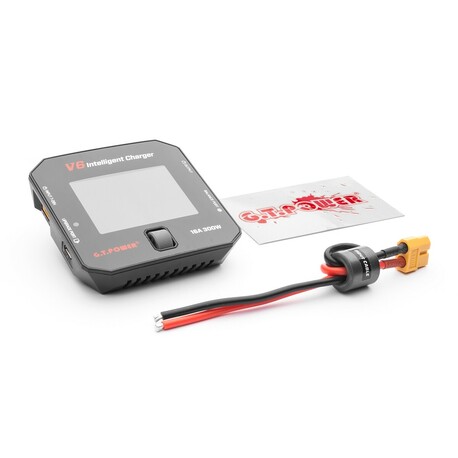

The charger kit includes: V6 charger, 12 V power cable with XT60 connector, instructions.
Input Voltage (Car Battery - DC) [V] | 7 - 28 |
Charging current [A] | 0.1 - 16 |
Charge power [W] | 300 |
Discharge current [A] | 0.1 - 3 |
Discharge power [W] | 5 |
Number of channels | 1 |
NiCd [Article] | 1 - 16 |
NiMH [Article] | 1 - 16 |
Li-Pol [Article] | 1 - 6 |
Li-Ion [art.] | 1 - 6 |
Li-Fe [Article] | 1 - 6 |
Li-HV [Article] | 1 - 6 |
Pb [article] | 1 - 12 |
Balancer | Yes |
Balancing current [A] | 1 |
Length [mm] | 80 |
Width [mm] | 80 |
Height [mm] | 32 |
Weight [" G] | 120 |
