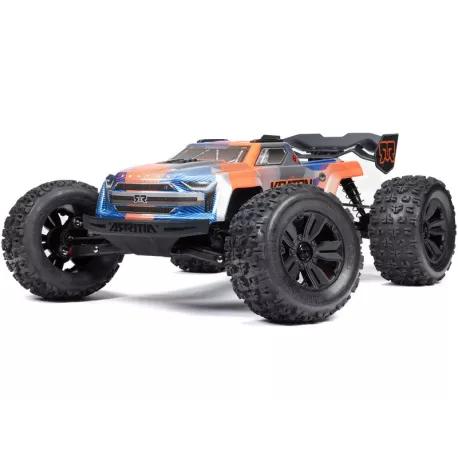

Arrma Kraton 6S V6 BLX 1:8 4WD RTR Blue/Orange
Express delivery
Large selection of carriers
Satisfaction guarantee
Package contents
The package includes a fully assembled Arrma Kraton 6S BLX RC car model with installed components: Firma™ 150A V2 Smart brushless controller, Firma 4074 2050Kv motor, Spektrum SR315 DSMR receiver, Spektrum S665 18kg MG servo. The package also includes a Spektrum SLT3 2.4GHz transmitter. Accessories: large cross wrench (7/8/10/17 mm), small cross wrench (4/5/5.5/7 mm). Allen key 1.5, 2.0, 2.5 mm, 4x washer 13x16x0.2 mm, shorting jumper IC5, 4x AA batteries for the transmitter. Instructions CZ and manual EN, DE, FR, IT.
Characteristics

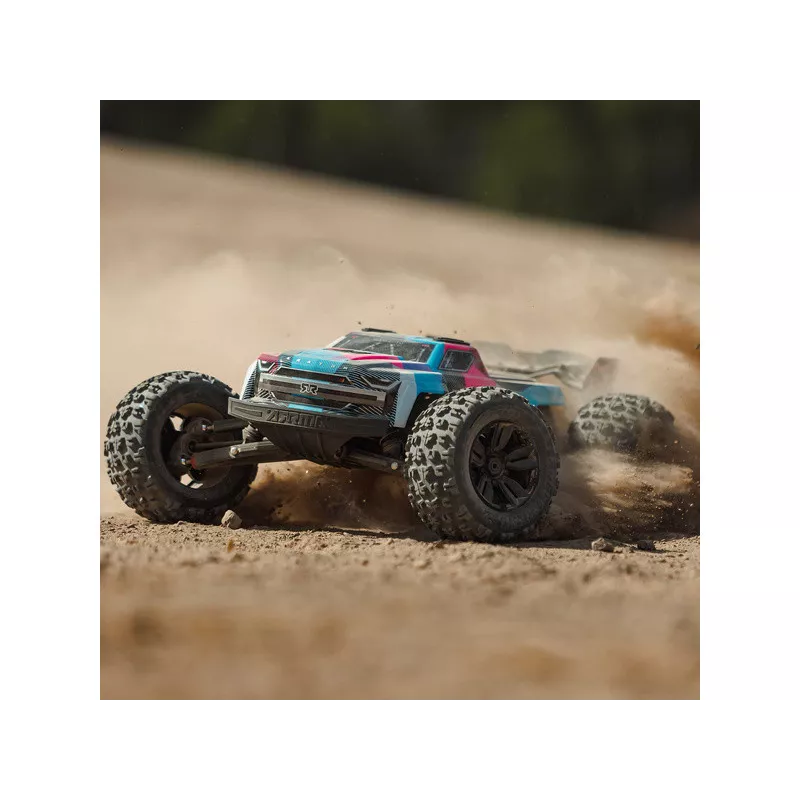

The new V6 version of the legendary Arrma Kraton 6S BLX 1:8 scale RC car model, which takes its impressive speed and power to the next level and adds key improvements for durability. High-strength EXB (Extreme Bash) parts are installed for unbridled driving. The extra powerful brushless motor allows the model to reach speeds of up to 104 km/h. Complete electronics with the new Spektrum Firma V2 controller, metal-geared servo and receiver are installed. Excellent driving characteristics on asphalt and off-road are guaranteed by independent suspension with wide track and tuned 4x4 drive with differentials. The body is clipless for quick and easy assembly and disassembly and for a clean look without clips.
The chassis, differentials, front bumper, undercarriage skid plates and even the wing mounts have all been improved and reinforced for greater strength. New side guards prevent dirt from entering, a two-piece strut between the towers adds rigidity to the chassis and simplifies maintenance. The electronics used are waterproof* and you don't have to worry about driving in wet conditions. The V2 controller has modified firmware for even higher performance and faster response. A digital servo with metal gears ensures precise and confident control.

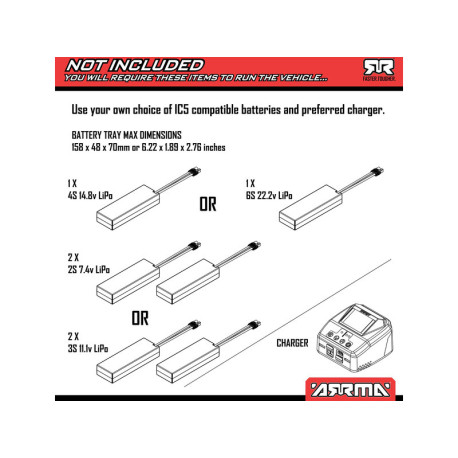

Thanks to the fact that the brushless drive is designed for 4-6S LiPo, you can initially drive with a 4S LiPo battery (sold separately) and once your driving skills improve, you can connect a 6S LiPo battery (sold separately) to the model and increase power and speed up to an extreme 104 km/h. Another feature is the ability to limit the throttle on the transmitter to 75% or 50%, making the model suitable even for less experienced drivers.
EXB (Extreme Bash) Parts
The new version of the high-performance model brings even greater durability. The chassis, skid plates, differentials and wing mounts are other EXB strength parts that add to the model's toughness.

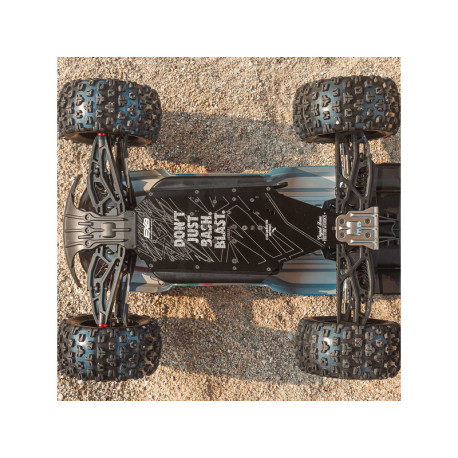

EXB chassis

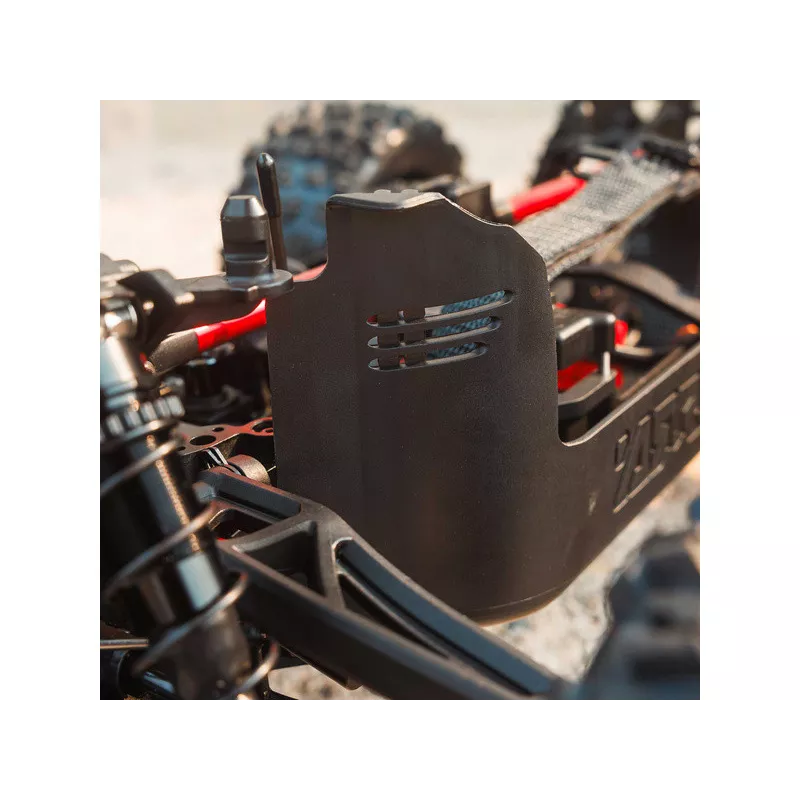

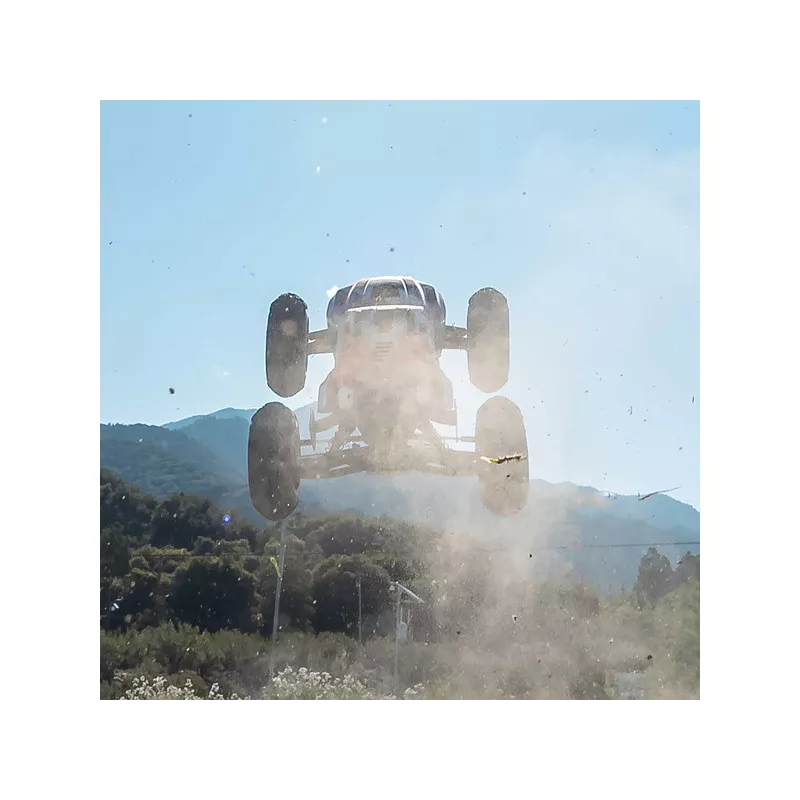

The Kraton is the perfect model for amazing jumps. With a chassis plate made of high-strength 7075 T6 aluminum and raised sidewalls installed to prevent dirt from entering, the model can handle all obstacles, whether in the skatepark or on the race track.
Stapleless bodywork

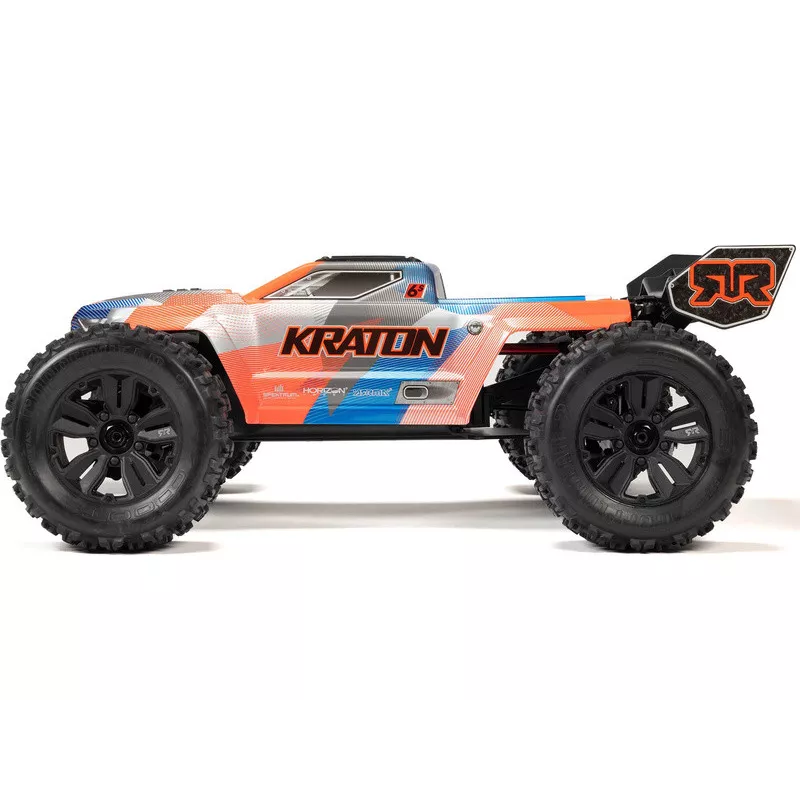

The iconic Kraton body is now equipped with a clip-free mounting system for easy assembly and disassembly. The clean lines are also guaranteed by clips. The wing holder, which is the most exposed part, has also been innovated.
Improved differentials
A 29mm EXB limited-slip center differential improves control on slippery surfaces. Durable steel driveshafts are reliable even in rough use.

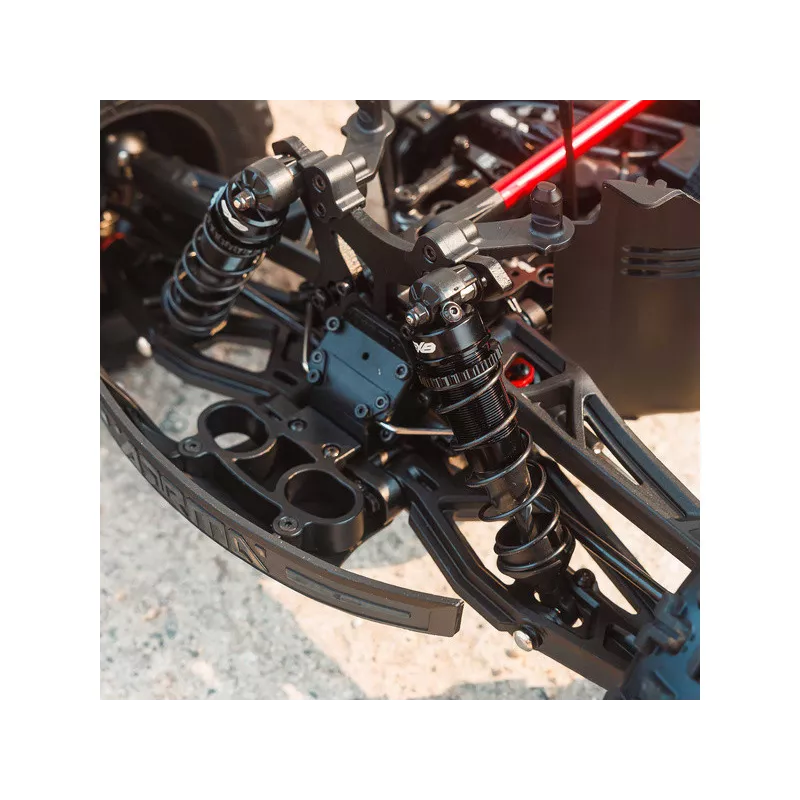

Oil shock absorbers

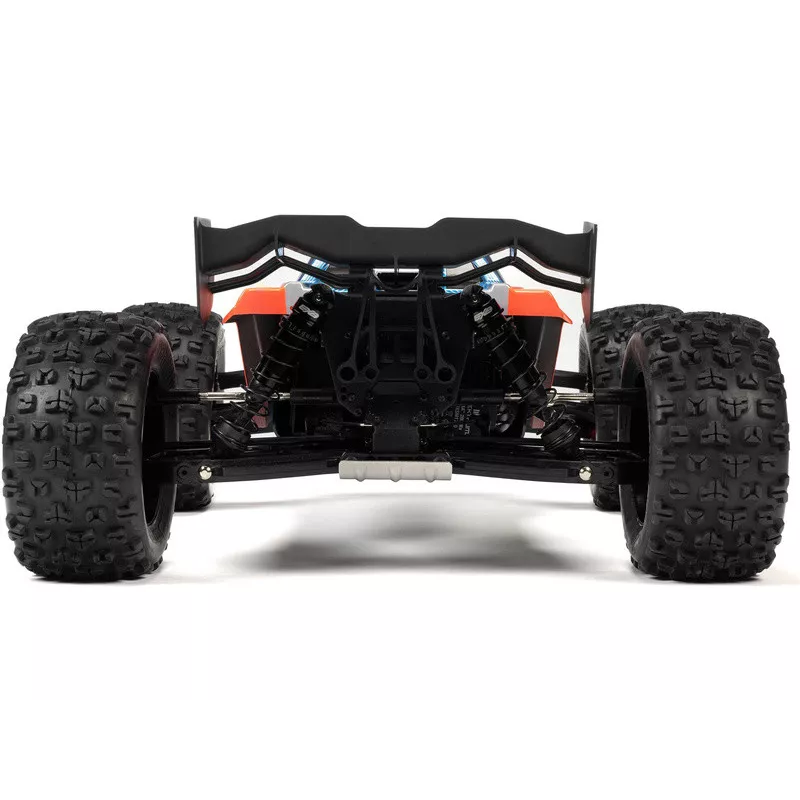

The RC model features 16mm oil-filled aluminum shocks that absorb even hard impacts while maintaining maximum contact with the surface during driving for maximum control. The ride height, or spring preload, can be easily adjusted using a nut.
Tires
Massive super-aggressive dBoots Copperhead tires mounted on designer multi-spoke wheels provide high grip whether off-road or on a hard surface.
Digital servo SPEKTRUM® S665
- Servo SPEKTRUM® S665 with metal gears, 25T milled shaft
- Waterproof*
- Torque 20 kg.cm at 7.4 V, speed 0.12s / 60°
- 11% more torque
SPEKTRUM™ FIRMA™ 150A V2 SMART 3S-6S AC Controller
The model is controlled by a modern SPEKTRUM™ FIRMA™ 150A V2 SMART controller with a 32-bit ARM Cortex M4 microcontroller, which is able to capture complete telemetry and transmit it to the receiver using an integrated wire in the new IC5 connector. Data is transmitted via the SRXL2 protocol. The controller reads information about the type, temperature and voltage of the battery cells directly from the Smart battery. In real time, current, temperature, total battery voltage, voltage of individual battery cells, battery temperature, remaining capacity and engine speed are available.
The electronics are completely encapsulated in a special potting compound that prevents moisture* or dirt from entering the electronics. The controller is switched on and adjusted using the buttons under the rubber cover.
The upgraded V2 firmware ensures more powerful performance and a confident driving feel.
- The controller contains a fast and powerful 32-bit ARM M4 processor
- The controller is waterproof*
- Overcurrent protection, thermal protection, failsafe
- Automatic LiPol disconnection at low voltage
- Robust plastic housing, aluminum heat sink with fan for high efficiency
- Adjustable high-performance BEC
- High-durability IC5™ connectors, compatible with EC5™ connectors
Powerful engine
- Motor Spektrum Firma 2050Kv 4074
- Power up to 6 LiPo cells
- Aluminum casing with black anodizing and engraved Spektrum logo
- Four-pole design for smooth operation and high torque
- The 5 mm diameter shaft is mounted in ball bearings
- The motor is factory-fitted with 4 mm gold-plated connectors for reliable connection
- The groove at the end of the motor shaft allows for secure mounting of the pinion
Spektrum SR315 DSMR Sport
The SR315 DSMR Sport receiver is a new generation micro receiver weighing just 6g. It features SmartSafe™ or "Gas" Failsafe, and is paired with a push of a button. DSMR technology ensures full range and fast receiver response.
- Box design with rounded corners and light weight
- Thanks to the pairing button, you don't need a pairing connector
- SmartSafe™ Failsafe and "Gas Mode" available when paired
- Secure DSMR modulation protocol and high frame rate of 5.5ms
- Compatible with SMART telemetry, (compatible DMSR transmitter with SPEKTRUM dashboard application)

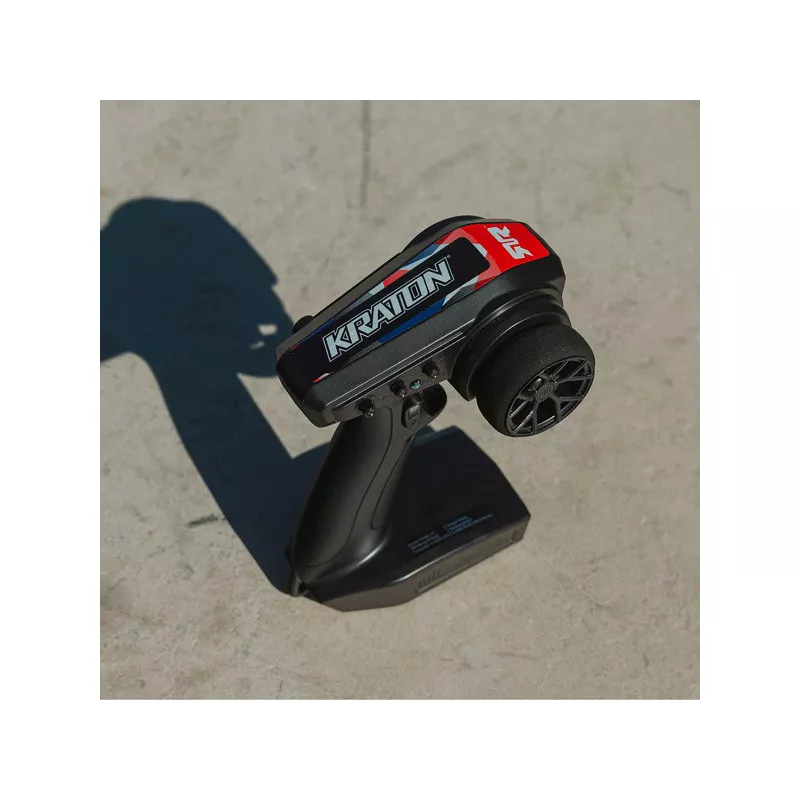

Spektrum SLT3 transmitter
The Spektrum SLT3 3-channel steering wheel transmitter operates in the 2.4 GHz band and is compatible with the SLT protocol. The Spektrum SLT3 transmitter is lightweight and easy to hold. The steering wheel is covered with a foam rim for a firm grip. The control layout is practical and intuitive - all controls are located so that they are quickly accessible when needed. A secure strap is provided for attachment to a strap.
- Spektrum SLT 3-channel steering wheel RC kit for reliable control
- Proven design for a comfortable, fatigue-free grip
- Options for limiting the maximum control channel deviations
- Throttle and steering trim, throttle and steering reverse
- Engine power limiter 50%, 75% and 100%
- You can use the third channel for additional devices, such as sound modules.
Spectrum SMART technology
Spektrum Smart technology offers more model information, telemetry transmission, easier operation and battery care. All SMART components, including batteries, are able to communicate with each other and transmit telemetry. To view complete telemetry, you must have a compatible Spektrum transmitter with a display. Telemetry display depends on the type of transmitter for a particular model.
More information about Smart technology can be found in our blog . An overview of compatible transmitters can be found here.
*Please refer to the user manual for water resistance specifications. For tips and tricks on wet operation, please visit the blog.
