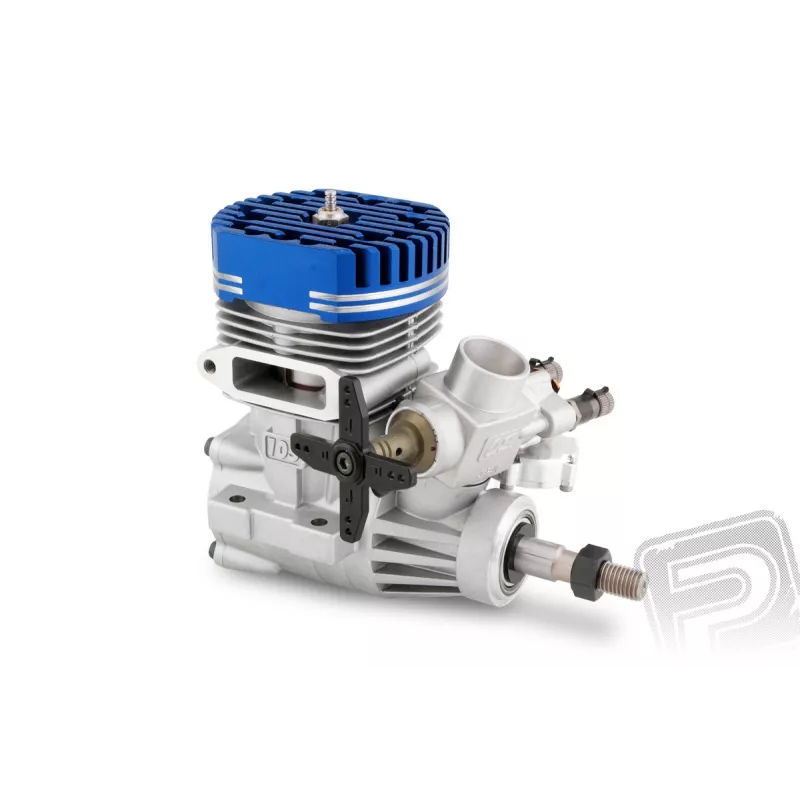

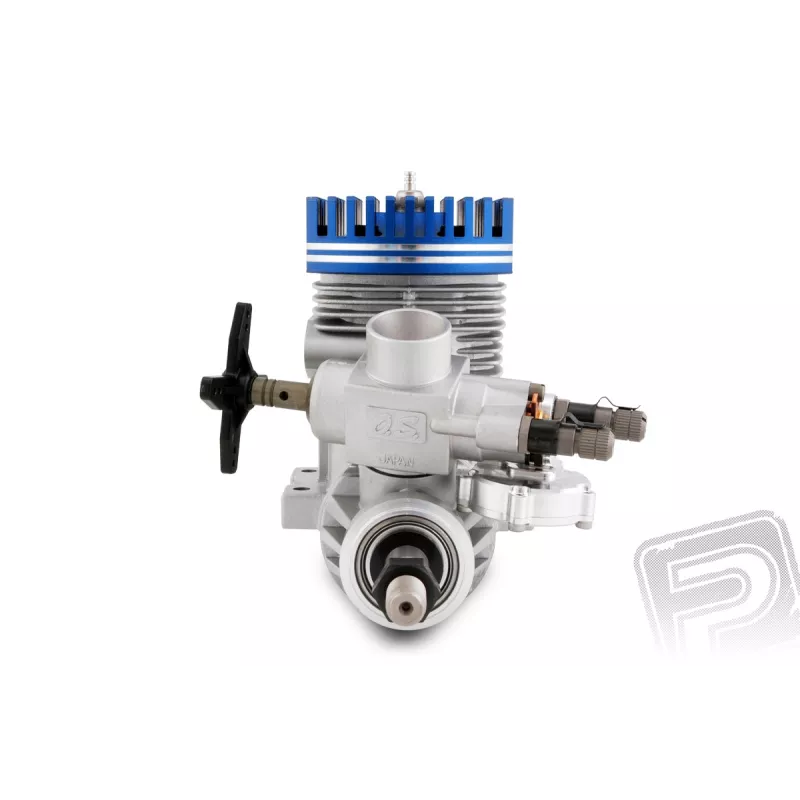

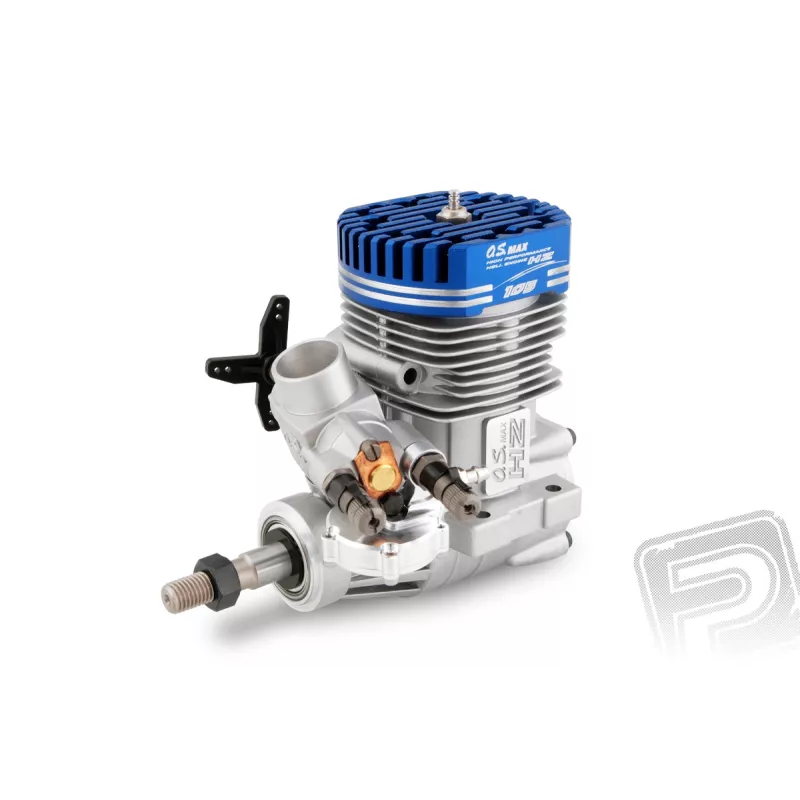

OS MAX - 105 HZ-R including POWERBOOST 105 exhaust

Two-stroke engines OS MAX is the peak of the power units for helicopters. Traditionally, sophisticated design using premium materials ensures high performance and long life. For a perfectly reliable supply of fuel in all flight regimes and altitudes and extreme 3D maneuvers, the fuel system of DRS (Demand Regulator System) with a pressure regulator.

• Fuel system of DRS (Demand Regulator System) with a pressurizing reservoir pressure of abstraction from the engine crankcase to ensure a reliable supply of fuel.
• Tříjehlový carburetor for optimum fuel mixture in the whole speed range with an integrated pressure regulator and the suction sleeve shaped as a venturi to increase the efficiency of suction.
• Armed lever carburetor to control double ran without dead movement and clearance.
• Blue anodized cylinder head with intricately shaped fins for superior cooling.
• A balanced crankshaft mounted on precision ball bearings to minimize vibration and maximize performance.
• Combo engine with tuned muffler PowerBoost 105th
• The rear cover is prepared for mounting the sensor for governor Futaba GY-701.

MAX 105HZ-R is a high performance two-stroke engine with glow plug with a classic design with a piston with a piston ring for top F3C and 3D aerobatic helicopters Class 90. It is equipped with a carburetor type tříjehlovým 61G with integral pressure regulator; fuel system uses the DRS system pressurization tank through a one-way valve pressure of abstraction from the engine crankcase through the throat to the rear lid. Ideal complement to the engine is tuned silencer PowerBoost 105th

• Same dimensions for a class motors .90, 15% higher performance.
• The crankshaft has a thread for propeller nut UNF 5/16 to 24 < / Li>
• Recommended fuel: at least 18% castor or synthetic oil (or. A mixture of synthetic and castor oil), 10-30% nitromethane.
• Recommended Plug: OS MAX No.8, No. 7, when using fuel with a higher content of nitromethane OS MAX No. 10 (formerly A5).

Set engine includes: motor MAX 105HZ-R RC 61G carburetor, glow plug No. 8-way valve, tuned muffler 105 PowerBoost, instruction manual.
