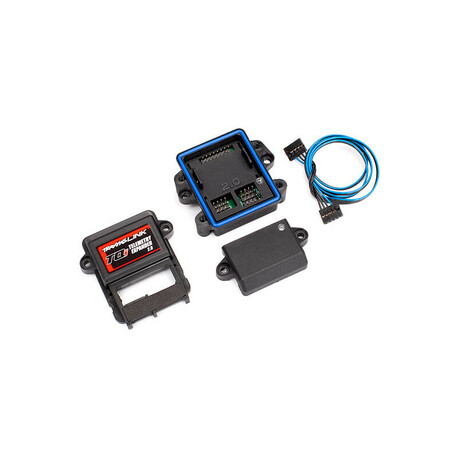

Traxxas Telemetry - Expansion Module 2.0

Monitor the exact model speed, component temperature, battery voltage and more with the new telemetry expansion module, which can accommodate up to 6 sensors.

Expansion module, used as an interface to connect telemetric sensors, connects to the 4-pin connector on the 6518 and 6533. With the new GPS sensor (sold separately) with GPS and GLONASS satellites, you can monitor the most accurate speed measured against country and geographical location. In addition, you can connect up to six additional telemetric temperature / voltage sensors. To monitor real-time telemetry on your phone, you need a Bluetooth module in the TRA6511 radio.

The new Telemetry 2.0 expansion module with GPS sensor 2.0 support replaces the original TRA6550 and TRA6551. Neither the new 2.0 expansion module nor the GPS 2.0 sensor are backward compatible with these original items.

The connecting cable included in the package (ie the cable between the receiver and the telemetry extension module) has the TRA6525 part number.

Compatible telemetry sensors

• GPS sensor (order no. TRA6551X)
• Temperature sensor (part no. TRA6526)
• Voltage sensor (order no. TRA6527)

Telemetry wiring diagram

Easy to connect

Traxxas models with TQi transmitter

• Simply plug the telemetry extension module into the telemetry port on the receiver using the included TRA6525 cable.

Models with VXL-8s or VXL-6s (X-Maxx, E-Revo, and Unlimited Desert Racer)

• Expansion module can also be connected to the controller via TRA6566 cable (sold separately) in addition to the receiver connection.

Models with TRA6590 LED Lighting Controller

• The lighting control unit can be connected to the expansion module using the TRA6565 cable (sold separately). < / li>
