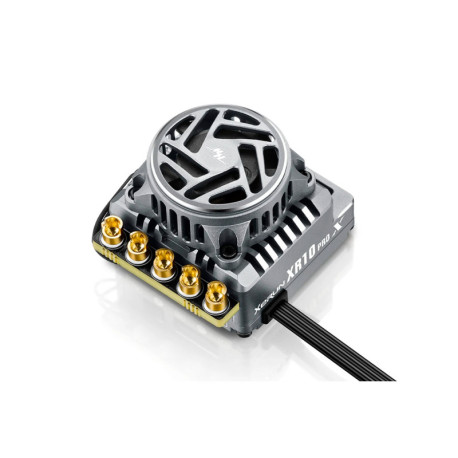

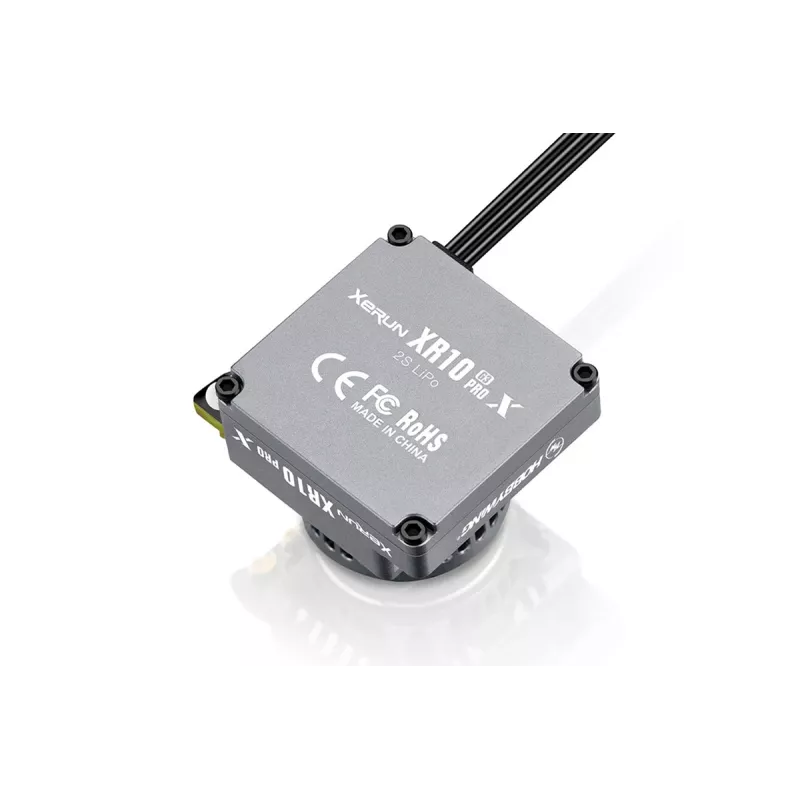

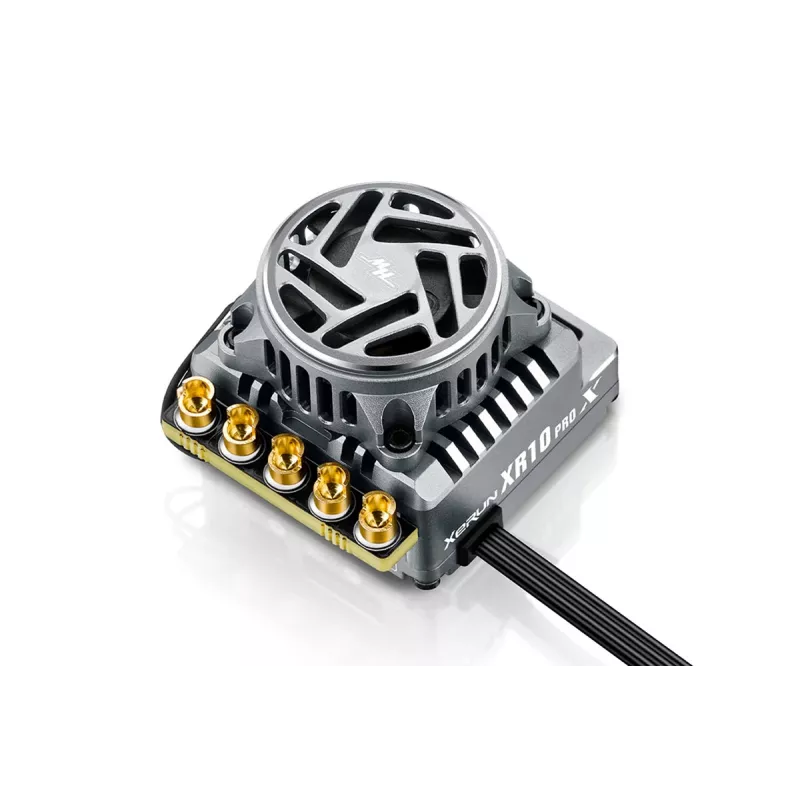

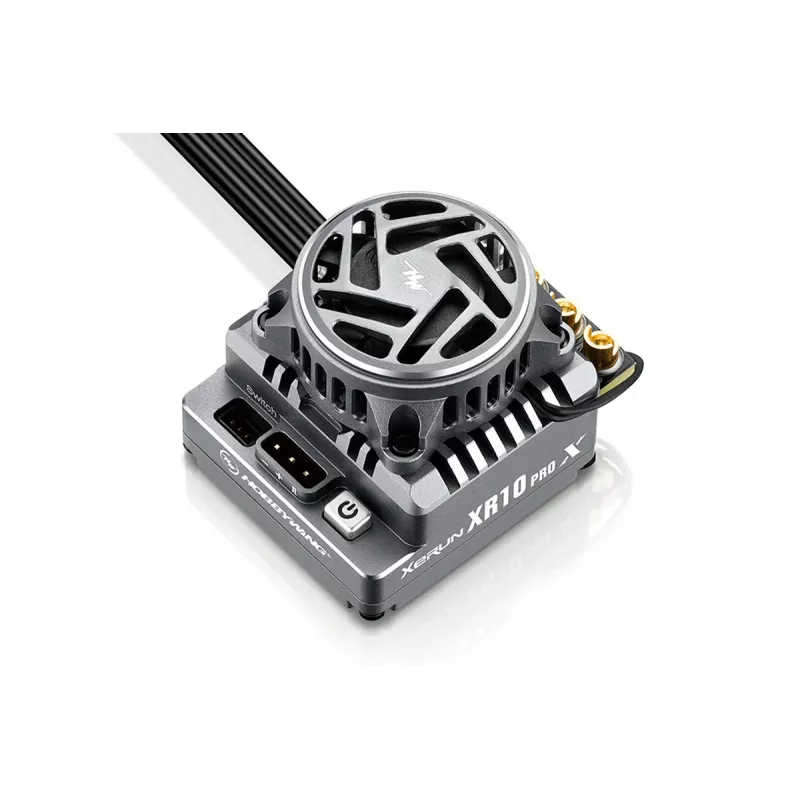

XERUN XR10 Pro G3X - Grey

The XERUN XR10 Pro G3-X 160A controller offers everything you need to realize the full potential of your top racing, drifting, rally or F1 1:10 RC car or 1:10 AC off-road buggy. It allows the use of an AC motor with sensors (sensored) and without sensors ("sensorless") and offers 3 selectable program profiles - each with a wide range of programmable parameters for the perfect adaptation of the engine, chassis and track. It is suitable for races with zero timing (boost) as well as for competitions in which it is allowed to change the timing while driving. So, if you're serious about riding your bloated "tenth" with an AC motor, the XERUN XR10 Pro G3-X controller from Hobbywing is for you!

Function

• Specially developed for RC cars: 1:10 road (including drift, rally and Formula 1) and off-road buggies, optimized for zero-timing stock car racing
• For 3650/540 size AC motors with and without sensors with 2S LiPo power supply: 4.5 thread and above motors for touring cars, 5.5 thread and above for buggies
• Compact dimensions, light weight, intelligent fan
• Power and motor cables with increased cross-section compared to XERUN XR10 Pro G3 (3.3 mm2 vs. 2.6 mm2)
• Preset firmware (can be changed at will) for zero and variable timing races with 3 profiles (1/10 stock with zero timing, 1/10 On-Road, 1/10 Off-road) with 44 programmable functions including Boost and Turbo timing ( up to 64°) brutally increasing performance
• Powerful switched BEC stabilizer up to 6 A with adjustable voltage 5.0-7.4 V
• Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
• Possibility of programming with the help of the multifunctional LCD programming box PRO (separately, with PC program or mobile application) or OTA Bluetooth module (with mobile application)
• Firmware updatable with multifunction LCD programming box PRO or OTA Bluetooth (sold separately)
• Ability to monitor operating data with the help of a multi-function LCD programming box PRO or OTA Bluetooth module and mobile application, built-in memory module for data recording (up to 19 sets of records after 20 minutes) allowing viewing of recorded values after driving in the mobile application with the help of OTA Bluetooth module

• General: Setting mode (offers a full menu with all 44 functions or a reduced basic menu with the 24 most necessary functions), Driving mode, Max. Reverse Power, Voltage Protection, Controller Thermal Protection, Engine Thermal Protection, BEC Voltage, Smart Fan, Auto Shutdown (including controller shutdown option by transmitter), Sensor Mode, Motor Rotation Sense, A/C Phase Swap
• Throttle control: Throttle response control, Throttle curve, Neutral range, Throttle start value, Range, Drive switching frequency, Softening value, Softening range, Idle, RPM drop rate
• Brake control: Intensity of the resistance brake, Aggressiveness of the resistance brake, Switching frequency of the resistance brake, Max. braking effect, Brake control rate, Brake control mode (Linear/Traditional/Disc), ABS intensity, Brake curve, Brake switching frequency
• Timing: Boost Timing, Boost Timing Activation, Boost Initial RPM, Boost Final RPM, Boost Initial Throttle, Boost Final Throttle, Turbo Timing, Turbo Delay, Turbo Add Rate, Turbo Remove Rate
• Configuration: Number of motor poles, Gear ratio, Wheel diameter

The regulator kit includes: controller XERUN XR10 Pro G3-X with cables, instruction manual.
