Traxxas Slash Mudboss 1:10 BL-2s RTR Red

AC drive BL-2S

The BL-2s AC drive with a 3300rpm/V motor increases speed and acceleration by up to 60% compared to other DC motor drives. Improved efficiency, high-speed ball bearings and an internal cooling fan give the motor long life with minimal maintenance.

Extreme Heavy Duty kit installed

The factory-installed Extreme Heavy Duty kit on the Slash Mudboss model replaces key drivetrain and suspension components with upgraded parts built for maximum strength and durability.

Magnum 272R gearbox

The Magnum 272R transmission maximizes racing performance and durability. It is equipped with an aluminum engine plate, all-metal gears and a sealed differential. The low center of gravity design concentrates the weight as low as possible on the rear axle for better traction and handling.

Clipless bodywork

The model is equipped with a clipless system that holds the body firmly in place, but you can quickly and easily remove it at the same time when changing the battery. The heavily reinforced inner body cage uses robust top and side bracing to ward off crash damage and protect the rear tires.

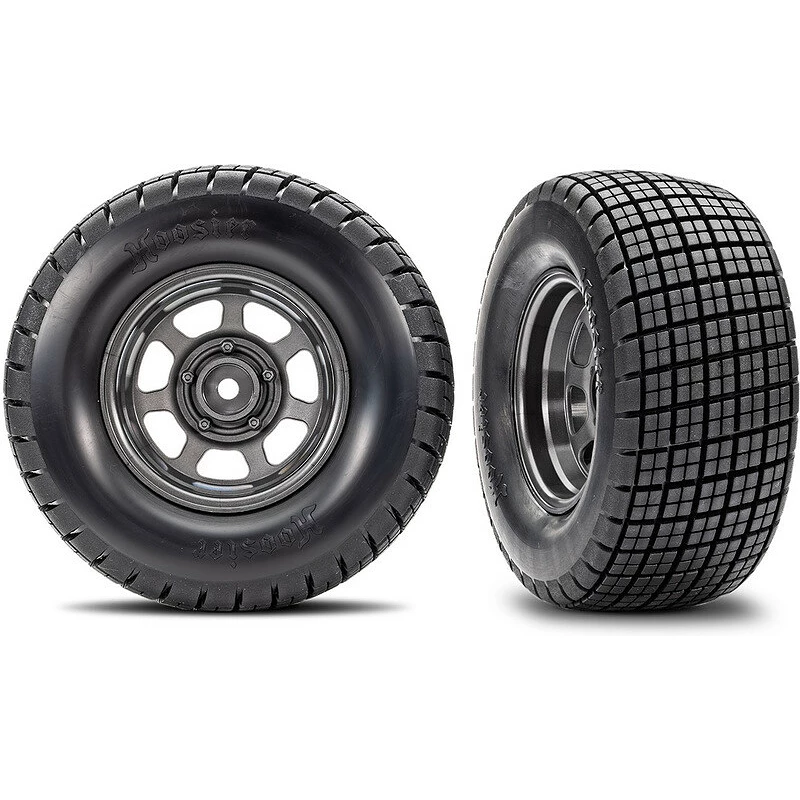

Replica Hoosier tires

Hoosier Angle Block replica tires come on graphite gray rims for an authentic look. The tires are made from a special rubber compound that combines durability and traction for consistent performance wheel after wheel.

GTR aluminum shock absorbers

GTR shock absorbers represent the pinnacle of racing technology. Color-matched Teflon (PTFE) coated aluminum body holds over 70% more oil than Ultra Shocks™ shocks. Smooth titanium nitride coated shafts resist wear and increase durability. The preload of the springs is conveniently adjusted with a nut.

Chassis

The rigidity of the chassis is ensured by the proven construction of fiber-filled nylon. Thanks to this, the model is light, excellently manoeuvrable and at the same time resistant to impact. The design of the model with a wide gauge and a long wheelbase is dimensioned in such a way that the center of gravity is reduced as much as possible and thus achieves perfect handling.

Side braces

The integrated Nerf side braces provide strong lateral support and protection, especially important when riding on an oval in constant sideslip.

Adjustable connectors

Durable steel couplers allow wheel camber and toe to be adjusted for specific track conditions. End caps with ball studs are made of high-strength material to prevent loosening in the thread.

Precise steering

The mechanics of turning the front wheels is realized by means of the Dual-Bell-Crank system, which ensures precise movement of the rods to the wheels. The steering has an integrated cam servo-saver that absorbs shocks and protects the servo against overload.

Magnum 272R gearbox

The 2WD drive is implemented through the new Magnum 272R gearbox modified for high performance. The transmission includes aluminum beds with a tightly defined gap between the teeth, metal gears and a differential for distributing power to the rear wheels. All gearbox shafts are housed in quality encapsulated bearings. An integrated, adjustable friction clutch will allow minor slippage during acceleration, absorbing the initial shock of the engine and thereby protecting other components.

Servo steering

Digital Traxxas servo 2075 high-torque waterproof with DC motor and nylon gears has a torque of 9.0 kg.cm and a speed of 0.17 s/60°@ 6.0 V. For water resistance*, the servo box and the output 1000 edges are fitted with seals. Two ball bearings provide very smooth operation.

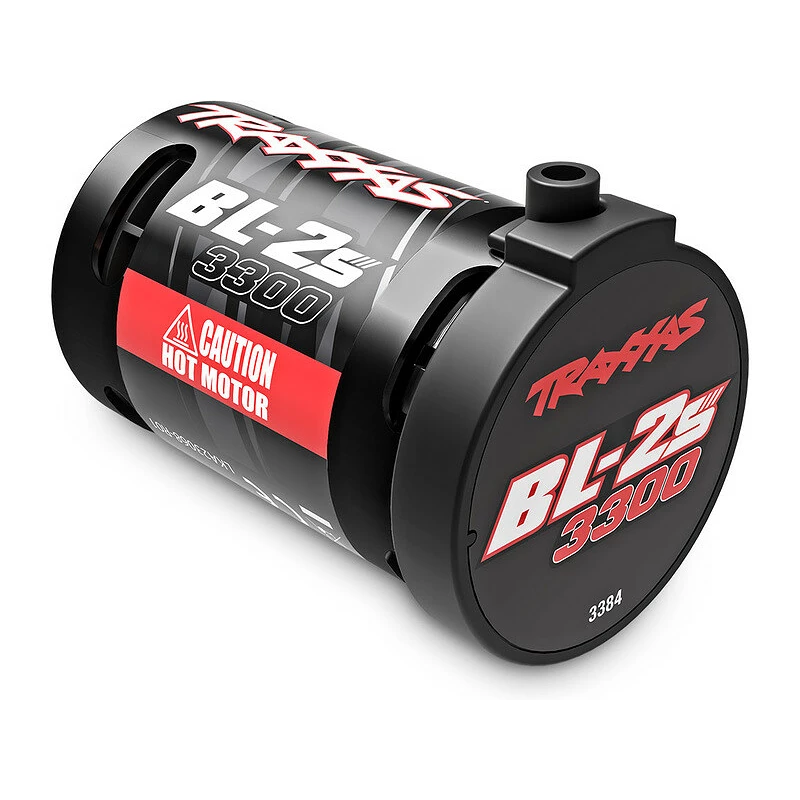

AC motor 3300kv

The Traxxas 3300kv AC motor provides the ideal affordable drive for 1:10 models with all the benefits of high performance, long life and minimal maintenance. The motor is equipped with a Quick Connect connector for easy connection. Other features include:

•

• Integrated cooling fan

• High speed ball bearings

• High acceleration

• Efficient operation for longer driving time


Electronic controller BL-2S

Waterproof* BL-2S electronic AC controller with three driving modes, 2S LiPo battery support and easy EZ-Set™ button control. The regulator is equipped with a training mode that limits full throttle to 50%. Thanks to this, novice drivers or children can gradually familiarize themselves with the features of the model and prepare for the full power of the car. Thermal protection, protection against underdischarge of LiPo batteries, gold-plated connectors, simple operation, intuitive signaling with a two-color LED diode and a powerful cooler that can be supplemented with an optional fan (not included in the package).

BL-2S controller modes

•

• Sport : Default mode, forward, braking and reverse are possible.

• Race : Mode suitable for racing. Forward and brake is possible; reverse is not available.

• Training : Mode suitable for children or novice riders. It is possible to drive forward with a power limitation of 50%, brake and drive backwards again with a power limitation of 50%.


Traxxas TQ RC Kit

The model is controlled by a two-channel proportional steering wheel RC radio Traxxas TQ, working in the 2.4 GHz band - operation without interference. The transmitter is powered by only 4 AA cells.

There is a rotary knob on the transmitter that trims the steering (so that the model goes straight if the steering wheel is in the center position). The status of the batteries in the transmitter is indicated by an LED. Reverse can be set on the transmitter on the throttle and steering channels.

TQ receiver

The Traxxas TQ 2.4 GHz three-channel receiver ensures safe driving without interruptions. Easy pairing with one button. Status indication by means of an LED diode.

Recommended LiPo batteries:

With modern LiPo batteries, the RC model will have high performance and run for the maximum possible time. The model can be operated on a 2-cell (7.4 V) LiPo battery.

•

• For higher performance Traxxas LiPo battery 7.4 V 5000 mAh

• For higher performance and long driving time Traxxas LiPo battery 7.4 V 5800 mAh

• For higher performance and extra long driving time Traxxas LiPo battery 7.4 V 7600 mAh


Recommended NiMH batteries:

NiMH batteries do not require precise handling and are therefore suitable if the RC model car is operated by children (NiMH batteries are not destroyed by complete discharge). However, NiMH batteries do not provide such performance.

•

• Traxxas NiMH battery 8.4 V 3000 mAh (high)

• For longer driving time Traxxas NiMH battery 8.4 V 5000 mAh (high)

• NiMH battery Traxxas 8.4 V 3000 mAh (flat)

• For longer driving time Traxxas NiMH battery 8.4 V 5000 mAh (flat)


Recommended Traxxas Chargers

Traxxas universal chargers can charge Traxxas LiPo and NiMH batteries. (The charger included in the package is intended only for the NiMH type battery that is included in the package.) Traxxas chargers are a simple and safe way to charge batteries. Traxxas uses the unique iD system , so you're always sure to connect everything easily and safely. There is an integrated chip in the battery connector, which the Traxxas charger automatically recognizes and sets all battery charging parameters for you. More information here.

Universal chargers for batteries up to 3S LiPo and NiMH

•

• Traxxas EZ-Peak 50W Single Output Mains Charger

• Traxxas EZ-Peak 2x50W mains charger with 2 outputs


Servo TRA2270

For maximum durability and performance in extreme driving, you can install the TRA2270 high torque metal gear tuning servo.

Stand

The aluminum swivel stand will be the perfect addition to your service table or display shelf. The stand facilitates the maintenance of the model and at the same time prevents the deformation (stretching) of the tires during long-term standing.

Work mat

Work mat 91x51cm, for service of RC models and other modeling work. Prevents damage to the workbench, resistant to chemicals. Practical compartments for organizing parts and tools.

Accessories for normal operation

For normal operation of the Traxxas RC car, you need bolt glue, good quality tire glue, silicone shock oil and a set of screwdrivers. We recommend an affordable set of tools for cars from our range.

The thread or head of the screw is dripped with screw glue, which fixes it and the vibrations caused by driving prevent the screw joint from loosening. The screw adhesive has a special composition that allows the screw connection to be easily loosened with an adequate torque without damaging the screw head. Never use ordinary instant glue, it might be impossible to loosen a screw stuck like this!

Tire glue is used to glue the tires to the disc rim. It is always necessary that the tire is firmly stuck to the wheel rim all the way around! If the tire is not glued all the way around, it may tear. Tire glue has a special composition that is able to glue materials such as rubber or nylon, and at the same time, after hardening, the glue is flexible. Never use ordinary instant glue - it is not flexible after hardening and cracks would gradually form in the tire around the rims!

Sometimes it is necessary to add silicone oil to the dampers of the model. During normal operation, there are only slight leaks of silicone oil on the piston rods of the shock absorber. In the event that the surface of the damper pistons or the condition of the seals is in poor condition, the oil leakage may be large. So-called repair kits are supplied for these cases. In the range of tuning parts, piston rods with an extremely hard TiN (titanium nitride) coating are delivered to all shock absorbers. Piston rods with a TiN surface are easily recognized by their golden-green color.
