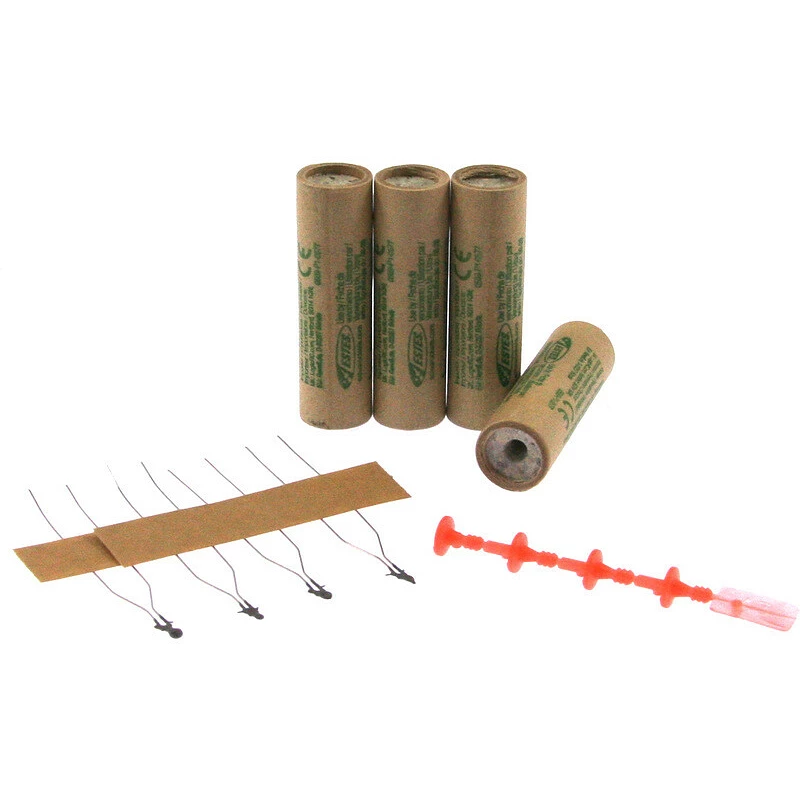

Estes rocket engine A10-3 (4pcs)

Engine ignition instructions

Insert the starter into the engine so that the ignition mixture on the igniter touches the inner wall of the fuel mixture. It is recommended to bend the igniter wires so that the ignition mixture on the igniter is springed to the inner wall of the propellant. Secure the igniter and the wires in the motor by sealing the motor.

Detailed overview of rocket engines including explanations can be found here.

Use high quality alkaline 9 volt batteries to power the starter. Conventional zinc chloride is not able to provide sufficient current to reliably ignite the igniter. To ignite the firing pin, a current of approx. 2 A is required!

Further information and marking

• CE mark 0589
• Rocket motor, including starters, designed to drive rocket models
• Engines must only be sold in the complete package indicated
• Age limit for the Czech Republic and Slovakia 18+
• Categories of pyrotechnics P1
• Instructions for use are included in the package
• The expiration date is indicated on the engines in month-year format. E.g. 08-28 indicates the expiration date 31. 8. 2028th Typical lifetime of rocket engines with proper storage is 20 years.
• The net weight of explosive substances is indicated on the packaging
• Observe national regulations and the enclosed instructions for use
• Use only outdoors. Safety distance: 5 m
• Ignition only with 6 to 12 V electric starter
• Starter electrical resistance including wires: 0.69?
• Maximum starter current without ignition: 500 mA, minimum starter current at full ignition: 2 A
• Warning: Risk of fire or explosion. Extinguish the fire by standard means from a reasonable distance.
