Climate rocket engine A6-4 B4-4 C6-7 (2 + 2 + 2)

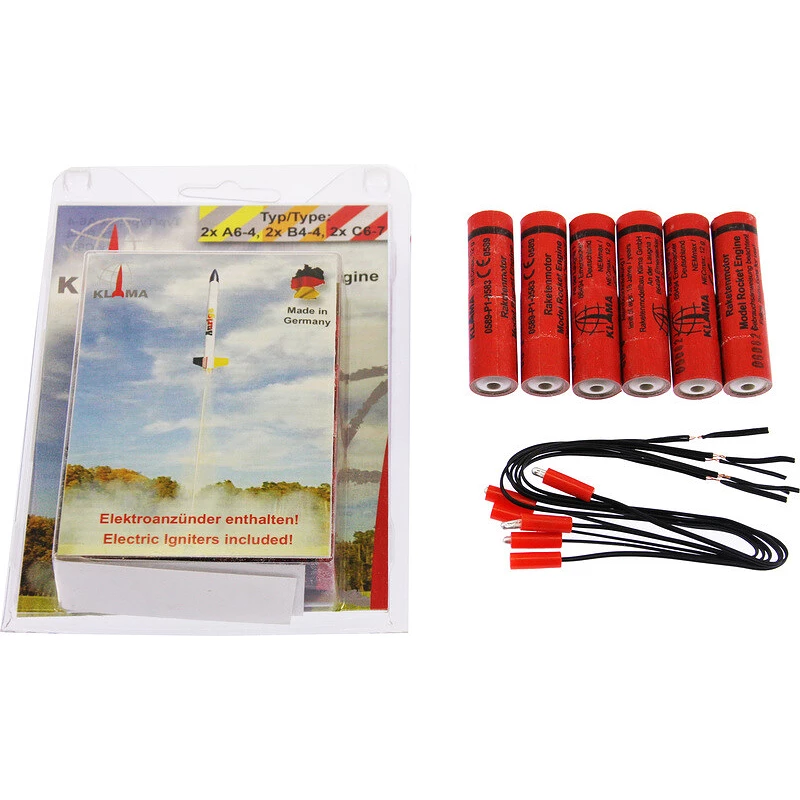

Package contents

The package contains rocket engines: 2x A6-4, 2x B4-4, 2x C6-7, including fuses, instructions for use.

Characteristics

Klima A6-4 B4-4 C6-7 rocket engine set for rocket models. Dimensions of rocket motors o18 x 70 mm, impulse 2.5 / 5/10 N · s, average thrust 6/4/6 N, burning time 0.6 / 1.2 / 1.6 s, ejection delay 4/4/7 s. Maximum recommended weight of the rocket model is 140 g.

Additional information and markings

• CE mark 0589
• Age limit for the Czech Republic and Slovakia 18+
• Pyrotechnic category P1
• It must be sold only in the said complete package
• The engines are supplied with fuses, which can be used to ignite the engine in the classic way (matches, lighter)
• Instructions for use are inside the package
• Optional electric torches can be purchased (order number KL-7001), so Klima rocket engines can also be ignited with electric current.
• Use only outdoors. Safety distance: 5 m
• The expiration date is indicated on the engines
• The net weight of explosives is stated on the packaging
• Warning: Risk of fire or explosion. Extinguish the fire by standard means from a reasonable distance.

Instructions for starting the engine with the optional electric torch

Insert the starter (torch) into the engine so that the flammable mixture on the torch touches the inner wall of the propellant mixture. We recommend bending the torch wires so that the flammable mixture on the torch is springed to the inner wall of the propellant mixture. Secure the torch and wires in the engine with an engine seal.

A detailed overview of rocket engines, including explanations, can be found here.

Use high-quality alkaline batteries to power the starter. Conventional zinc chlorides are not able to supply enough current for reliable ignition of the torch. A current of c is required to ignite the torch ca 2 A!
