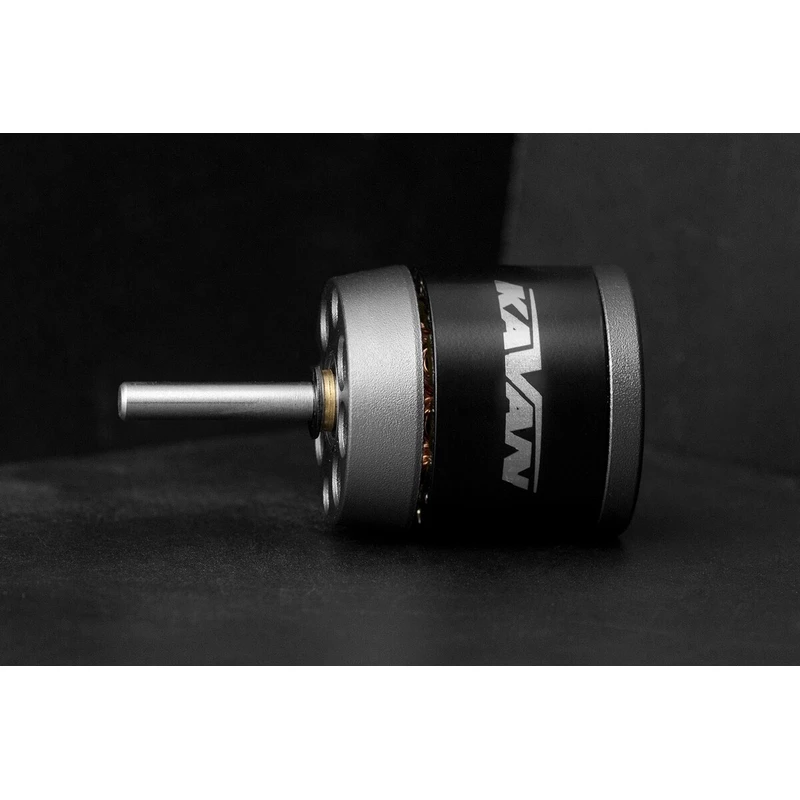

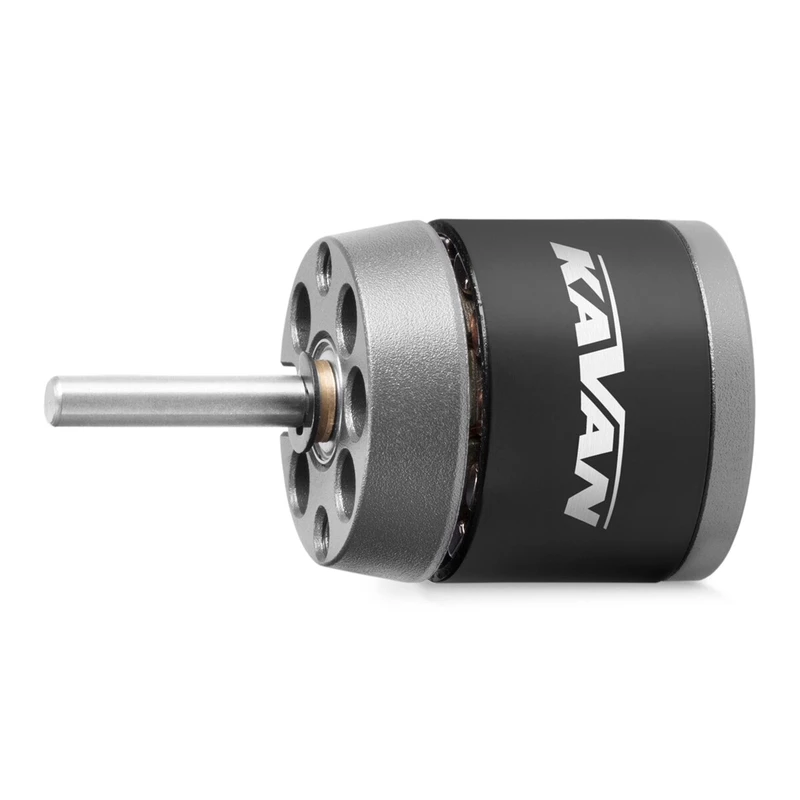

KAVAN Brushless Motor C2225-2000

KAV30.2500
Kavan
Reciprocating electric motor with rotating casing for aircraft models: glider 250g, trainer 250g, acro 200g, 3D 150g, KV2000 rpm on V, Lixx 2-3s power supply. Shaft 3.175mm.
More info
In stock - main warehouse: > 10 pcs
Recommended retail price
19.67 €
Your price with VAT
()
16.25 €
Price without VAT
16.25 €

  • Did you find a better price?
  • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee



    KAVAN motors are high-performance commutatorless ("brushless") fourteen-pole electric motors with a rotating casing ("outrunner") with excellent electrical properties, sophisticated construction and top-quality manufacturing. Shafts made of hardened steel and quality bearings ensure a long service life, quality materials used for the manufacture of the stator and the rotor also guarantee excellent performance parameters with high efficiency. They are low-speed, high-torque engines that handle large-diameter propellers and climbs without the need for a gearbox.

    Engine designation system: CxxYY/zzzz
    C - AC motor with a rotating casing ("outrunner", "circulator")
    xx - motor diameter in mm
    YY - motor length in mm
    zzzz - number of revolutions per volt (rpm/V), "KV"

    KAVAN C2225-2000 is a miniature AC motor designed to drive small models with a flight weight of up to 250 g with power from a two-cell or three-cell Li-poly battery. With its help, you can successfully "electrify" e.g. rubber bands from Guillow's or Dumas kits, it is also excellent for park-flyers, it is tailor-made for Kavan's CUMUL mini.

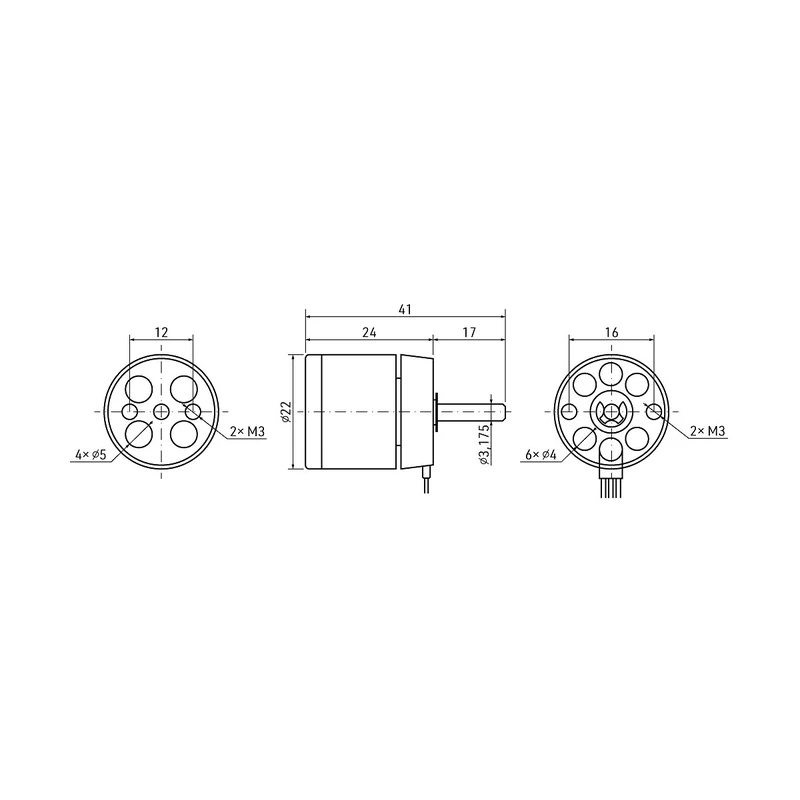

    Engine Mounting: The KAVAN C2225-2000 is designed for front mounting. Use two M3 screws that extend 3-4mm into the front of the motor. The holes for the fixing screws in the front of the motor are spaced 16 mm apart. The engine bulkhead should be 1.5-2mm aircraft grade plywood.

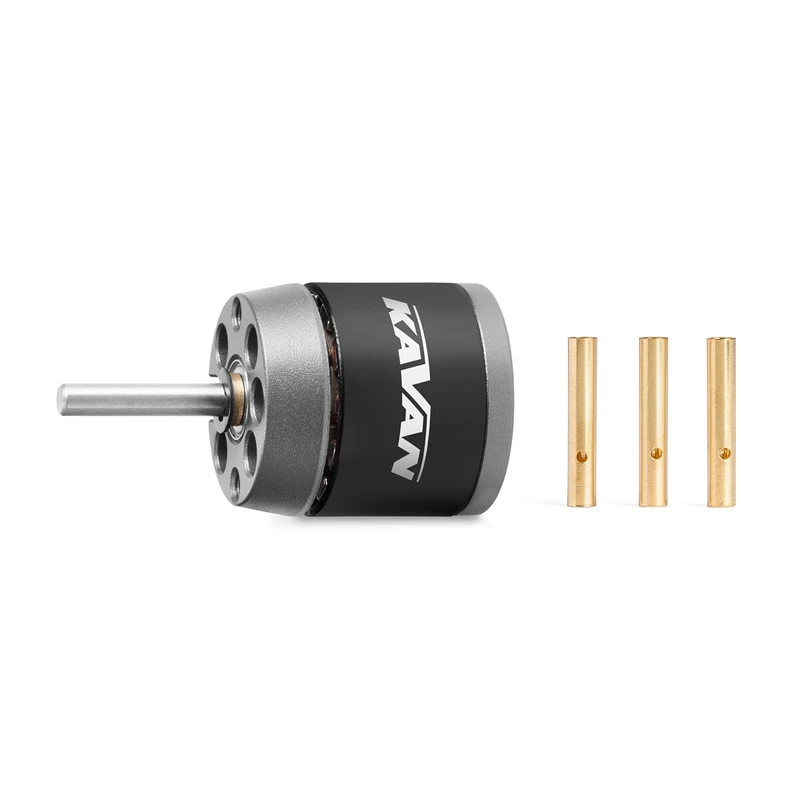

    The motor kit includes: KAVAN C2225-2000 motor with cables with soldered 2 mm gold-plated connectors, 3 pcs of gold-plated sockets 2 mm, instructions.

    LiXX cell power supply 2 - 3
    Revolutions per volt [rpm/V] 2000
    Max. power (30 s/3S LiPo) [W] 122
    Max. peak current (30 s) [A] 11
    Diameter [mm] 22
    Length [mm] 25
    Shaft diameter [mm] 3.175
    Weight [g] 32
    Number of poles 14
    Timing [°] 15 - 25
    Regulator [A] 12 - 15
    Glider up to weight [g] 250
    Weight trainer [g] 250
    Acrobat to weight [g] 200
    3D to weight [g] 150
