KAVAN C motors are powerful brushless fourteen-pole electric motors with a rotating casing ("outrunner") with excellent electrical properties, sophisticated construction and excellent production processing. They represent a very good choice for driving your recreational sports models with excellent performance parameters, good efficiency and a favorable price. They are low-speed, high-torque engines that can handle large-diameter propellers and climb without the need for a gearbox.
| Engine identification system: CxxYY-zzzz |
| C - AC motor with rotating casing ("outrunner", "orbit") |
| xx - motor diameter in mm |
| YY - motor length in mm |
| zzzz - number of revolutions per volt (rpm on V), "KV" |

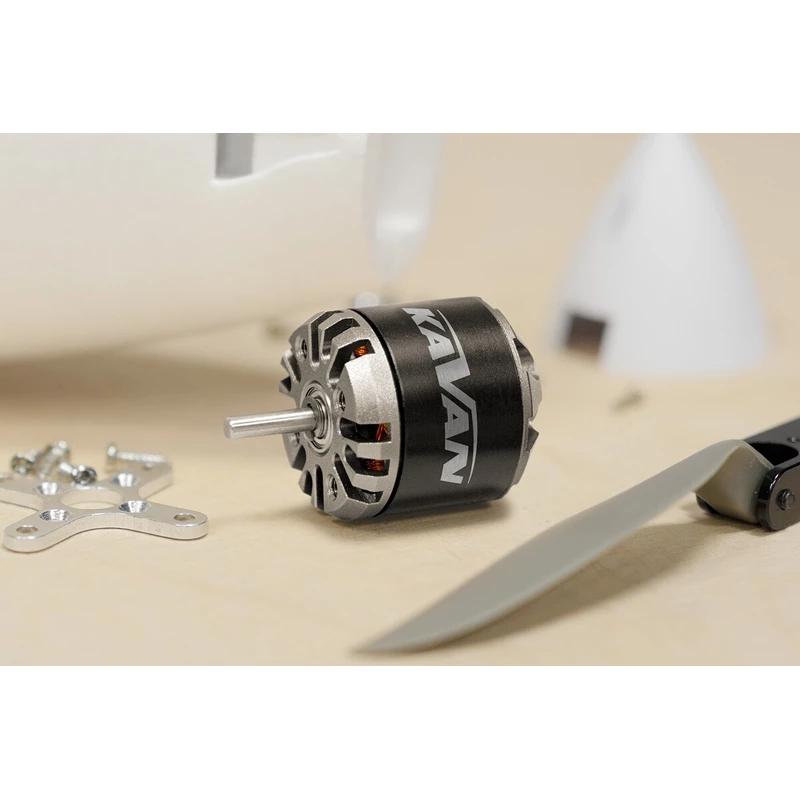

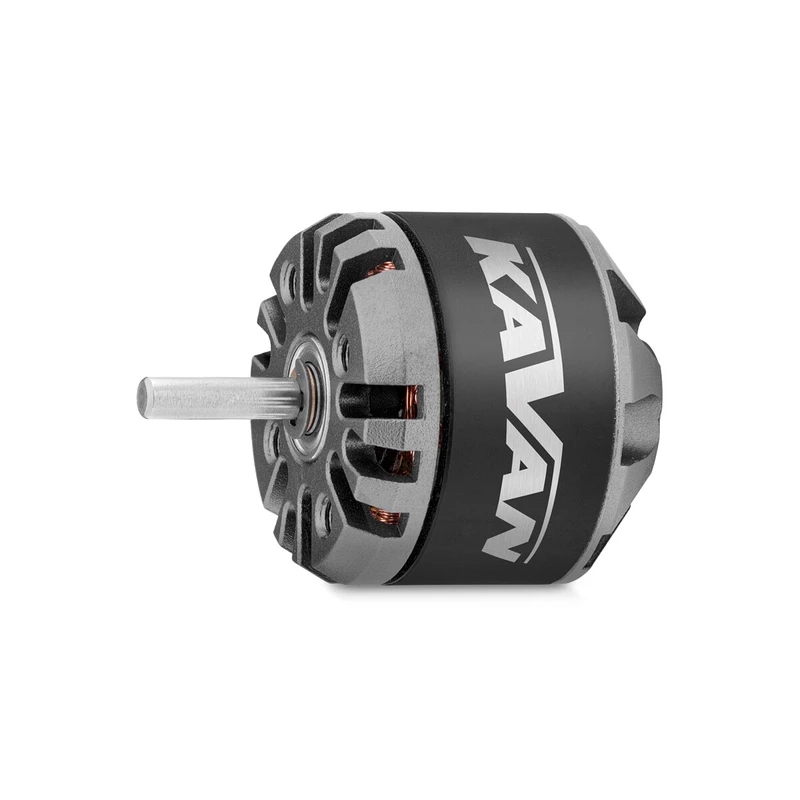

KAVAN C2826-1400 is a miniature AC motor designed to power small models with a flight weight of up to 350 g and powered by a two-cell or three-cell Li-poly battery. With its help you can successfully "electrify", for example, large rubber boots from Guillow's or Dumas kits with a range of about 800-1200 mm, it is also excellent for RC park-flyers Dumas.
Engine mounting: C2826-1400 is designed for front and rear mounting. For front mounting behind the front of the engine, use at least two (opposite) or four M3 bolts that extend into the front of the engine within 3 - 4 mm. The pairs of holes for the fastening screws at the front of the engine are regularly spaced 180 ° on circles with a diameter of 16 and 19 mm. The engine bulkhead should be made of 2 mm plywood. The rear mounting kit (mounting cross, propeller carrier for rear assembly) is supplied with the engine.

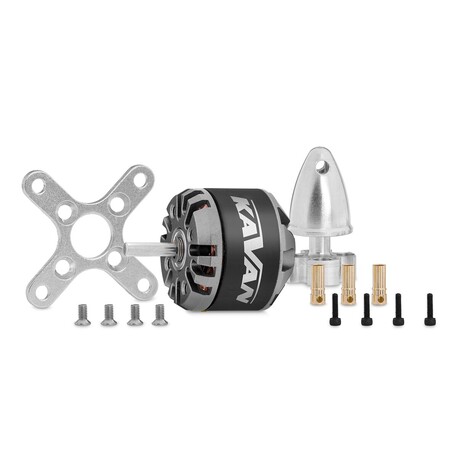

Motor set includes: motor C2826-1400 with cables with soldered 3.5 mm gold-plated connectors, set for rear mounting, instructions.
| Power supply for LiXX cells | 2 - 3 |
| Volt Speed [rpm/ min / V] | 1400 |
| Max. power (30 s / 3S LiPo) [W] | 120 |
| No-load current (2S) [mA] | 500 |
| Max. peak current (30 s) [A] | 14 |
| Diameter [mm] | 27.8 |
| Length [mm] | 27 |
| Shaft diameter [mm] | 3,175 th most common |
| Weight [g] | 50 |
| Number of poles | 14 |
| Timing [°] | 15 - 25 |
| Regulator [A] | 18 - 20 |
| Glider up to weight [g] | 450 |
| Trainer up to weight [g] | 450 |
| Acrobat up to weight [g] | 400 |
| 3D to weight [g] | 300 |
| Recommended propeller | 2S: 8x5-6 ” |
| 3S: 7x4-5 ” |
