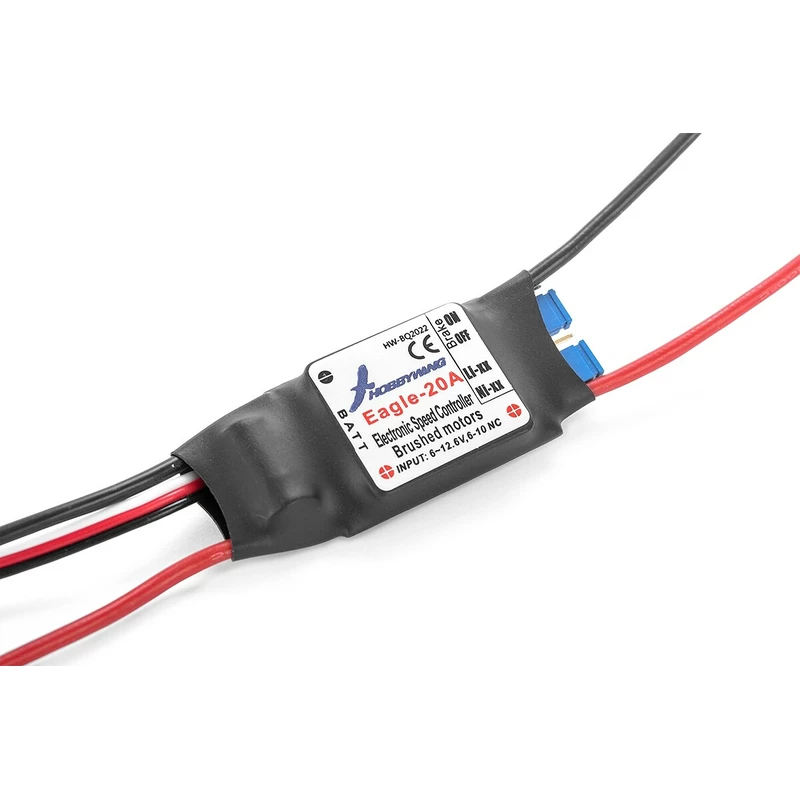

Eagle-20A DC regulator

Microprocessor controller for DC motors with excellent usability features while maintaining a very simple operation. Serves to control the speed of DC motors in recreational model aircraft or a helper application in the mock-ups of ships or ground vehicles when running on NiCd / NiMH and Li-poly / Li-ion. It is equipped with a linear BEC power stabilizer providing power the receiver and servos, battery. Type of propulsion battery is selected with a jumper, the same way on or off the propeller brake.

DESCRIPTION AND FUNCTION CONTROLLER

• Suitable for DC motor series 280, 300, 380, 400, 480 on battery power 2-3S LiPo / Li-ion or Article 4-10. NiCd / NiMH.
• For the supply of NiCd, NiMH, Li-poly, Li-ion
• Linear regulator BEC 5 V supply with a load capacity up to 1 A.
• Overload protection (when the temperature reaches 110 ° C controller performance is reduced).
• Protection for the low supply voltage (when the controller limits the output voltage drops below the propulsion battery of 3.0 V / cell. LiPo batteries).
• Automatic throttle control signal loss.
• Continuous linear control gas.
• Easy setup with jumpers.
• Acoustic signaling error conditions: abnormal supply voltage, signal loss of gas when the throttle is not switched off the motor in position.

ADJUSTABLE FEATURES

• Brake propeller (off - on).
• Optional battery (Li-poly or NiCd / NiMH).

PROTECTION FUNCTIONS REGULATOR

• Protection at start: If the engine will not start within 2 seconds after the throttle, the controller disconnects the engine.
• Thermal overload protection: If the controller temperature reaches 110 ° C, the regulator will limit the output power in order to reduce its temperature. < / Li>
• Protection control signal is lost: reducing the power controller when the signal is missing for 1 s; signal is missing for more than 2 seconds causes full disconnection of the motor.
