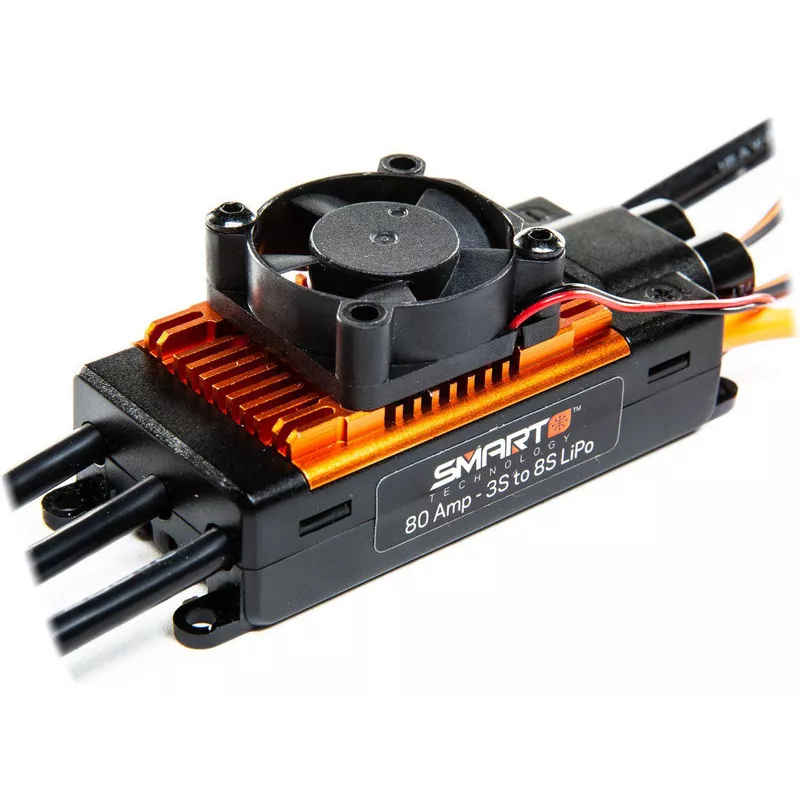

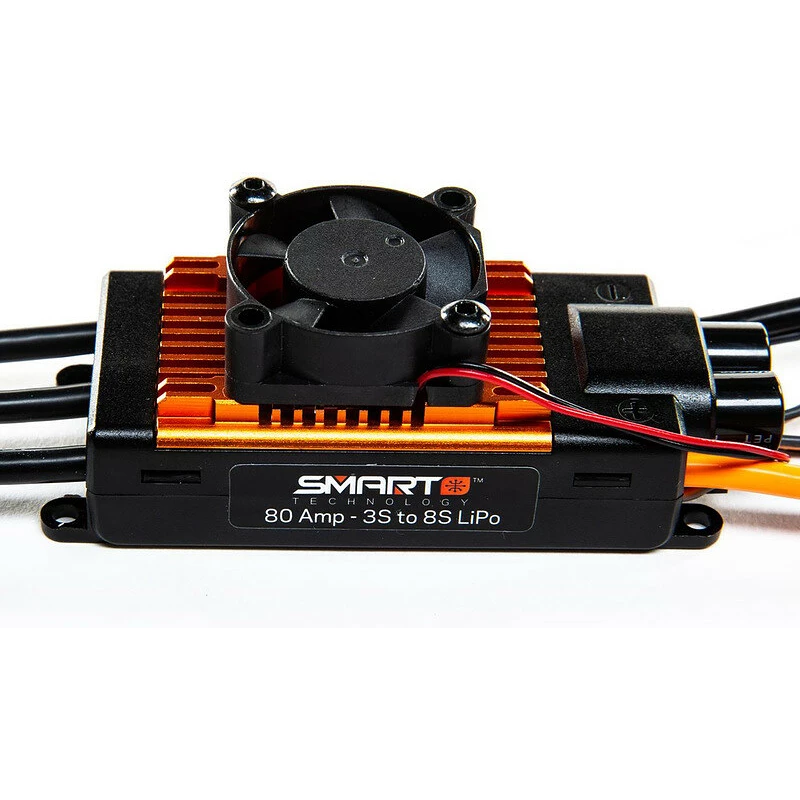

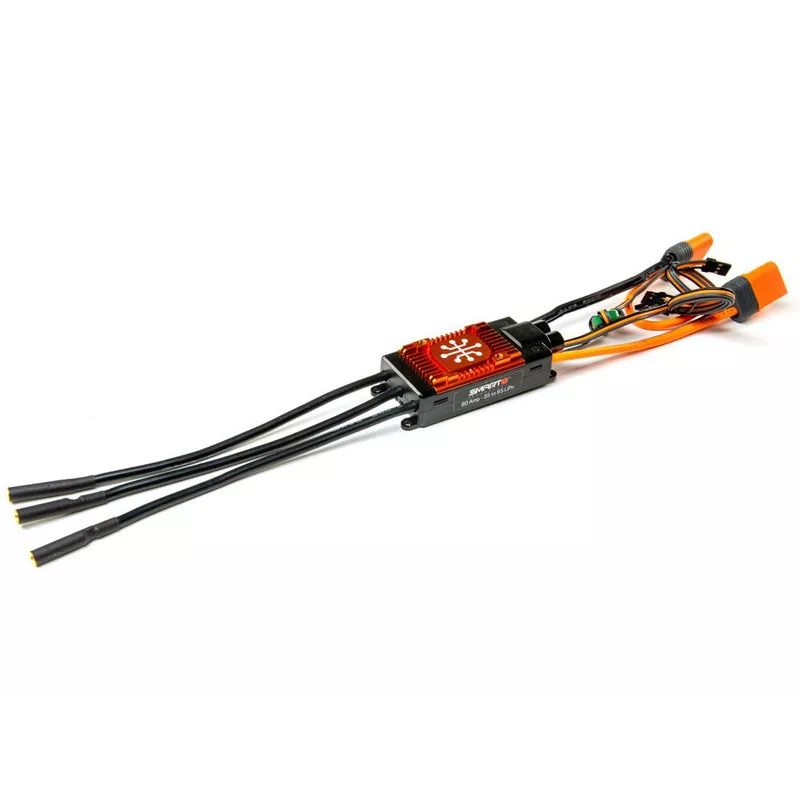

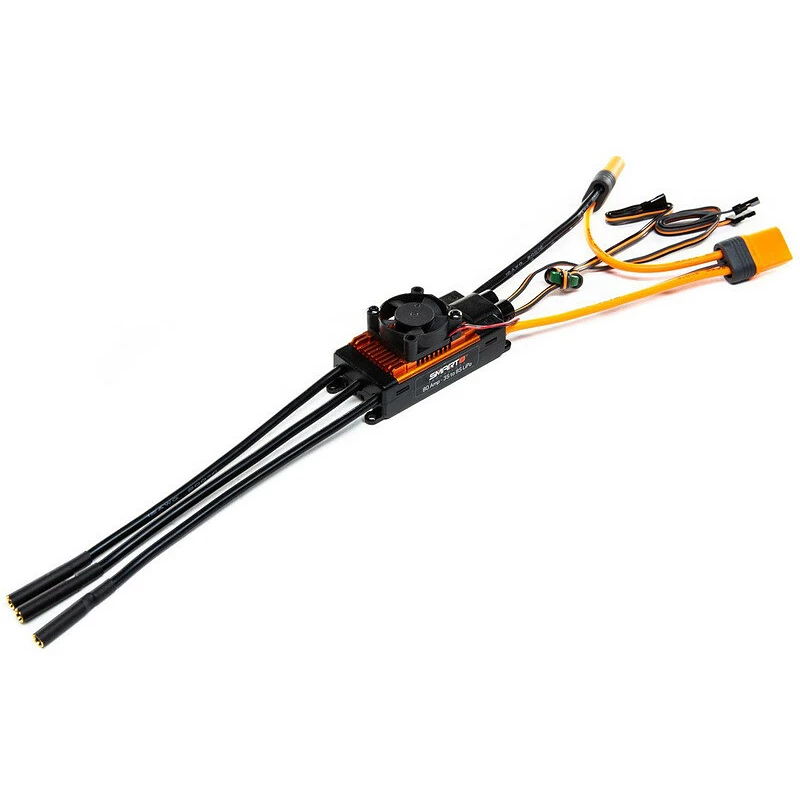

Spectrum controller Smart Avian 80A 3-8S

The Spektrum Smart innovation continues with Avian's comprehensive range of Aviation AC controllers. Thanks to Smart technology, it provides a perfect overview of your powertrain condition, providing real-time telemetry with current, temperature, total battery voltage, battery cell voltage, battery temperature, remaining capacity and engine speed . And without additional sensors! Smart technology ensures that all the electronics of your aircraft model work together seamlessly for maximum efficiency and performance. It provides status information for each component of the system, increases your confidence in its capabilities, and makes the entire drive system easy to use. The Smart system consists of a compatible Spektrum transmitter, a Smart receiver, a Smart controller, or a Smart battery.

Controller is managed by modern 32-bit microcontroller ARM Cortex M4. Cell type, temperature and cell voltage information The Smart Battery Controller reads directly from the battery via a data wire. So you no longer need any sensors or modules, everything is simply put together. The information will be shown on the transmitter display (it is necessary to have a 2nd generation Spectrum transmitter (Spectrum DX6e, DX6, DX7, DX8e, DX8 G2, DX9, DX10t, DX18, iX12, iX20).

One-wire data transmission

An amazing innovation for transmitting the system's telemetry data using the Spektrum Smart battery (speed, temperature, battery voltage and remaining capacity) is the absence of telemetry sensors. Data from the battery is read via the data wire. Data is transmitted to the receiver via SRXL2 protocol. Of course, the Spektrum Avian controllers are backward compatible with the classic PWM signal, so you can operate the controller on a classic PWM output.

Smart Battery Information

When using the controller with the Spektrum Smart battery, the controller automatically reads all data from the battery. The Spectrum transmitter displays useful information such as the number of cycles, the remaining battery capacity, and the cell voltage.

More programming options

With the Smart programming box, you can easily change the controller settings to better suit your requirements. There's also an easy-to-use Smart Link desktop application. The application allows you to update the firmware and other detailed settings. The controller is connected to the computer via a programming box.

Easy installation of the controller

Avian controllers are in a plastic box. You can either screw the controller into the model or attach it with double-sided tape. There is a large cooling hole on the top.

Key features of the Spektrum Smart Avian 80A controller

• Simple wiring requires no additional sensors
• The controller is compatible with the SRXL2 protocol, but also with the classic PWM signal (telemetry data transmission is not possible here).
• The controller contains a modern 32-bit microcontroller with ARM C core ortex M4
• More programming options thanks to the Smart programming box including firmware update
• Two BEC power outputs
• Overcurrent and thermal protection
• Automatic disconnection of LiPo at low voltage
• Fail Safe Protection
• Compact, easy to install
• The robust plastic case with heat dissipation is easy to install in the fuselage

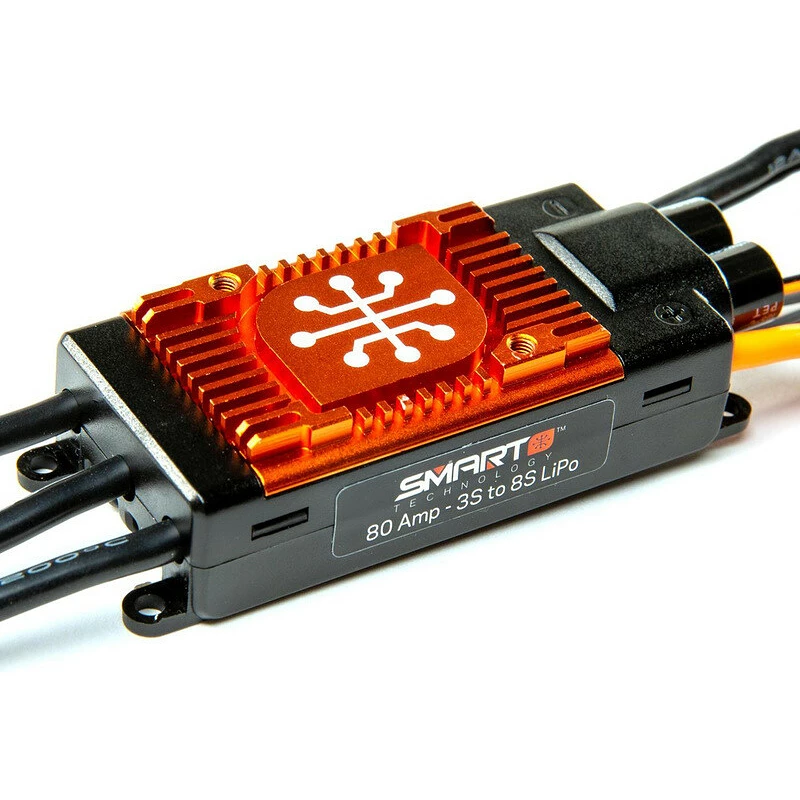

• Aluminum cooler for high efficiency
• Adjustable high power BEC

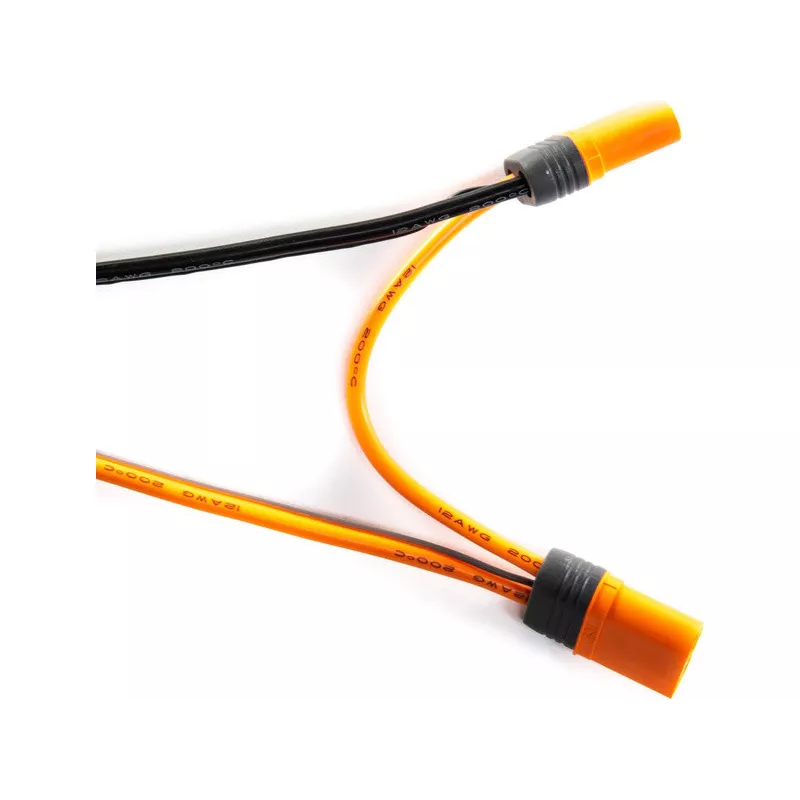

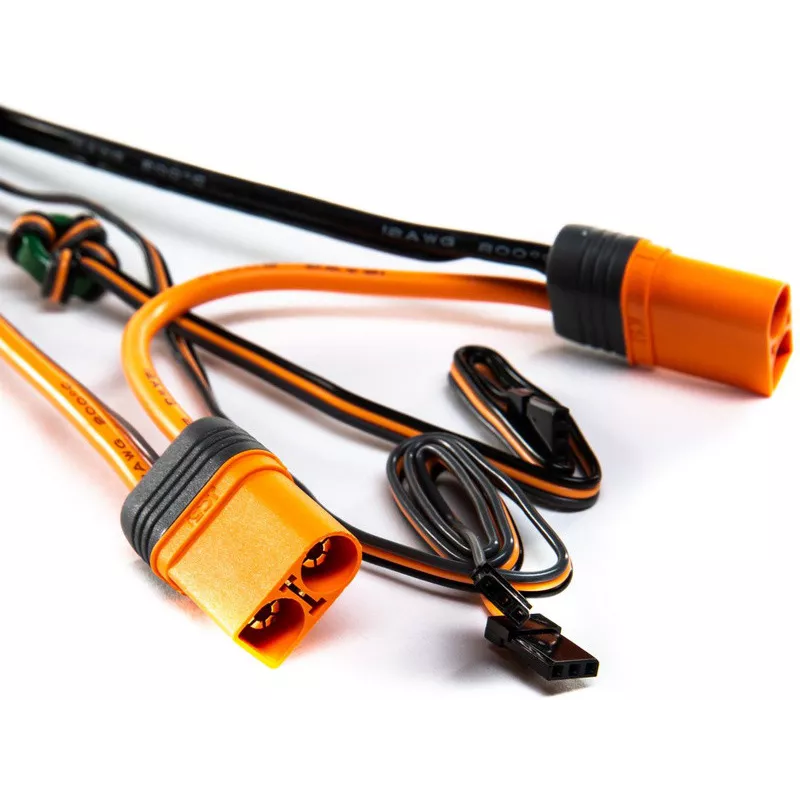

• In the factory, the controllers are equipped with connectors C5, which are compatible with EC5 connectors
