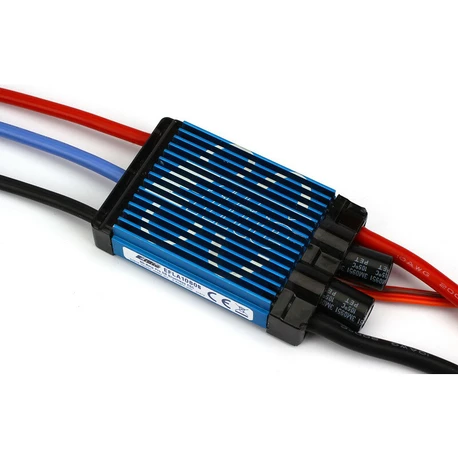

E-flite regulator AC 80A PRO SB EC5

Microprocessor-controlled electronic speed controller for AC model aircraft engines. Modern software ensures very fine control over the entire range of speed ranges as well as high efficiency. The regulator is equipped with a switching power supply for BEC 2.5 A. This means that the battery supply voltage is transformed into BEC 5 V with high efficiency (around 80% depending on current consumption and supply voltage) even at high current consumption. This allows you to use only one battery common to servos and motor! The controller is set automatically when the power supply is connected. With safe commissioning and a system to automatically shut down the motor when the battery voltage drops, these controllers are suitable for everyday routine operation.

• Permanent maximum current 80 A, max peak current 100 A
• Input voltage 3-6 cells LiPol, 9-18 cell NiCd / NiMH
• Connection of up to 7 analog or 6 digital standard servos, connection with BEC
• Powerful heat sink for heat dissipation
• Programmable brake
• Safety mode against accidental start, separate switch
• Programmable low voltage setting
• Use of new technologies for lower weight
