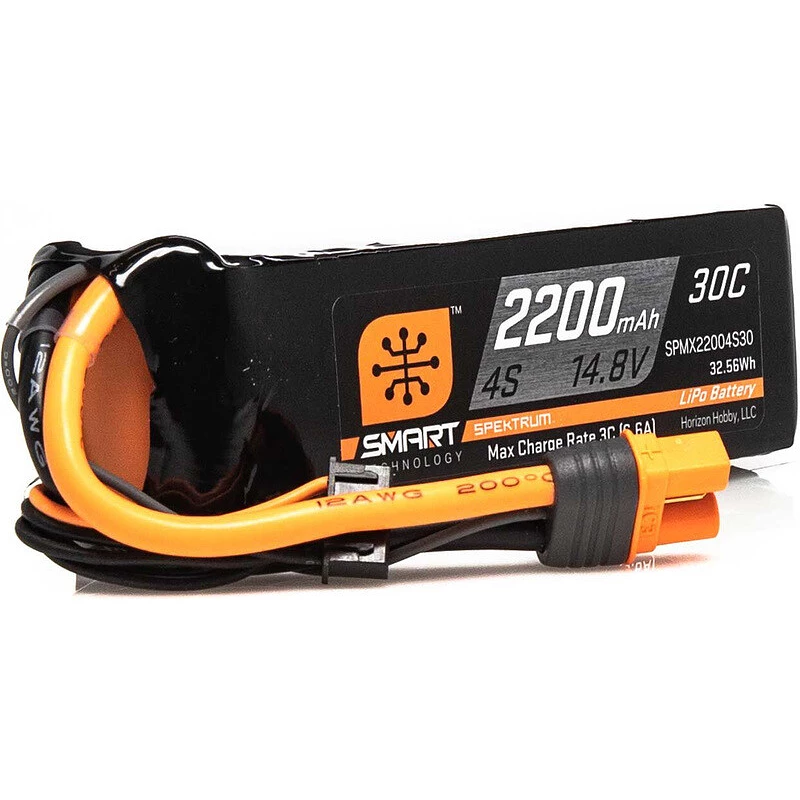

Spectrum Smart LiPo 14.8V 2200mAh 30C IC3
Express delivery
Large selection of carriers
Satisfaction guarantee
LiPol battery Spektrum LiPol 14.8V 2200 mAh 4S 30C Smart IC3 with integrated Spektrum Smart technology and IC3 connector offers control over battery status and safer charging. When charging the Spektrum ™ Smart charger, parameters, battery history and more are available when the battery is connected to the charger. After operation, parking charging can be set.
Features of Smart technology
- Spektrum Smart technology allows easy charging and maintenance of batteries
- The integrated micro chip stores unique parameters for each battery
- The new IC3 and IC5 connectors are compatible with EC3 and EC5
- Save time and hassle with charging, maintenance and battery life
- Intelligent discharge allows the battery to automatically discharge to a safe voltage
Spektrum Smart LiPol batteries store unique data:
- Battery brand
- Battery type
- Battery capacity
- Battery capacity status
- Tension of individual cells
- Battery temperature
- Charging / discharging cycles
LiPol Spektrum Smart batteries keep a log of errors, including the number of cases of overheating, over-discharging and over-charging, which can be useful in determining whether the battery has been correctly selected for the application. The smart battery loads its charging parameters into the Spectrum Smart Charger automatically so that charging is as easy as pressing the "Start" button. The charging speed of the Smart battery is customizable, allowing you to take full advantage of the set with faster charging values.
SMART Spectrum technology
After connecting the charger to the Spektrum Smart battery, the parameters and status of the LiPol battery are read from the Smart Memory microchip integrated in the battery. The battery settings can be seen on the LCD display via the charger, so all you need to do to charge the battery is press the "Start" button. Smart technology will take care of the rest. Each Smart LiPol charger is equipped with a new generation IC3 výstup output connector, which has an integrated pin for data transfer from the battery, on the LCD display.
Clear data
The integrated microchip allows the Smart Battery to store important information such as battery brand, type, number of cells, capacity, number of charge cycles, number of discharges, capacity rating, battery temperature and internal resistance. In addition, each battery stores a log of unhealthy events such as overcharging, overcharging, and overtemperature.
Easy charging
Preset battery parameters, such as charging, discharging and storing, are automatically transferred from the Spektrum Smart battery to the charger, making charging very easy. The charging speed of individual batteries can be readjusted at any time, which allows you to take full advantage of the capabilities of batteries with higher charging speeds. The integrated microchip on each Smart battery remembers the last set charging current, so the next time you connect it, these settings will be set automatically again. Another feature that the Smart microchip enables is the simple cell voltage control. When you connect the IC3 or IC5 battery, the voltage of each cell is automatically displayed on the Smart charger display, and standard balancer connectors can be used.
New IC3 and IC5 connectors
Innovative connection of devices with Smart function is done using an installed microchip on each Smart battery and information is transmitted via a data cable, which is part of the new connectors IC3 and IC5. The range of IC connectors is designed to provide a stronger connection, higher heat resistance and easy installation.
SMART parking voltage setting
When programmed with the Spektrum Smart charger, the Smart batteries are automatically set to a predetermined parking voltage, where they are allowed to rest for the time you choose, between 12 and 240 hours. This feature will help extend the life of your SMART batteries by preventing your batteries from being fully charged for extended periods of time, which can damage the chemical integrity of lithium polymer cells. This unique feature affects longer battery life and better performance over the life of the kit.
