Traxxas TQi 2-channel transmitter, TSM receiver

Package contents

The package includes a dual-channel TQi transmitter, a TSM receiver, and instructions. The 6511 Bluetooth module is sold separately!

Characteristics

Traxxas TQi dual-channel 2.4 GHz RC kit with telemetry, now with the option of revolutionary wireless BlueTooth data transmission (BlueTooth module 6511 sold separately) to your devices with the Apple iOS operating system (iPod, iPod, iPhone, ...) or Android (Samsung Galaxy S ...). You can not only clearly set the transmitter parameters, but also see all telemetry data in real time.

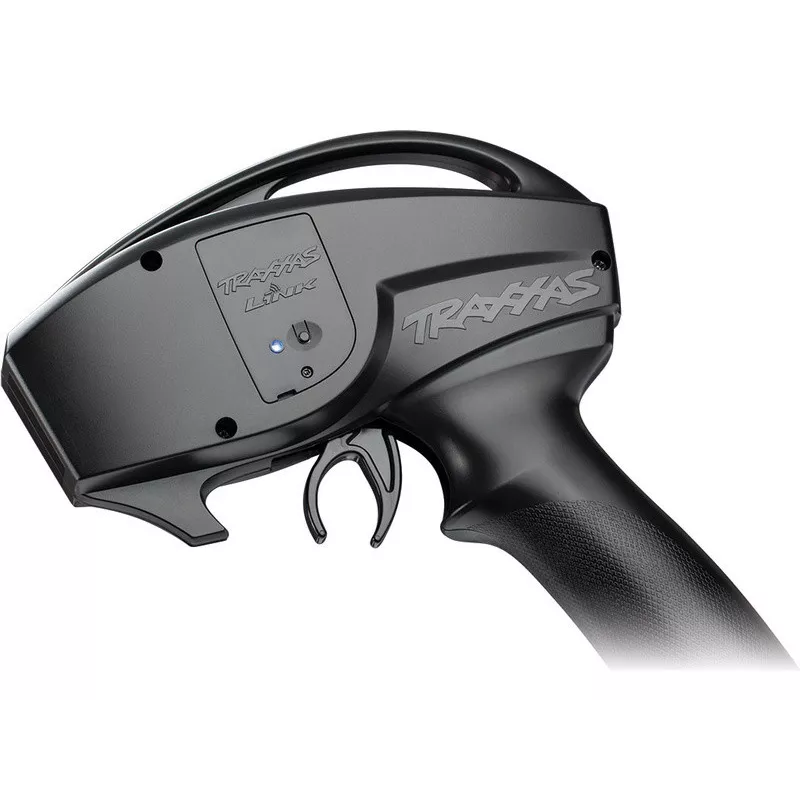

There is a slot for a BlueTooth module on the back of the transmitter, which can be paired wirelessly with any Bluetooth LE device running Apple iOS or Google Android. The module is compatible with iPhone 4S and higher, iPod 5 and higher, iPad 3rd generation and higher. The application is free to download from the AppStore or GooglePlay .

The Traxxas Link App is a powerful app that gives you complete control over the operation and tuning of your Traxxas model with stunning visualization and absolute precision settings. Traxxas Link displays real-time data, measuring speed, RPM, temperature and battery voltage, all in an app with the brilliant graphics that are a given from Traxxas.

Use the convenient telemetry application wizard to select the right telemetry sensors for your model.

Intuitive interface, data sharing

Once you've created the perfect settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. If track conditions change, simply adjust the settings and save it as a new profile.

Editing, saving, and organizing models

Traxxas Link simplifies organization of your car collection. With Traxxas Link, you no longer have to try and remember which model is paired with which transmitter. Just select a model and start having fun. Traxxas Link recognizes the model and selects the settings you last saved. Factory settings for all Traxxas models are pre-programmed so that adding a new Traxxas model to your transmitter is a breeze.

Real-time telemetry

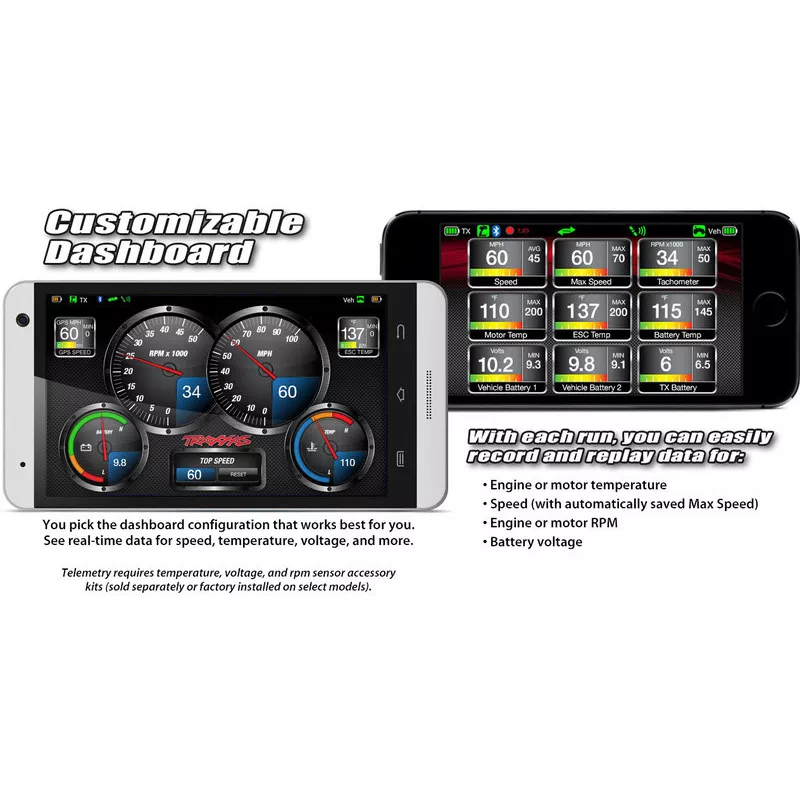

Traxxas Link collects and records real-time telemetry data while you drive. When you install optional telemetry sensors on your model, the Traxxas Link dashboard comes to life, displaying speed, battery voltage, RPM, and temperature. The app automatically detects and recognizes Traxxas Link sensors and sets them up. The dashboard can display either numeric or digital gauges. Up to nine gauges can be displayed at once. You can set warning thresholds, maximums, minimums, or averages. Use the recording feature to document your dashboard view, audio, and so you can watch your car. If you forget to record, simply press Instant Replay and you can view the last minute of your recording. Recordings can be named and saved for comparison, review, or sharing with friends.

Manage up to 30 models with Traxxas Link memory

Traxxas Link Model Memory simplifies the organization of saved cars. The TQI system automatically keeps track of which cars are paired and what settings have been used for each car. Traxxas Link provides a visual interface, transmitter history, model naming, setting adjustments, connected profiles, and locks them into memory. Traxxas Link and TQi settings store settings for up to 30 models. Simply select a model and a previously paired transmitter will immediately connect to the model. Traxxas Link recognizes the model and selects all settings. Factory settings for all Traxxas models are pre-programmed, making adding a new model to the transmitter a breeze.

Backward compatibility

The new version of TQi transmitters is fully compatible with the TRA6518 receiver.

Features

•

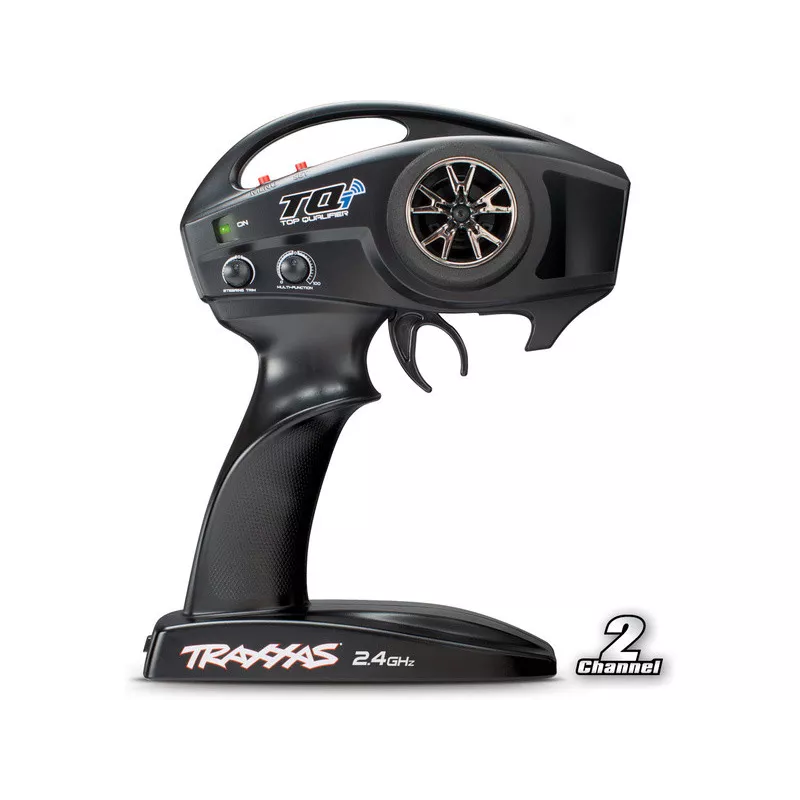

• Elegant 2-channel transmitter with integrated antenna

• Memory for 30 models

• 5-channel receiver with 3 telemetry connectors and expansion telemetry input

• Easy setup with 2 buttons

• Failsafe function

• Direct Sequence Spread Spectrum (DSSS) technology for maximum range and reliability

• Powered by only 4 AA batteries

• Real-time telemetry

• Adjustable control panels

• Exponential control/throttle

• Dual steering/brake deflections

• Servo reverse

• Endpoint settings

• Clear management of an unlimited number of models with the Traxxas Link app, data sharing and playback options


Receiver

Traxxas 5-channel RC receiver for Traxxas TQi transmitters with integrated telemetry and Traxxas Stability Management (TSM) stabilization system. The receiver is compatible with the older version of TQi transmitters (with docking station) as well as the new version with Bluetooth.

There is an expansion module for the receiver that allows you to connect all possible sensors, including a GPS speed sensor, at the same time.

Features

•

• 5 proportional channels

• Telemetry input for battery temperature and voltage sensor

• Telemetry input for speed sensor

• Possibility of expanding telemetry inputs using a special module, available under order no. TRA6550X.

• Temperature and voltage sensors, a speed sensor, and all mounting accessories for sensors are available for all Traxxas car models.

• Easy to use, pairing with a button

• The stabilization system can be adjusted either with the rotary control on the transmitter or using the Traxxas Link app


TSM stabilization

The receiver is equipped with electronic TSM stabilization. Integrated MEMS sensors constantly monitor the model's position and steering wheel deflection. This means that the model automatically corrects the steering wheel so that the model stays in the desired direction. TSM stabilization does not reduce the driving pleasure in any way, on the contrary, at higher speeds the model could be difficult to control without stabilization.

You can conveniently change the intensity of TSM stabilization using the multi-function button on the TQi transmitter.

Example of TSM stabilization off and on

Telemetry

The receiver contains a telemetric common input for the voltage and temperature sensor - TRA6521, TRA6523, and a telemetric input for the speed sensor - TRA6520, TRA6522.

The receiver also includes a 4-pin connector for connecting a telemetry expansion module, into which you can connect up to 6 additional sensors, including a very accurate GPS speed sensor.

Telemetry wiring diagram
