Castle engine 1415 2400ot / V senzored, reg. Copperhead

Package contents

The package contains the regulator, the motor, the dust cover of the connector for the motor sensor, the CZ manual and the EN manual.

Characteristics

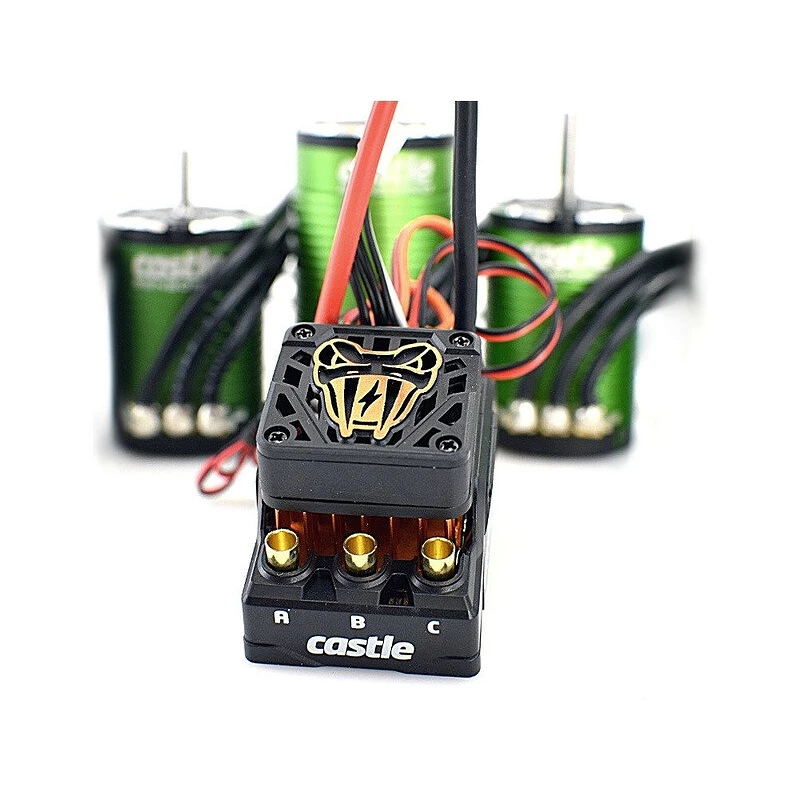

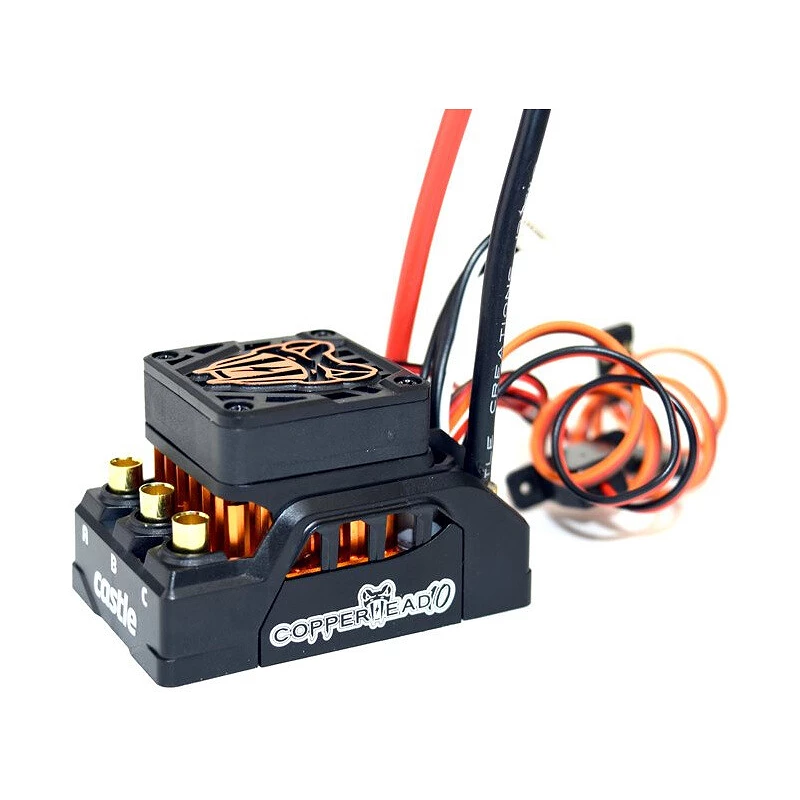

The Copperhead controller with an AC sensor motor 1415 2400rpm, for RC car models in a scale of 1:10, is an ideal choice for those who want an AC sensor motor in the model. Thanks to the sensor AC motor and the state-of-the-art electronics of the controller, you get high power, acceleration and smooth running even at low speeds. The controller has a very powerful BEC circuit and it is possible to supply powerful high-torque servos with it. The completely new design of the controller was created for moderately demanding users. The controller is powerfully located between the Sidewinder 4 and the extremely powerful Mamba X.

The revolutionary CRYO-DRIVE technology increases efficiency and lowers the temperature of the electronics. Supply voltage for this combo 3S-4S LiPo . The BEC is adjustable to 5.5 V or 7.5 V and can handle a current of up to 6A.

Recommended use

Construction

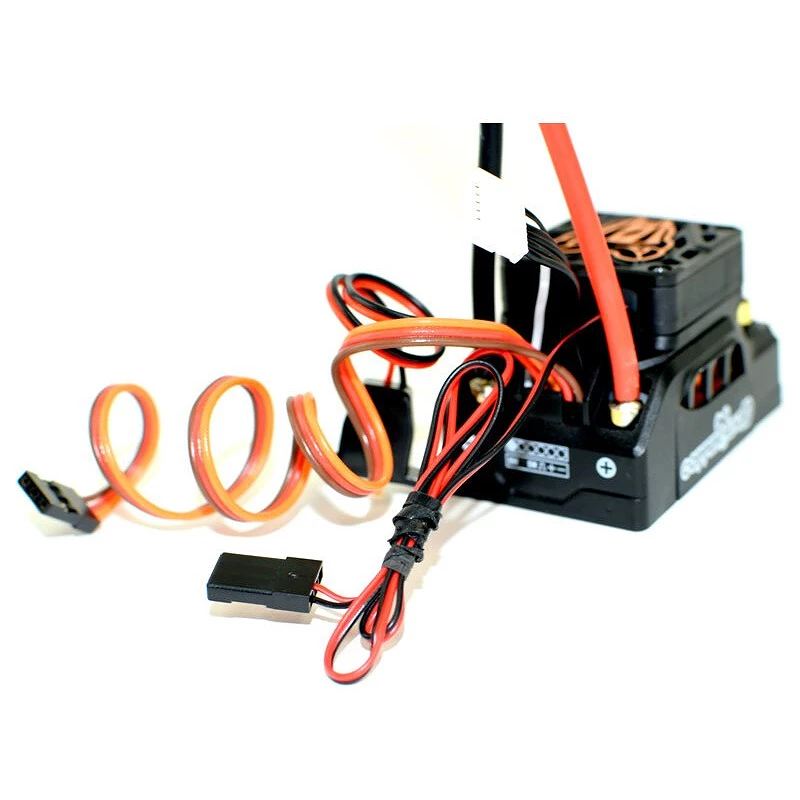

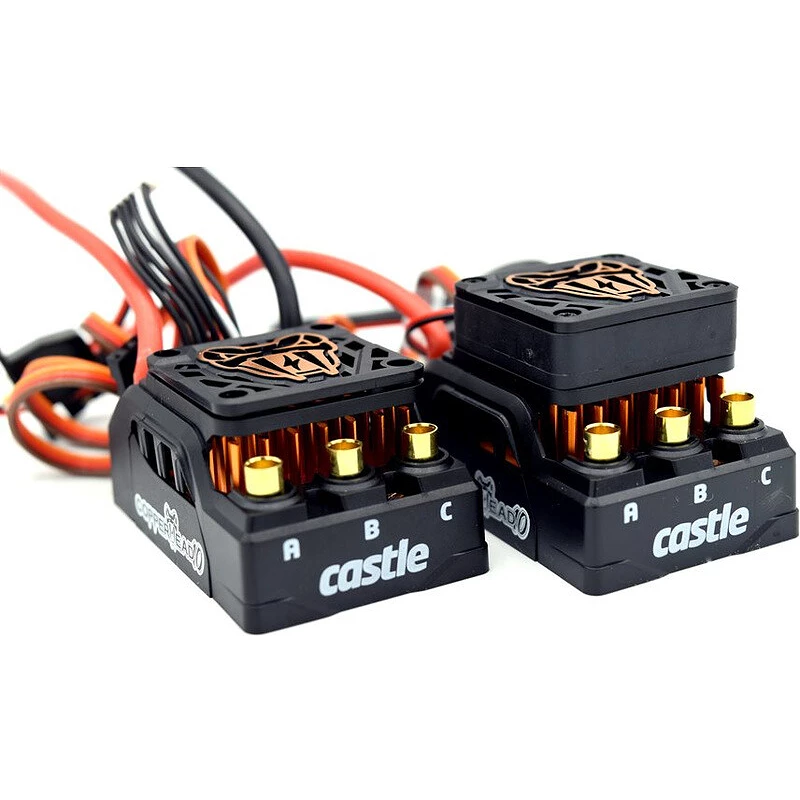

The electronics of the controller are housed in a robust body and encapsulated with a waterproof epoxy. This system minimizes the risk of water entering the electronics and promotes efficient heat transfer. The modified radiator fins maximizes the airflow from the 30 mm fan. The fan is not waterproof and can be removed when used in a wet environment. The controller is also equipped with gold-plated connectors for motor connection, LED indication and a switch with a rubber cover (against the ingress of dirt). Power input cables are tin-plated, it depends on you which connector you have in the model.

Cryo-Drive technology

The biggest losses occur during the switching on and off of the power transistors. Castle Creations has developed a completely new software that reduces the switching frequency of power transistors. The result is a radical reduction in heat loss in both the controller and the motor itself, increased efficiency and ultimately longer driving times.

SmartSense technology

SmartSense mode ™ uses engine sensors to start the engine and ensures smooth starting, excellent torque and control at low speeds. As soon as the motor spins, it switches smoothly to the effective mode without a sensor. This gives the model more energy instead of wasting heat and energy dissipation.

Programming options

The controller can be set via transmitter (basic settings), Castle Link USB adapter, Castle field Link or B-Link Bluetooth.

Only basic parameters can be set via the transmitter. Complete settings can be made via the Castle Link USB adapter or Castle field Link.

DATA LOG Lite from driving and sound signaling

The controller allows to record basic data - battery voltage, controller and motor temperature, motor speed. At the end of the race or during test drives, you can view this data on a computer and evaluate it. While not a full version of the Mamba X Extreme 1:10 data logging features, these parameters are an excellent source of information for maximizing performance and battery life.

The controller also supports sound signaling. With the help of sound signals, you can easily recognize what is happening with the controller.

Telemetry for transmitters

By connecting a telemetry adapter Telemetry Link Spektrum XBUS (sold separately) you get complete telemetry of the controller, which you can view on Spektrum transmitters. You can get the same function for Futaba transmitters by purchasing the Futaba S.BUS2 Link Telemetry adapter. The function must be enabled via the Castle Link program.

Controller properties

• Power supply 2S-4S LiPo (max. 16.8 V)
• Supported motors: AC sensorless and sensor, DC
• Powerful integrated BEC 5.5 V or 7.5 V (peak 6A), factory 5.5 V
• CRYO-DRIVE technology ™
• Robust body
• Cooler
• Controlled fan 30 mm
• Compatible with S.BUS2 Telemetry Link
• Waterproof construction
• Possibility to record data log (Lite)
• Audible alerts for easy diagnostics
• Settings via transmitter
• Settings and updates via Castle Link USB or Castle Field Link (programming card)

Construction of Castle AC motors

The advantage of Castle AC motors is especially high efficiency and, when using a sensor controller, a gentle advantage from zero speed . Sensor motors can therefore be recommended for both fast and slow-moving models, such as crawlers or expedition RC car models.

The stator (fixed outer part of the motor) is composed of mutually insulated iron sheets of thickness. The stator winding is impregnated against moisture and is defined by a special potting compound. The winding terminals are made of solid strips.

The rotor (rotating inner part of the motor) is made of a hardened steel shaft in which neodymium magnets are glued. To increase the strength, the rotor is braided with Kevlar fabric and a two-component adhesive. Another set of 4 magnets is used to measure the rotor position. The rotor is defined between the bearings by a ring-shaped leaf spring.

In the aluminum faces there are quality ball bearings, in the rear face there are Hall sensors sensing the position of the rotor and a temperature sensor for measuring the internal temperature of the motor. / p>

Engine properties

• Power supply 3-4S LiPo
• Speed 2400Kv (max. 75,000 RPM)
• Hardened shaft 3.17 mm, length 15.5 mm
• 4mm connectors (pin)
• Dimensions o36 x 69.5 mm
• Weight 318 g
• Mounting holes M3
