Futaba 10PXR receiver R404SBS with telemetry

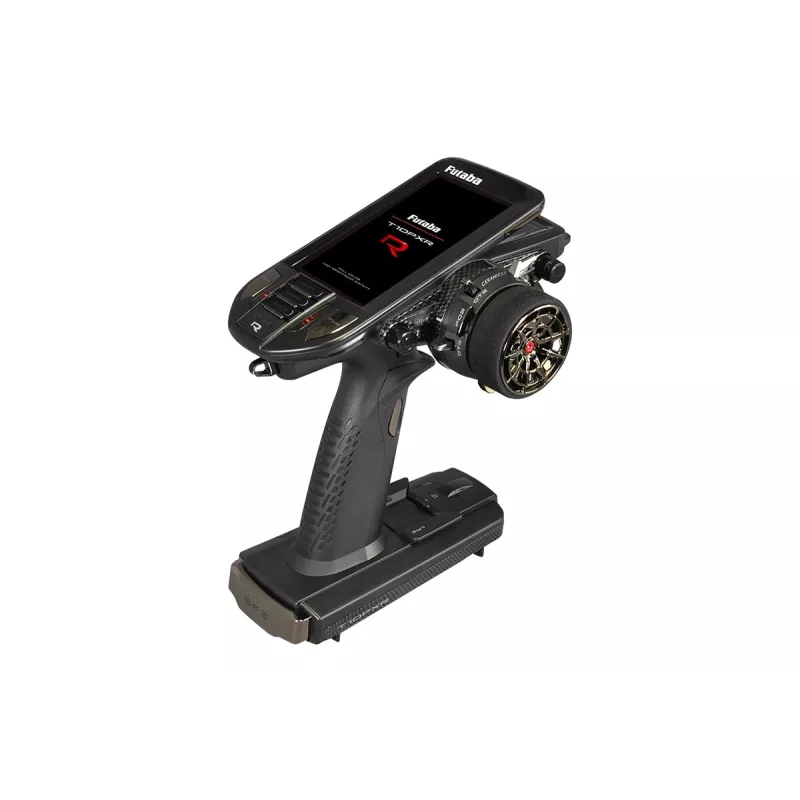

T10PXR
The latest version of Futaba's top-of-the-line ten-channel computerized steering wheel transmitter with controls mounted in precision ceramic bearings and extended accessories for individual adjustment to your hands and habits. The T10PXR uses the F-4G 2.4GHz transmission system with super fast response for both competitive and advanced recreational car and boat models. The transmitter can also be switched to transmission modes with T-FHSS telemetry or T-FHSS SR and S-FHSS without telemetry, and use the full range of T-FHSS and S-FHSS receivers for RC cars and boats. When using the R404SBS F-4G receiver, you have 4 PWM channels for classic servos (with individually adjustable mode for Futaba SR servos, digital or analog servos), channels 5-10 on the S.BUS2 serial output for S.BUS2 servos and the possibility of transmitting telemetry from sensors connected to the S.BUS2 socket.

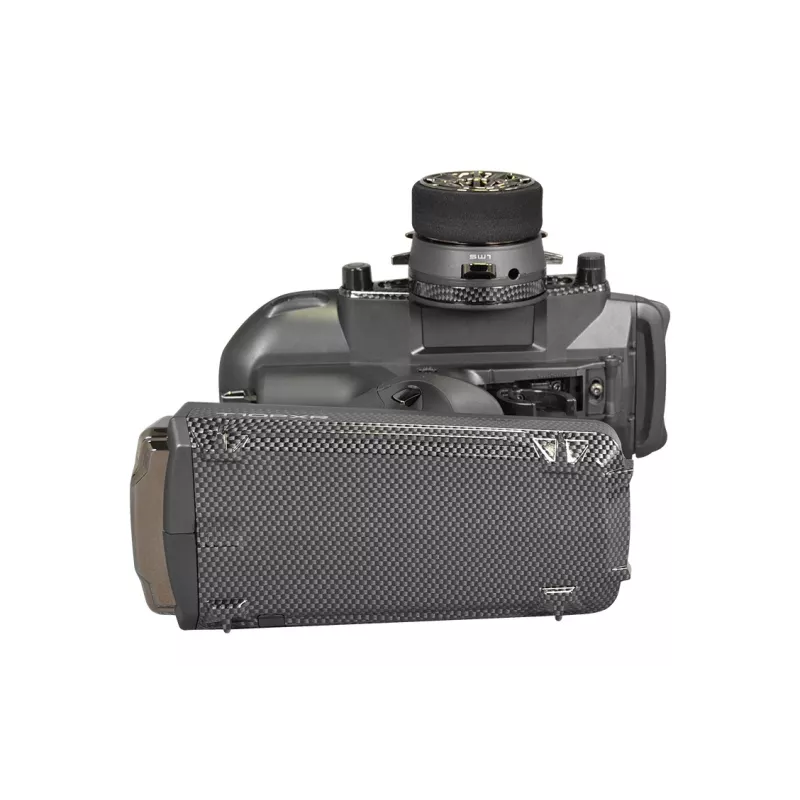

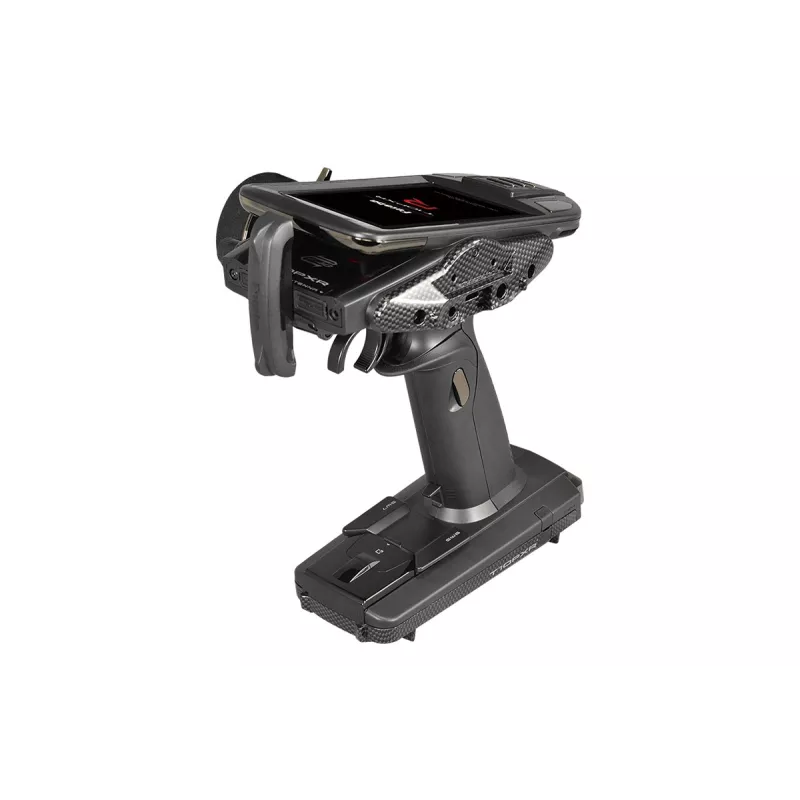

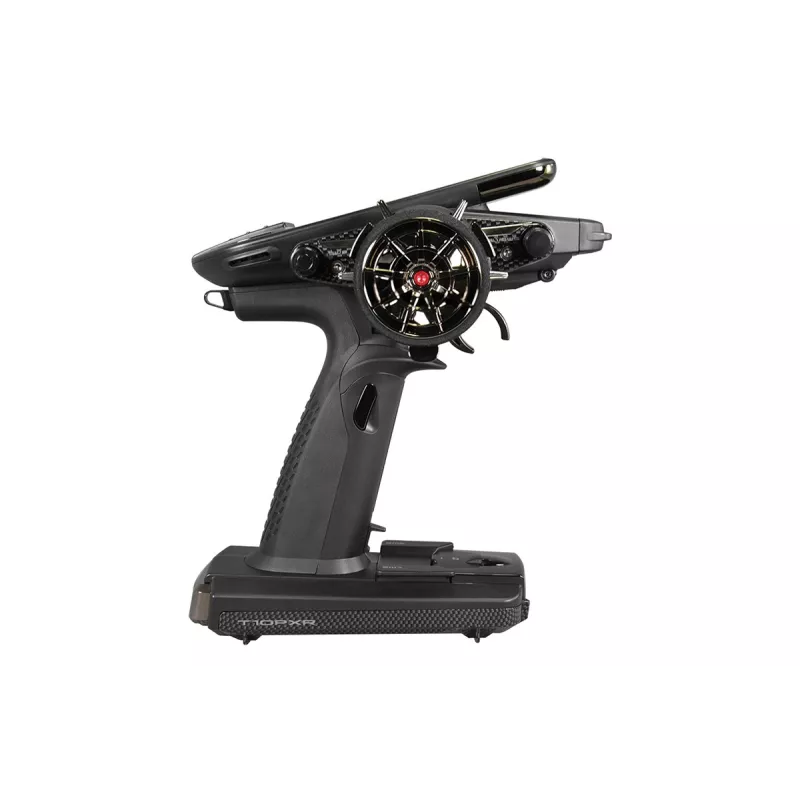

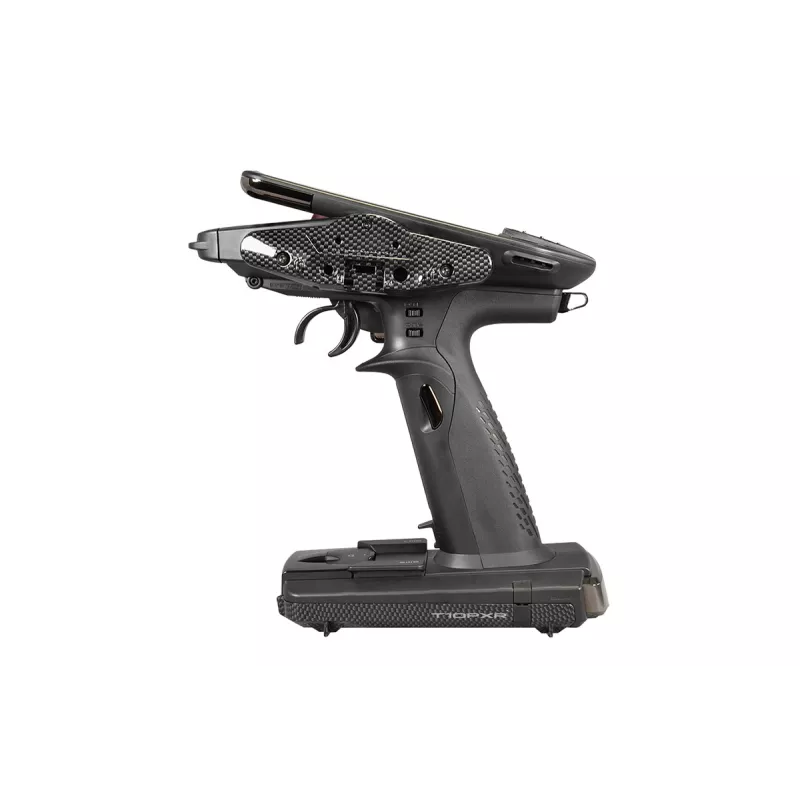

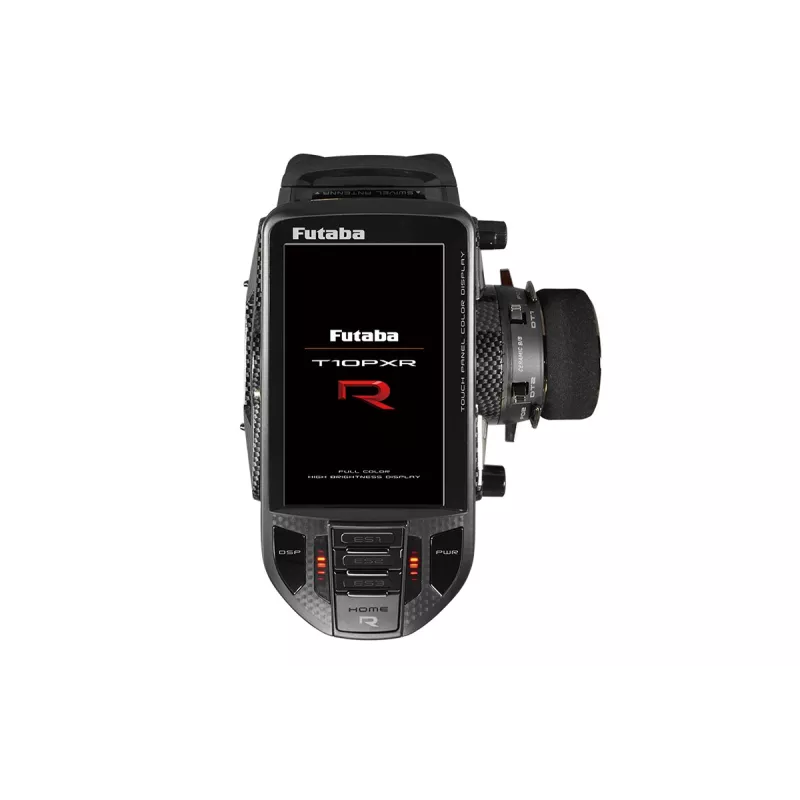

The T10PXR transmitter in a classic steering wheel design with a handle that fits perfectly in your hand is equipped with a steering wheel control, a throttle trigger, eight push-button switches, one rotary control combined with a push-button switch and six digital trims (4 around the steering wheel, 2 on the handle). The controls are arranged (or duplicated) for both right- and left-handed operation (with the steering wheel movable to the left or right side). The steering wheel and throttle have a wide range of mechanical adjustment options for perfect adaptation to your hands and driving style. Programming is done using a pair of buttons and a large backlit color LCD touch screen for easy navigation in the intuitive menu. The T10PXR has a memory for 40 models, infinitely expandable using a microSD card, and a wide range of advanced program functions for common and special car models - e.g. independent steering and drive (with 2 regulators) of the front and rear wheels for crawlers, dual-circuit brakes for large 1:5 models, gyro for drifting, ABS, traction control, mix for tanks, etc. You can switch up to 4 driving modes with different settings of many program functions, ensuring ideal adaptation of the car settings to conditions at different locations on the race track or changing weather conditions, etc.

To put the transmitter into operation, you will need 4 AA alkaline batteries or NiMH batteries stored in the holder supplied with the transmitter, but it is optimal to use a 2S LiPo battery.

F-4G transmission system
Futaba F-4G 2.4GHz is a new transmission system with a super fast response, allowing the transmission of telemetry and up to 10 channels. On channels 1-4 it is possible (depending on the settings on the transmitter, each channel can operate in a different mode):

• ultra narrowband signal for Futaba UR servos with a repetition frequency of 1666 Hz (repetition period 0.6 ms, neutral 200 µs)
• narrowband signal for Futaba SR servos with a repetition frequency of 833 Hz (repetition period 1.2 ms, neutral 760 µs)
• for classic digital servos with a repetition frequency of 333 Hz (repetition period 3 ms, neutral 1520 µs)
• for analog servos with a repetition frequency of 66 Hz (repetition period 15 ms, neutral 1520 µs)

Channels 5-10 are transmitted as serial signal for S.BUS2 servos with a repetition rate of 66 Hz.

T-FHSS SR transmission system
A very fast response transmission system with a repetition rate of 833 Hz (repetition period 1 ms, neutral 760 µs) requires the use of Futaba digital servos in SR mode (or digital servos in channels where SR mode is off). 4 channels are transmitted. Does not allow telemetry transmission.

T-FHSS transmission system
This transmission system allows the transmission of telemetry data from sensors connected to the S.BUS2 bus socket on the receiver. 4 channels are transmitted. ATTENTION: The transmitter is not compatible with T-FHSS Air receivers for flying models.

S-FHSS transmission system
The S-FHSS transmission system in "Analog Servo" mode allows you to use 5 or more transmitter channels with the R2008SB (all 7 channels) and R2006GS (max. 6 channels) "air" receivers. In "Digital Servo" mode, 4 channels are available.

Analog/Digital Servo Modes for T-FHSS/S-FHSS Transmission Systems
The "Analog Servo" mode allows the use of any servos or RC devices, since the servo signal repetition period is 13.6 ms (repetition frequency 73.5 Hz). The "Digital Servo" mode can only use digital servos, including the BLS series and most other devices such as speed controllers for AC motors. The repetition period of the servo signals is 6.8 ms (repetition frequency 147 Hz).

Transmission systems for Kyosho Mini-Z EVO and EVO2
These transmission systems allow you to pair the transmitter with RA-42 receivers, for the popular Kyosho Mini-Z EVO cars and RA-51 for Mini-Z EVO 2 or RA-53 for Mini-Z EVO 2 with telemetry and the possibility of remotely adjusting the car parameters on the transmitter. Using a conversion adapter (sold separately), it is also possible to connect the Kyosho FS-RM005 RF module to the T10PXR and use the MINIZ FHSS transmission system.

FUNCTIONS

• F-4G transmission system with telemetry, T-FHSS SR (without telemetry), T-FHSS-2.4GH with telemetry, S-FHSS (without telemetry) and Mini-Z for RC cars.
• 10 proportional channels in the F-4G transmission system / 7 proportional channels in the S-FHSS Normal transmission mode / 4 proportional channels in the T-FHSS SR, T-FHSS, S-FHSS (High Speed) and Mini-Z transmission systems
• Steering wheel control stored on precision ceramic ball bearings with adjustable neutralization and continuously adjustable mechanical range of deflections, possibility of relocation to the left or right side of the transmitter (for left- or right-handed people) and eccentric displacement using an adapter (supplied with the kit)
• 2 interchangeable steering wheels of different diameters, adapter for continuously adjusting the steering wheel movement range (32° to 36°)
• Throttle control mounted on precision ceramic ball bearings with adjustable neutralization by range of movement for brake/reverse function
• 8 pushbutton switches (assignable) - 2 of which are paddle switches on the steering wheel
• 1 rotary control/pushbutton switch (assignable)
• 6 digital trims (assignable)
• 3.5 mm headphone jack (telemetry voice output)
• MicroSD card slot
• Charging socket (when using NiMH batteries)
• USB-C port for using the transmitter as a game controller for RC simulators and PC games

Program functions--*Memory for 40 models with the possibility of copying, resetting and setting a 10-character model nameMemory expansion with a microSD cardSelection of transmission system: F-4G, T-FHSS SR, T-FHSS, S-FHSS (Normal or High Speed modes), Mini-Z EVO and Mini-Z EVO 2Up to 4 driving modes for each model (4 switchable sets of settings)Adjustment of deflection size for all channelsServo deflection limit (limitation of the max. deflection range when using mixers)Reversal of deflection direction for all channelsSubtrims for all channelsAdjustment of steering and throttle response curve: Exponential deflection curve, polyline curve with straight sections or a curve with up to 21 points, independently adjustable for left/right steering and forward/reverse throttleAdjustable steering and throttle response rate for easy "blunting" of too sharp response by setting a single parameterServo speed for steering and throttleDual steering deflectionsJump accelerationServo monitor (for quick control of servo movement, especially in mixed channels)ABSSafe idlingThrottle/brake control modesTraction controlStart (protects against wheels spinning on uncohesive surface during start)Engine shutdownAssignment of controllers for individual channelsEmergency fail safe deflections for all channelsS.BUS servo settings including UR and SR modes Remote control of Futaba speed controller program functionsTrim function assignmentSwitch function assignmentMix for steering with 2 servosMix for front/rear brakes with 2 servosMix for gyro control4WS mix for independent control of front and rear axles for crawlersMix for propulsion system with 2 speed controllersCPS mix for LED light controlMix for tanks – for controlling the movement of tracked vehicles5 freely programmable mixesMix for outboard motors (simultaneous control of direction and tilt of the entire engine up and down)Mix for winch for expedition carsTransitional brake for instant start of dragsters4 timers (stopwatch, timer, lap time with 200 lap memory).S.BUS servo settingsTelemetry displayTelemetry sensor settingsTelemetry voice outputTelemetry data recording to a microSD cardWireless setup and update of advanced gyro for GYD550, GYD560, GYC480 cars (when using R404SBS/SBS-E and R334SBS/SBS-E receivers)Firmware update of compatible receivers and servos

Compatible receivers

• Futaba R204GF-E S-FHSS/FHSS-2.4GHz (4-channel, only for models with electric drive)
• Futaba R2104GF S-FHSS/FHSS-2.4GHz (4-channel, 4.8-6.0 V power supply, not for HV servos)
• Futaba R304SB T-FHSS-2.4GHz with telemetry on the S.BUS2 bus (4-channel)
• Futaba R304SB-E T-FHSS-2.4GHz with telemetry on the S.BUS2 bus (4-channel, only for models with electric drive)
• Futaba R334SBS T-FHSS SR/T-FHSS 2.4GHz with telemetry on the S.BUS2 bus (4-channel)
• Futaba R334SBS-E T-FHSS SR/T-FHSS 2.4GHz with telemetry on the S.BUS2 bus (4-channel, only for models with electric drive)

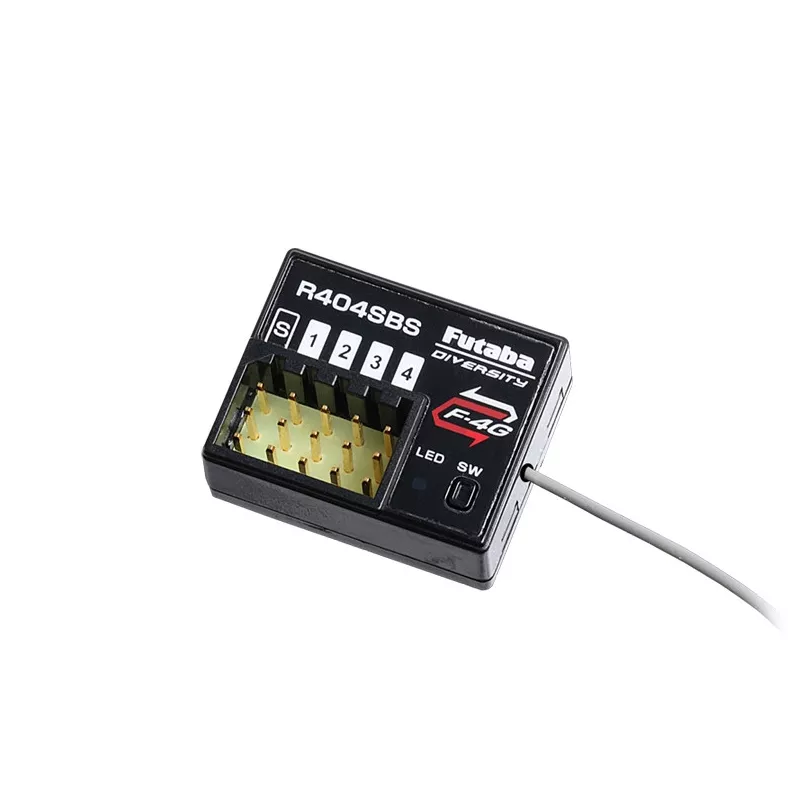

• Futaba R404SBS F-4G 2.4GHz with telemetry on the S.BUS2 bus (10-channel)
• Futaba R404SBS-E F-4G 2.4GHz with S.BUS2 telemetry (10 channels; channels 5-10 on S.BUS2, only for electric models)
• Futaba R2006GS S-FHSS in Normal mode (6 channels)
• Futaba R2008SB S-FHSS in Normal mode (8 channels, 7 channels used)
• Kyosho RA-42 in Mini-Z EVO mode, RA-51, RA-53 in Mini-Z EVO 2 mode

Compatible telemetry sensors

• Temperature sensor (SBS-01T)
• Temperature sensor (SBS-01TE)
• Tachometer with magnetic sensor (SBS-01RM)
• Tachometer for AC motors (SBS-01RB)
• Voltage sensor (SBS-01V)
• Current sensor (SBS-01C)
• GPS sensor (SBS-01G, SBS-02G) - speed and distance

T10PXR SET INCLUDES

• Futaba T10PXR 2.4GHz transmitter
• R404SBS receiver with telemetry
• ASA steering wheel angle adjustment adapter
• 32° steering wheel adapter
• Eccentric steering wheel adapter (APA)
• Brake lever large
• Two-finger brake lever
• Angle stop 4x
• Steering wheel angle insert 5°
• Steering wheel with large diameter
• LiPo battery insert
• Trigger guard (Left/Right)
• Rubber grip
• Paddle switch cover 2x
• Steering wheel neutralization spring Soft/Medium/Hard
• Trigger neutralization spring Soft/Hard
• Allen handle
• UR/SR stickers
• Instructions for use
