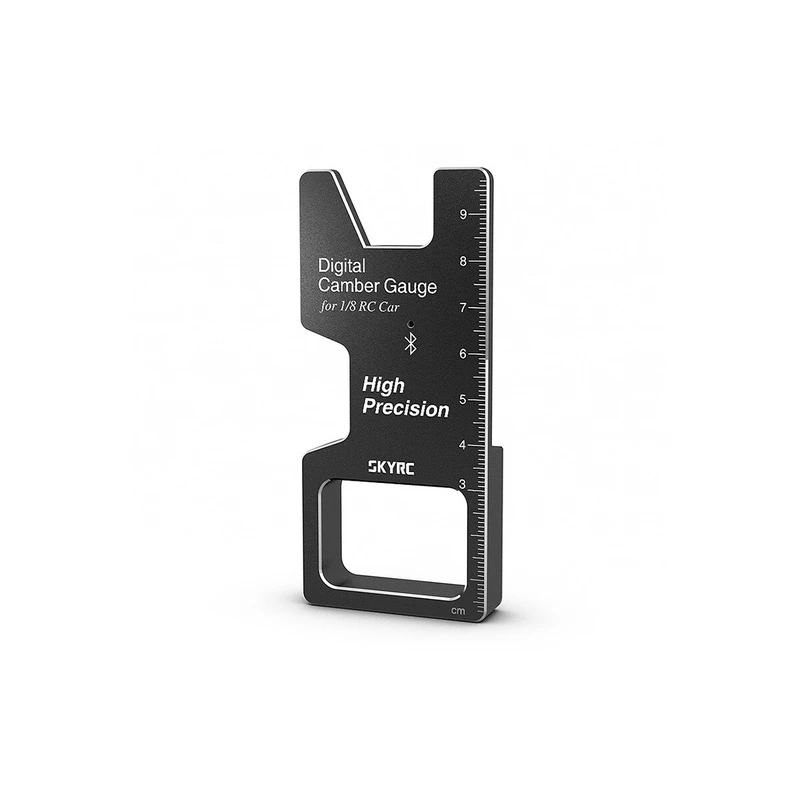

The digital inclinometer CTG-016 SkyRC is a device for measuring angles on the wheels and axles of RC car models in a scale of 1:8. Very simply, with high accuracy and resolution, it can measure the transverse inclination of the wheels, toe-in/out, etc. With the RC Gears application on a smartphone connected via Bluetooth, you can then measure the angles and display them graphically and digitally.

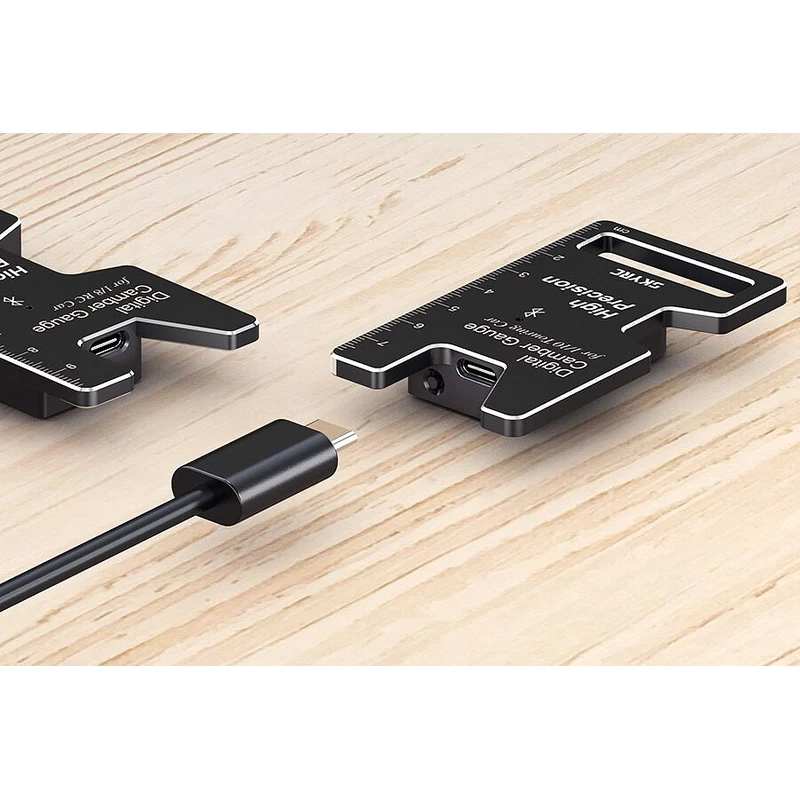

The inclinometer is capable of measuring angles with an accuracy of 0.2° in the range of ±17.5°. It is powered by a built-in 1S LiPo battery (for recharging, you can use a regular 5V smartphone charger with a USB Type C cable). Operating states are indicated by the LED indicator (Bluetooth connection, low battery voltage).

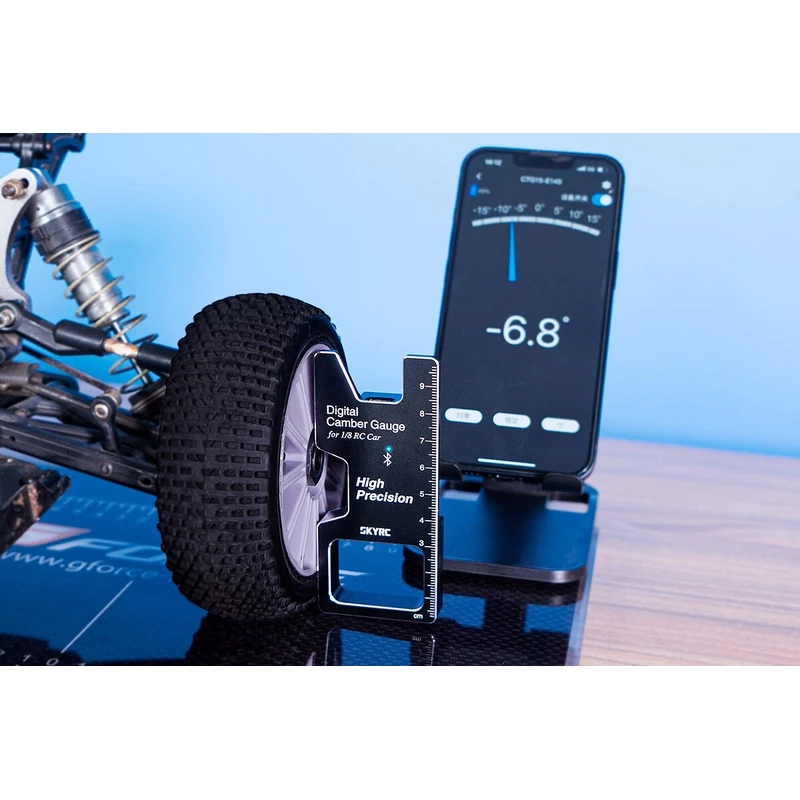

When turned on, the inclinometer connects via Bluetooth to a smartphone or tablet (Android or iOS) running the RC Gears app. And then all you have to do is place the inclinometer next to the wheel of the car (to measure the toe-in, the car is placed perpendicularly with the wheels resting on a horizontal plate) and accurately measure, adjust and adjust.
The set includes: digital inclinometer CTG-016, user manual.
| Power supply | 3.4-4.2 V (built-in 1S LiPo battery) |
| Operational consumption | Less than 10mA |
| Charging | 5 V/200-300 mA, USB-C |
| Measurement accuracy | ±0.2° |
| Angle measurement range | ±17.5° |
| Dimensions | 100x45x12 mm |
| Mass | 58 g |
