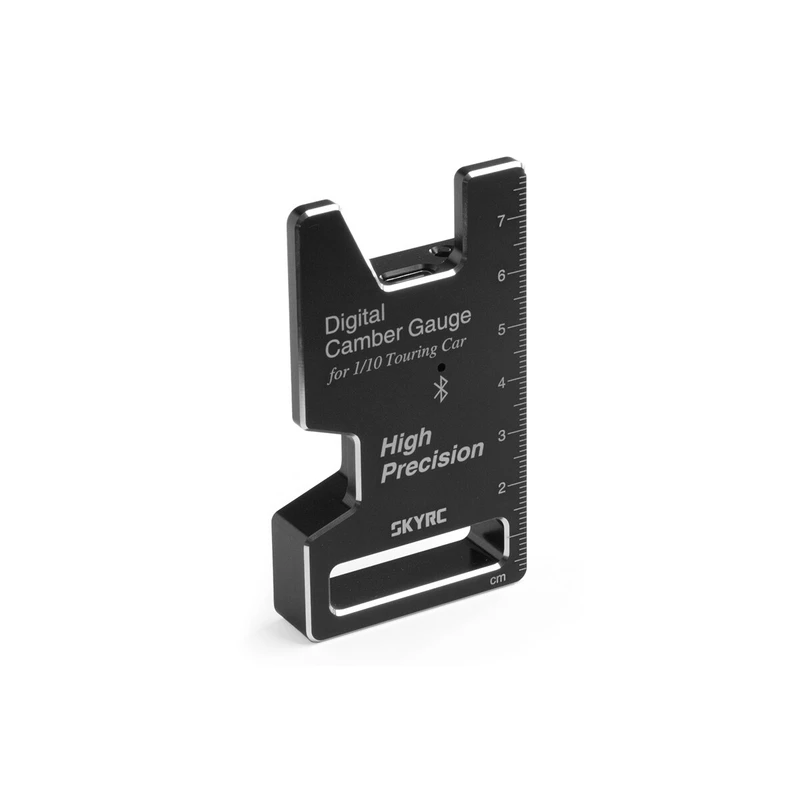

SKY RC CTG-015 Digital inclinometer
3SK5042
SKY RC
Digital electronic inclinometer for adjusting 1:10 RC car chassis (wheel inclination, toe-in). Range of measured angles +/-17.5°, accuracy +/-0.2°. The inclinometer is controlled via the RCGears mobile application (iOS/Android) using a Bluetooth connection. Po
Express delivery
Large selection of carriers
Satisfaction guarantee
Digital inclinometer CTG-015 SkyRC is a device for measuring angles on wheels and axles of RC car models. Very simply, with high accuracy and resolution, it can measure the transverse inclination of the wheels, toe-in/out, etc. With the RC Gears application on a smartphone connected via Bluetooth, you can then measure the angles and display them graphically and digitally.
The inclinometer is capable of measuring angles with an accuracy of 0.2° in the range of ±17.5°. It is powered by a built-in 1S LiPo battery (for recharging, you can use a regular 5V smartphone charger with a USB type C cable). Operating states are indicated by the LED indicator (Bluetooth connection, low battery voltage).
When turned on, the inclinometer connects via Bluetooth to a smartphone or tablet (Android or iOS) running the RC Gears app. And then all you have to do is place the inclinometer next to the wheel of the car (to measure the toe-in, the car is placed perpendicularly with the wheels resting on a horizontal plate) and accurately measure, adjust and adjust.
The set includes: digital inclinometer CTG-015, user manual.
| Power supply | 3.4-4.2 V (built-in 1S LiPo battery) |
| Operational sampling | Less than 10mA |
| Charging | 5 V/200-300 mA, USB-C |
| Measurement accuracy | ±0.2° |
| Angle measurement range | ±17.5° |
| Dimensions | 80x45x12 mm |
| Mass | 53 g |
