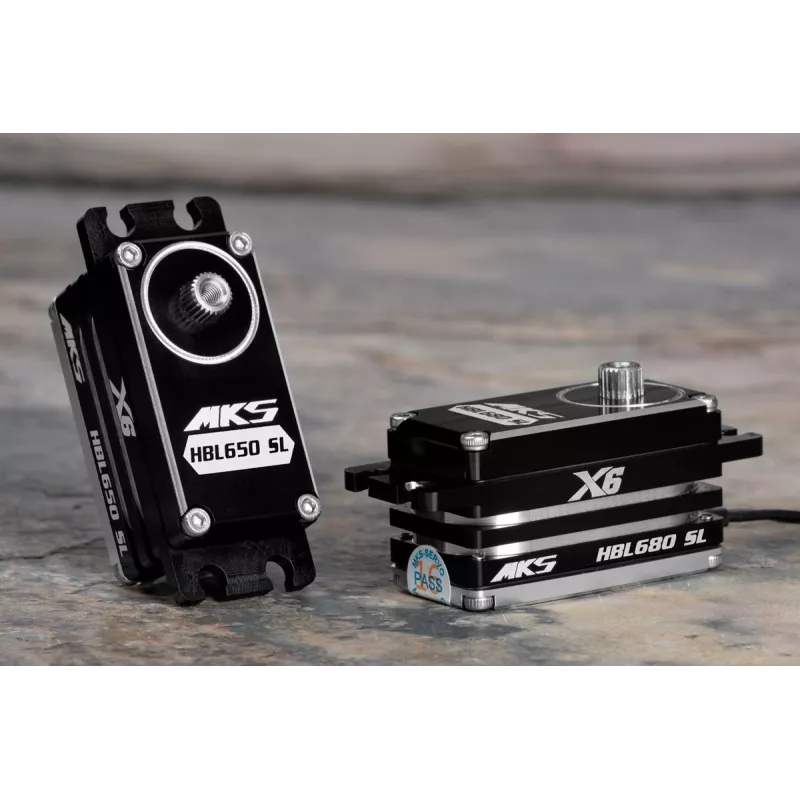

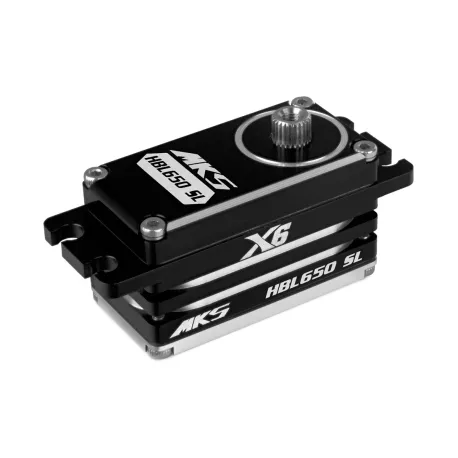

HBL650SL (0.081s/60°, 24.4kg.cm)

Super strong and super fast programmable digital low profile standard servo with brushless motor, metal gears and output shaft mounted on two ball bearings. Ideal for helicopter cyclic size 550-700. For perfect cooling even under very high loads, the servo is housed in an aluminum box with a ribbed middle part.

Increased supply voltage 6.0-7.4 V (nominal).

With the help of the DSP-1 USB servo programmer/interface and the PC utility program, you can program a wide range of servo parameters:
Dead Band: The dead band width indicates the amount of change in the pulse width of the control signal before the position of the servo output shaft/lever changes. Default setting MKS = 1 µs or 1.1 µs
Lock: Setting the servo behavior when it does not receive a control signal - Holds the position corresponding to the last received signal / Motor is free, servo does not hold any position.
Max. Duty: The amount of motor duty will be limited by this value - it limits the maximum power of the servo motor.
Pulse Lower (Min. pulse width): The lower limit of the control pulse width and the corresponding servo deflection will be limited by this value.
Neutral: Sets the width of the control pulses in the neutral/center position of the servo.
Pulse Upper (Max. pulse width): The upper limit of the width of the control pulses and the corresponding amount of servo deflection will be limited by this value.
