DB951WP HV Waterproof (38kg 0.10s)

The new DB series digital servos with AC motors combine the advantages of the existing "AC" HSB series with the control algorithms of the "DC" D series. The use of a top-notch AC motor with high efficiency not only guarantees noticeably lower current consumption compared to digital servos with DC motors. The novelty is the use of electronics with a 16-bit control processor, which allows extremely precise and fast control of servo movement with extremely high resolution - you can fully use the resolution offered by modern RC kits! Another nice feature is that the servo thrust does not depend (within the operating voltage range) on the servo supply voltage - whether you power the servo from a five-cell NiMH or a two-cell LiPo, the servo will have the same thrust (the speed will be higher at higher voltage - just like with "DC" servos).

The servo electronics are programmable, programming is done using the DPC-11 PC interface together with a convenient PC utility program, or a separate HFP-30 programmer, ideal for setting up in field conditions. Programmable functions:

• reset to factory default values
• deadband width (adjustable in 10 steps)
• direction of rotation
• rotation speed
• neutral
• soft start
• deflection size (up to 180° with a control signal with pulses of 0.9-2.1 ms width)
• enable or disable fail-safe
• fail-safe emergency deflection setting
• overload protection (power limitation 0-50% in case of overload)

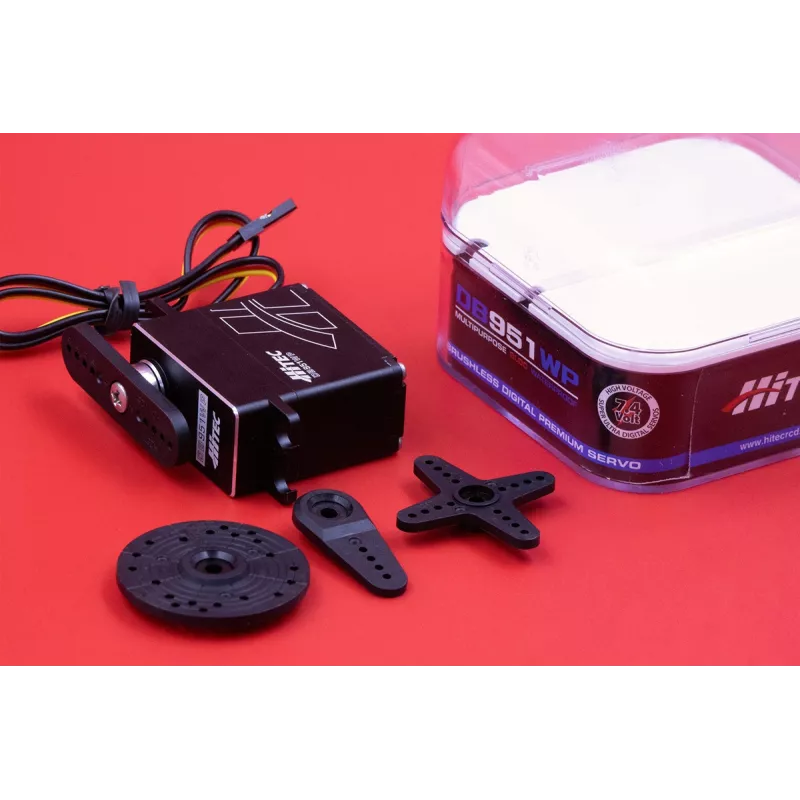

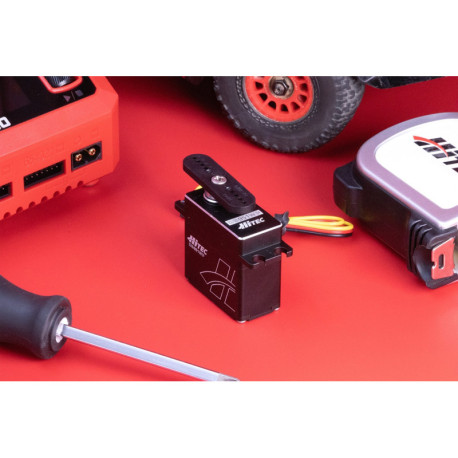

DB951WP
Super strong digital programmable servo in an all-metal box with a standard size AC motor with steel gears and an output shaft mounted in 2 ball bearings with increased supply voltage.

The servo is particularly suitable for large aircraft models, 1:10/1:8 RC cars, boats and other demanding applications with an emphasis on high thrust, high resolution, running accuracy, super fast response of the control electronics and high long-term durability. The powerful brushless motor with low current consumption guarantees optimal operating conditions even under heavy loads.

Thanks to the dustproof and waterproof housing (resistance according to International Protection Code IP-67 - completely prevents contact with dust, withstands immersion in water to a depth of 1 m for 30 minutes of test run), it is suitable for off-road car models, boats and submarines - simply for places exposed to dust and moisture, with high demands on the pulling force and overall mechanical resistance of the servo.

Thanks to the increased supply voltage (up to 7.4 V, 2s Li-Po/Li-Fe), it allows for very simple implementation of on-board electronics with 2.4GHz receivers when powered by a two-cell Li-Po or Li-Fe battery without the need for additional stabilizers or regulators.
