Servo Hitec Series D
The new Hitec D series digital servos combine ultra-responsive response, precision, and high-resolution 4096 steps of HS-8xxx Servers with HS-7xxx Servers. In fact, the existing servos far outweigh the 32-bit processor and the 12-bit ADC converter. In addition, they offer the "Wide Voltage" function, allowing the use of battery power in a wide range of rated voltages of 4.8 to 7.4 V.
32bit MCU / 12bit ADC
The new 32-bit Hitec processor coupled with a 12-bit analogue-to-digital converter that converts the signal from the feedback potentiometer offers the best response between servos for RC models so far. You can also use the universal PC interface DPC-11 (applicable to all Hitec programmable servos) to fine-tune your D-Series servo drives to maximum performance (scaling, resolution, fail-safe, soft start, etc.) in a wide range of applications.
Wide Voltage
Hitec's "Wide Voltage" technology supports all types of receiver batteries with a nominal voltage of 4.8-7.4 volts. This means that the servo can be powered directly, for example, by NiMH or NiCd batteries, two LiFe, LiPo or Li-ion batteries - Of course, it must be remembered that the thrust and speed of the servo depend on the size of the supply voltage.
Soft start
The soft start protects the servo and the rudder control mechanism when the onboard electronics is switched on - the servo slowly moves to the neutral position - no sudden jerking occurs.
Smart
New control algorithm to prevent spontaneous servicing of the servos at the "sharp" setting of the servo-insensitive bandwidth, saving gears and reducing current consumption.
Programmable features
With the new programmer / USB interface DPC-11, you can set a number of D servos for the servo to perfectly customize the servo of your application." Series D servos have a consistently high resolution; With the "EPA" function, you can set the servo deflection range up to 180 ° (with the control signal with 0.9-2.1 ms pulses). Programmable values \u200b\u200bare:

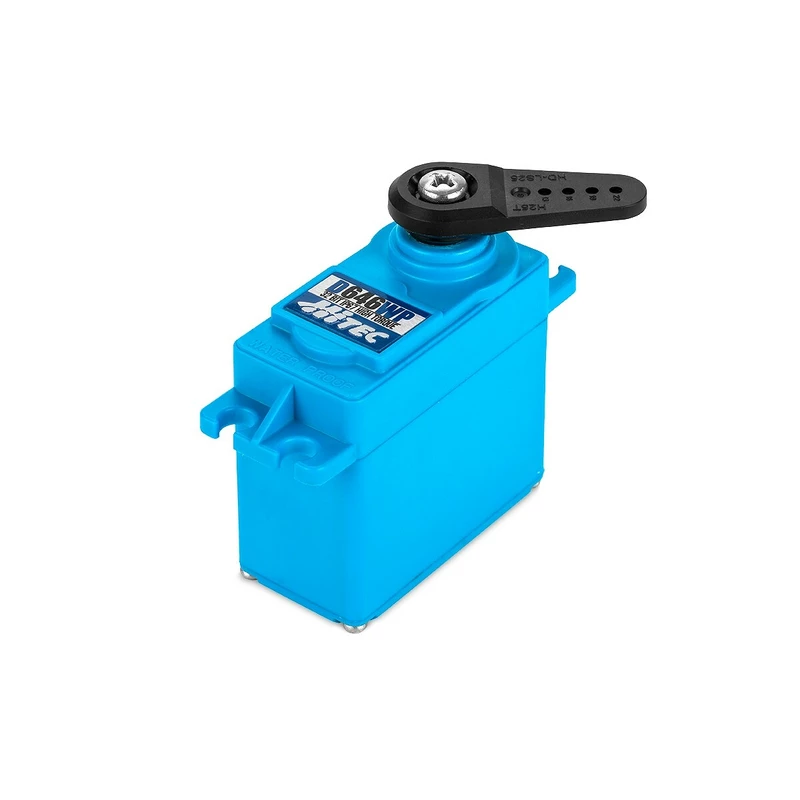

D646MW
Strong standard servo with metal gears with output shaft mounted on two ball bearings for use in RC models of all types. Thanks to the dustproof and waterproof housing (International Protection Code IP-67, it completely prevents dust contact and resists immersion in water up to a depth of 1 m for 30 minutes of test run) is particularly suitable for waterplane, off-road car models, boats and Submarines - just to places exposed to dust and moisture, high demands on pulling power and overall mechanical resistance of the servos.
It will replace HS-5646WP in the future.
| Servos size | Standard |
| Servo type | digital |
| Stroke at 4.8V [kg / cm] | 7.5 |
| Stroke at 6.0V [kg / cm] | 9.6 |
| Stroke at 7.4V [kg / cm] | 11.6 |
| Speed \u200b\u200bat 4.8V [s / 60h.] | 0.24 |
| Speed \u200b\u200bat 6.0V [s / 60h.] | 0.19 |
| Speed \u200b\u200bat 7.4V [s / 60h.] | 0.16 |
| Servo gears | Metal |
| Ball bearings | 2xBB |
| Highvoltage | Yes |
| Power [V] | 4.8 - 7.4 |
| Length [mm] | 41.8" |
| Width [mm] | 21 |
| Height [mm] | 40 |
| Weight [g] | 61 |
| Intended for | Airplanes, road cars, terrain cars, sailboats, boats |
| Number of teeth of the spindle | 25 |
| Resistance to water | Waterproof |
