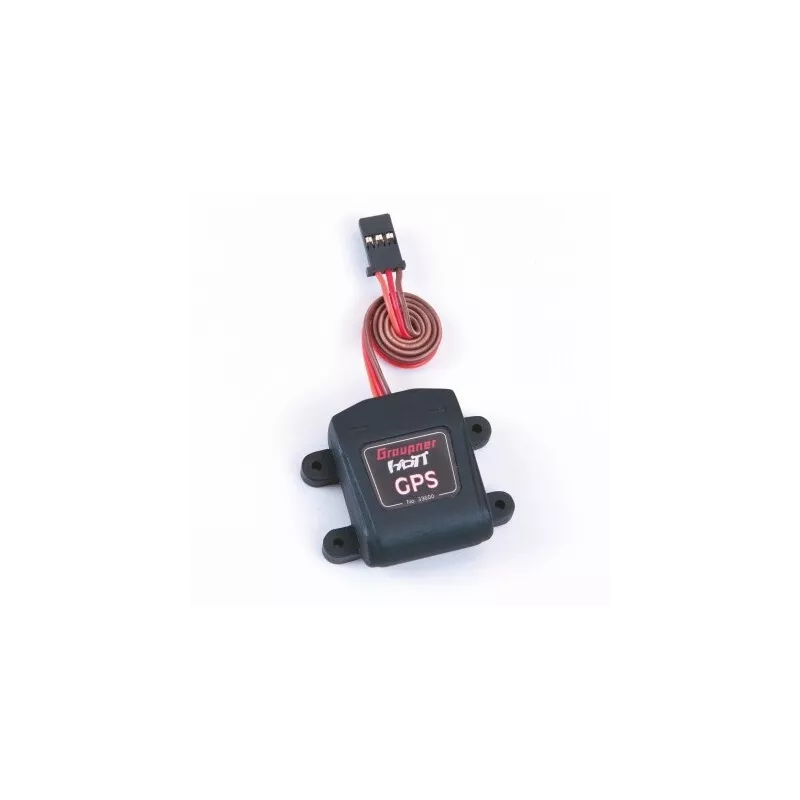

GPS/Vario ALPHA module HoTT (replacement for 33600)

GPS sensor providing information on course, speed, altitude, latitude and longitude, distance and trajectory. The module uses ultra-fast sensors so it is also suitable for use in Alpha racing docks.

• vario with altimeter signaling and signaling capability of 5 height points achieved when climbing / descending
• other alert signals to reach maximum and minimum altitude and descent and pitch in two stages
• display and store information about maximum and minimum altitudes
• GPS information about distance, course, speed, altitude, latitude and longitude, trajectory
• the time alert can be set to: OFF, 5, 10, 15, 20, 25, 30 sec, permanent warning
• Repeated time alert can be set to: standing, 1, 2, 3, 4, 5 minutes, once
• The GPS / Vario sensor can be connected directly to the telemetry input of the receiver (GR16, GR24, GR32). At the GR12 receiver, the module is connected to the channel output 5, which needs to be changed to telemetry.

Technical parameters:

• Range of measured height: -500m - 3000m
• Resolution: 0.1m
• Sensitivity vari: 0.5m / 3s, 1m / 3s, 0.5m / 1s, 1m / 1s, 1.3m / 1s
• Averaging: 4 - 40 measurements per programmable measured values
• Power consumption GPS + Vario: approx. 110 mA
• Dimensions: 38x45x16mm

• Never make any adjustments or adjustments during the model flight so that the model does not get out of control due to your inattention.
• In any case, do not perform the telemetry modeling and programming in flight if your model is equipped with two receivers. Program changes can affect the receiver without switched telemetry modules and this may cause loss of control over the model. <" / li>
