Axial RBX10 Ryft 4WD 1:10 RTR orange

RC transmitter Spectrum DX3 2.4GHz DSMR

The new RC transmitter Spektrum DX3 has 3 channels and is compatible with the Spektrum AVC stabilization system and Spektrum Smart telemetry. Excellent range, super fast response and high resistance to interference thanks to the exclusive Spektrum DSMR technology. Quick setting of required parameters.

• Thanks to Smart technology, the transmitter indicates the state of charge of the drive batteries in the model
• Support of the Spektrum AVC stabilization system
• Possibility of setting the reverse, the size of the deviations and the function of the 3rd channel
• Trim gas channel and control
• Thanks to the throttle limiter, you can limit the maximum speed of the model for children
• Ergonomic, lightweight
• Steering wheel with foam rim for a comfortable grip

AC regulator SPEKTRUM ™ COMPANY ™ 130A SMART 2S-4S

The model is controlled by a modern SPEKTRUM ™ FIRMA ™ 130A SMART controller with a 32-bit ARM Cortex M4 microcontroller, which is able to sense complete telemetry and transmit it to the receiver using an integrated wire in the new IC5 connector. Data is transmitted via the SRXL2 protocol. The controller reads information about the type, temperature and voltage of the battery cells directly from the Smart battery. Real-time current, temperature, total battery voltage, battery cell voltage, battery temperature, remaining capacity and motor speed are available.

The electronics are completely encapsulated in a special potting compound, which prevents the entry of moisture * or dirt into the electronics. The controller is switched on and set with the buttons under the rubber cover.

• The controller contains a fast and powerful 32-bit ARM M4 processor
• The regulator is waterproof *
• Overcurrent protection, thermal protection, failsafe
• Automatic disconnection of LiPol at low voltage
• Robust plastic housing, aluminum heatsink with fan for high efficiency
• Adjustable high-performance BEC
• Highly durable IC5 konektory connectors, compatible with EC5 ™ connectors

SR6100AT receiver

6-channel RC receiver Spektrum SR6100AT with DSM2 / DSMR modulation. It has excellent range and response, especially in places where there are multiple systems operating in the 2.4 GHz band. The receiver is equipped with a patented Spektrum AVC (Active Vehicle Control) system and a full telemetry range. The receiver supports Spektrum Smart technology. The electronics of the receiver are protected by a special varnish, which prevents the access of moisture or dirt.

Active Vehicle Control (AVC) technology

AVC technology is an advanced Spectrum technology from Horizon Hobby, for RC car models. This stabilization system brings a completely new way of driving RC cars. AVC technology uses sensors to control steering and gas at the same time. Thanks to appropriate interventions in the steering and engine power, the result is a smoother ride, stable behavior on level ground and in corners and safer tracking. Of course, the variable sensitivity of the steering, including the possibility of turning it off and leaving everything in the rider's hands.

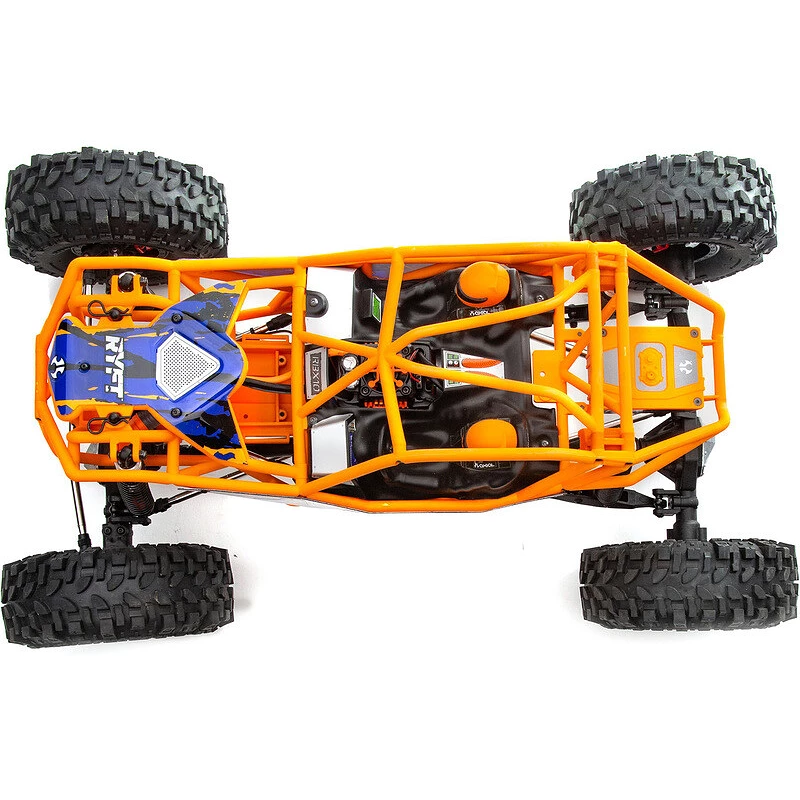

Body frame construction

Axial® RBX10 ™ Ryft ™ has been designed with the high strength of the composite frame structure of the tubular body frame in mind. Proven high-strength composite plastic is designed to withstand the hard impact of jumping.

Rigid front and rear axle

The 4WD Ryft is designed to handle high stresses on demanding off-road tracks - as evidenced by durable one-piece molded plastic, solid front and rear axle construction and a metal differential cover.

4-point suspension

The 4-point suspension geometry uses a four-link drawbar design that is optimized to reduce front-axle steering forces and ensure proper acceleration, braking and tilting properties.

Realistic cockpit with crew

The great atmosphere when driving with a lighted car is underlined by the cockpit, which is equipped with rugurky riders.

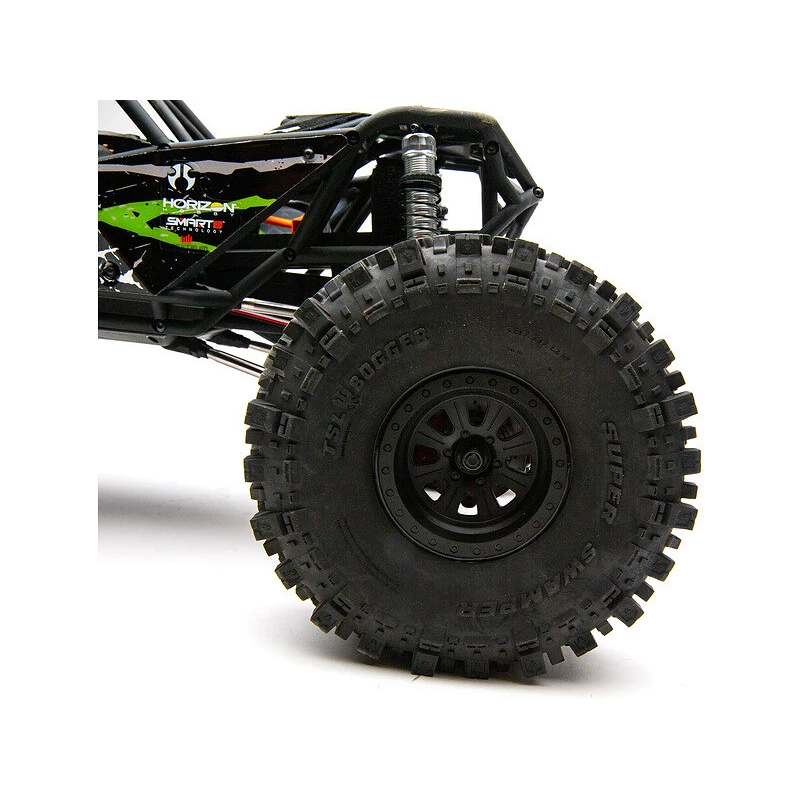

Long stroke shock absorbers

It is impossible to imagine a terrain special without reliable and high-quality shock absorbers, Ryft has aluminum oil adjustable shock absorbers with a long stroke, the length of the front shock absorber is 130 mm, the rear 145 mm.

Battery space

To replace the battery, remove the two wire clips and open the cover over the front axle.
