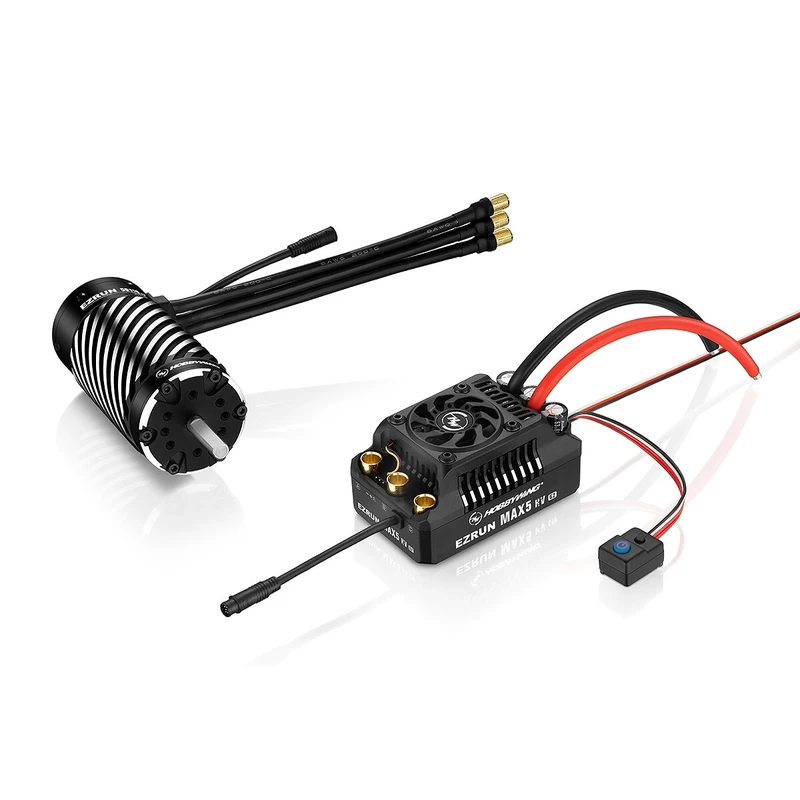

COMBO MAX5 HV G2 with EZRUN 56118SD 650Kv - black
HW38010603
HOBBYWING car
Combo of EZRUN MAX5 HV G2 AC controller and EZRUN 56113SD G2 650KV sensor motor. Ideal for 1:5 off-road vehicles powered by 8-12S LiPo.
Express delivery
Large selection of carriers
Satisfaction guarantee
The EZRUN MAX5 HV G2 250A ESC offers everything you need to fully exploit the potential of your 1:5 off-road RC car with a brushless motor - whether it's a buggy or a truck. It allows the use of a brushless motor with sensors (sensored) or without sensors (sensorless) and offers a wide range of 12 programmable parameters (including Turbo Timing) for perfect adaptation of the motor, chassis and track. So, if you take driving your pumped-up "fifth" seriously, the EZRUN MAX5 HV G2 ESC from Hobbywing is the right one for you!
Function
- Specially developed for 1:5 RC cars: off road buggies and trucks powered by 8-12 S LiPo
- For motors size 56118 with and without sensors (8S LiPo motor limit: KV?1200, 12S LiPo: ?800 for motor size 56118)
- Compact dimensions, low weight, patented cooling system with high efficiency
- Waterproof and dustproof design, waterproof sensor cable
- Ideal in combination with Hobbywing EZRUN 56118SD G2 motors
- 12 programmable parameters including Turbo timing (up to 32°) increasing performance by up to 25%
- Powerful switching BEC stabilizer up to 8 A with selectable voltage of 6.0 V, 7.4 V or 8.4 V
- Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
- Possibility of programming using the LED programming box, the multifunctional LCD programming box V2 (separately or with a PC program) or the Bluetooth OTA module (with a mobile application)
- Firmware updatable using the multifunction LCD programming box V2 or Bluetooth OTA module (sold separately)
- In combination with Hobbywing EZRUN 56118SD G2 motors, it offers motor thermal protection.
Programmable parameters
- General: Driving mode, Number of LiPo cells, Voltage protection, BEC voltage, Motor rotation direction
- Throttle control: Initial throttle value, Start-up, Max. power reverse
- Brake control: Resistance brake intensity, Max. braking effect
- Timing: Turbo Timing, Delayed Turbo Timing
The controller set includes: EZRUN MAX5 HV G2 controller with cables, operating instructions.
| Use | Car |
| Type | Alternate |
| Continuous current [A] | 250 |
| Max. peak current [A] | 1600 |
| Li-Po [cell] | 6 - 12 |
| BEC voltage [V] | 6 - 8.4 |
| BEC current (max.) [A] | 8 |
| Length [mm] | 94.5 |
| Width [mm] | 59.4 |
| Height [mm] | 50.9 |
| Weight [g] | 428.5 |
| Regulation | Two-way |
| Sensor input | Yes |
| Programmable | Yes |
| Water resistance | Waterproof |
| Engine type | Alternate |
| Revolutions per volt [rpm/V] | 800 |
| Li-Po [cell] | 8 - 12 |
| No-load current [A] | 5.5 |
| Number of poles | 4 |
| Diameter [mm] | 56 |
| Motor housing length [mm] | 119.2 |
| Shaft diameter [mm] | 8 |
| Free shaft length [mm] | 30 |
| Weight [g] | 1272 |
| Timing [°] | 0 |
| Hall probe | Yes |
- Použití
- Auto
- Typ
- Střídavý
- Počet pólů
- 4
- Vstup pro senzory
- ANO
- Typ motoru
- Střídavý
- Programovatelný
- Ano
- Délka [mm]
- 94.5
- Hmotnost [g]
- 1272
- Li-Po [čl.]
- 8 - 12
- Šířka [mm]
- 59.4
- Výška [mm]
- 50.9
- Trvalý proud [A]
- 250
- Max. špičkový proud [A]
- 1600
- BEC napětí [V]
- 6 - 8.4
- Regulace
- Obousměrná
- Průměr [mm]
- 56
- Otáčky na volt [ot./min/V]
- 800
- Proud naprázdno [A]
- 5.5
- Průměr hřídele [mm]
- 8
- Odolnost vůči vodě
- Vodovzdorný
- BEC proud (max.) [A]
- 8
- Délka skříně motoru [mm]
- 119.2
- Délka volné hřídele [mm]
- 30
- Hallova sonda
- Ano
